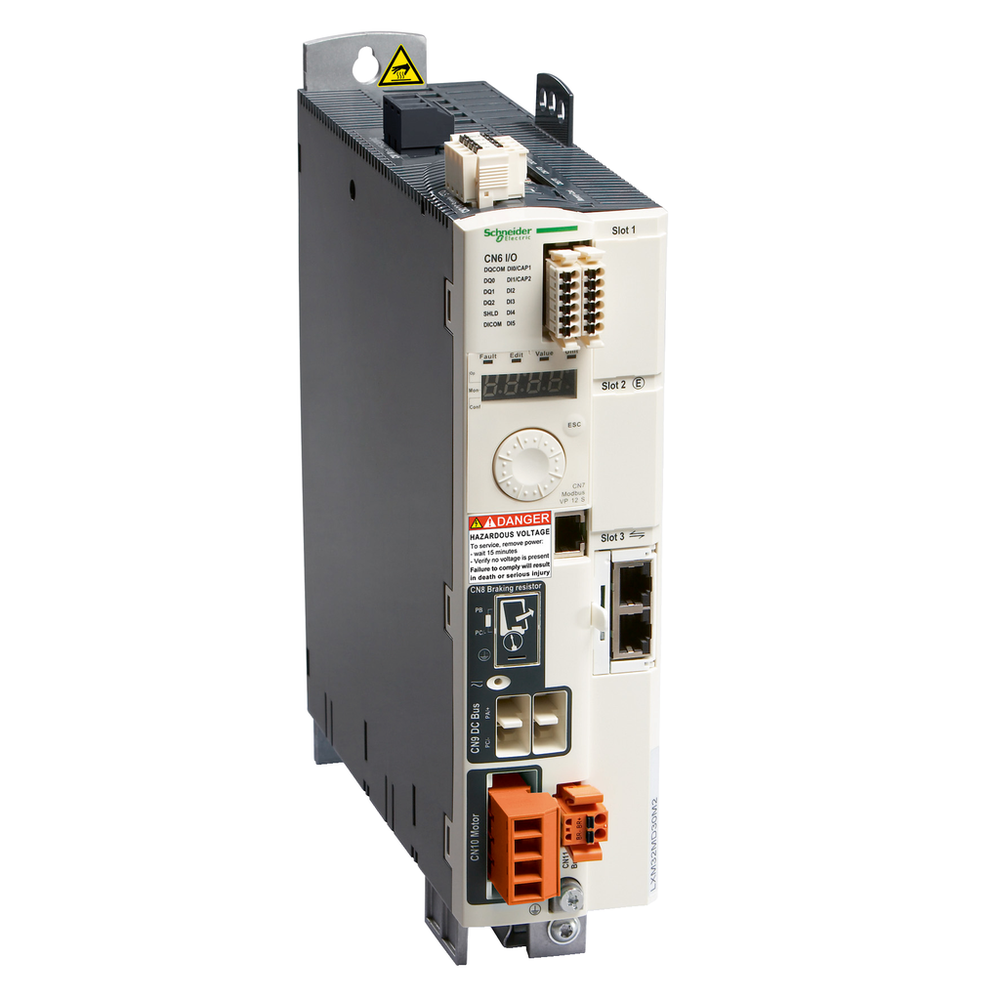

Schneider Electric LXM32SD18M2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 6A at 8kHz and a continuous power of 500W at 115V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus and SERCOS III integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.9kg. This product is certified by CE and CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.motion servo drive, Lexium 32, 3A, single phase, supply voltage 115 to 230V, 0.5 to 1kW
Schneider Electric LXM32SD18M2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Braking Current
- 50 mA
- Communication Interface
- Modbus, Integrated || SERCOS III, Integrated
- Connector Type
- RJ45 (labelled CN7) Modbus
- Contact Bounce Time
- <= 1 ms compliment of STO_A, compliment of STO_B
- Depth
- 237 mm
- Discrete Input Logic
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1
- Discrete Input Number
- 2 capture
- Discrete Input Type
- capture CAP
- Discrete Input Voltage
- 24 V DC capture
- Discrete Output Logic
- positive or negative DO)EN/IEC 61131-2
- Discrete Output Number
- 3
- Discrete Output Type
- logic DO)24 V DC
- Discrete Output Voltage
- <= 30 V DC
- Electrical Connection
- terminal 3 mm², AWG 12 PA/+, PBI, PBe)
- Electrical Isolation
- between power and control
- Height
- 270 mm
- Marking
- CE
- Maximum Leakage Current
- 30 mA
- Net Weight
- 1.9 kg
- Number Of Addresses
- 1-247 Modbus
- Operating Position
- vertical +/- 10 degree
- Output Voltage
- <= power supply voltage
- Overvoltage Category
- III
- Physical Interface
- 2-wire RS485 multidrop Modbus
- Product Compatibility
- servo motor BMH 70 mm, 1
- Response Time
- <= 5 ms compliment of STO_A, compliment of STO_B
- Response Time On Output
- 250 µs DO)discrete
- Safety Function
- STO (safe torque off), Integrated
- Safety Level
- SIL 3 EN/IEC 61508
- Sampling Duration
- 0.25 ms
- Signalling Function
- display of faults 7 segments
- Status Led
- 1 LED (Red) servo drive voltage
- Switching Frequency
- 8 kHz
- Tightening Torque
- PA/+, PBI, PBe 0.5-0.5 N.m
- Transmission Rate
- 9600, 19200, 38400 bps 40-40 m Modbus
- Type Of Cable
- single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
- Width
- 68 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C UL
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- conducted EMC EN 55011 class A group 1
- Environmental Characteristic
- classes 3C1 IEC 60721-3-3
- Ip Degree Of Protection
- IP20 EN/IEC 60529
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating
- Pollution Degree
- 2 EN/IEC 61800-5-1
- Product Certifications
- CSA
- Relative Humidity
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Shock Resistance
- 15 gn 11 ms EN/IEC 60028-2-27
- Standards
- EN/IEC 61800-3
- Type Of Cooling
- integrated fan
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI110605EN
- Environmental Disclosure
- ENVPEP110705EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Output Current
- 6 A 8 kHz
- Continuous Power
- 500 W 115 V
- Device Short Name
- LXM32S
- Emc Filter
- integrated
- Format Of The Drive
- book
- Line Current
- 9.9 A 74 % 115 V, with external line choke 2 mH || 10.6 A 93 % 230 V, with external line choke 2 mH || 8.5 A 147 % 115 V, without line choke
- Network Frequency
- 47.5...63 Hz
- Nominal Power
- 0.5 kW 115 V 8 kHz || 1 kW 230 V
- Output Current 3S Peak
- 10 A 115 V 5 s
- Phase
- single phase
- Product Or Component Type
- motion servo drive
- Range Of Product
- Lexium 32
- Supply Frequency
- 50/60 Hz - 5...5 %
- Supply Voltage Limits
- 85-132 V || 170-264 V
- [Us] Rated Supply Voltage
- 100...120 V - 15...10 % || 200...240 V - 15...10 %
