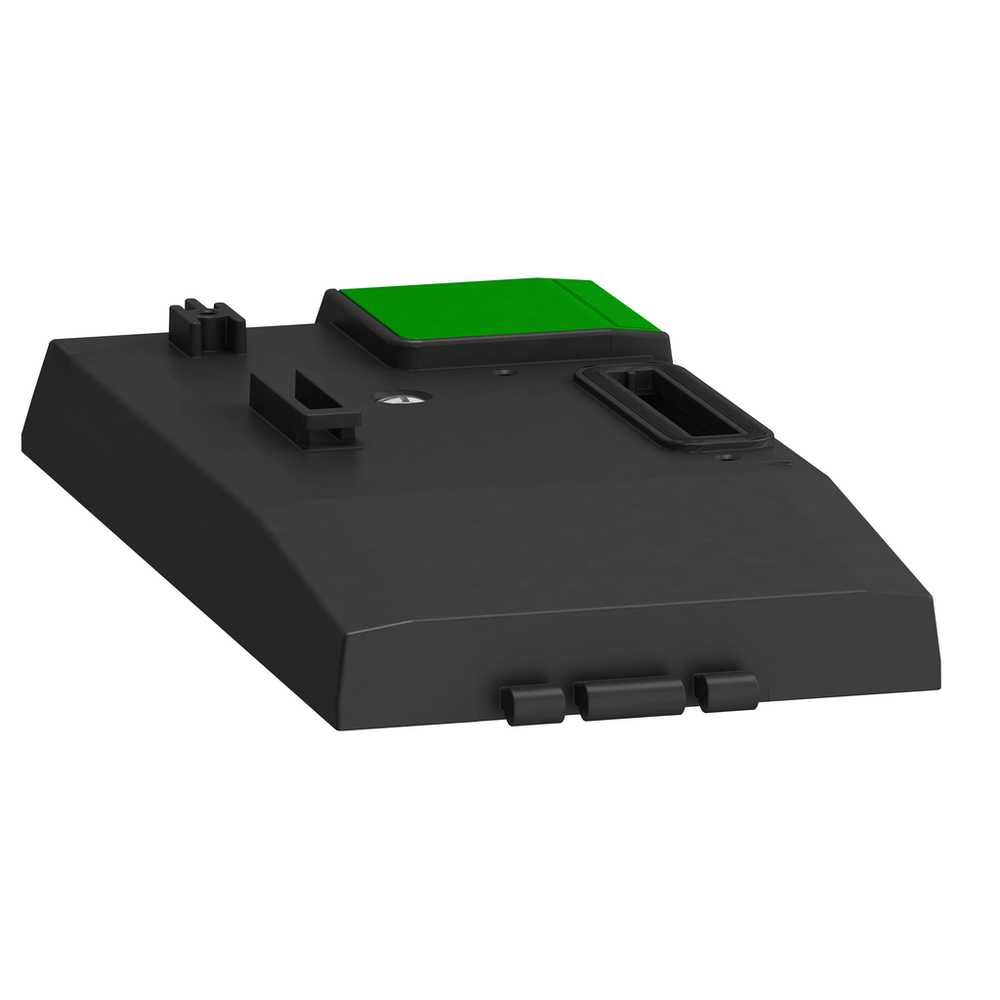

Schneider Electric LXM32IECT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with RJ45 connectors for Modbus, M12 for EtherCAT. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.637kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.Control unit, Lexium 32i, LXM32i, EtherCAT
Schneider Electric LXM32IECT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Braking Current
- 50 mA
- Communication Interface
- EtherCAT, Integrated
- Connector Type
- RJ45 Modbus || M12 EtherCAT
- Contact Bounce Time
- <= 1 ms compliment of STO_A, compliment of STO_B || 0.25 µs...1.5 ms DI
- Control Signal Type
- servo motor encoder feedback
- Discrete Input Logic
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Discrete Input Voltage
- 24 V DC capture || 24 V DC logic || 24 V DC safety
- Discrete Output Logic
- positive or negative DO)EN/IEC 61131-2
- Discrete Output Number
- 2
- Discrete Output Type
- logic DO)24 V DC
- Discrete Output Voltage
- <= 30 V DC
- Electromagnetic Compatibility
- conducted EMC EN 55011 class A group 1 || radiated EMC EN 55011 class A group 2 || radiated EMC IEC/EN 61800-3 category C3 || conducted EMC EN 55011 class A group 2 || conducted EMC EN/IEC 61800-3 environment 2 category C3 || conducted EMC IEC/EN 61800-3 category C2 || EMC immunity IEC/EN 61800-3 environments 1 and 2 || EMC immunity level 3 EN/IEC 61000-4-2 || EMC immunity level 3 EN/IEC 61000-4-3 || EMC immunity level 3 EN/IEC 61000-4-5 || EMC immunity level 4 EN/IEC 61000-4-4
- Method Of Access
- slave
- Net Weight
- 0.637 kg
- Number Of Addresses
- 1-127 CANopen, CANmotion || 1-247 Modbus
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- Operating Position
- vertical +/- 10 degree
- Physical Interface
- 2-wire RS485 multidrop Modbus
- Protection Type
- against reverse polarity inputs signal || against short-circuits outputs signal
- Response Time
- <= 5 ms compliment of STO_A, compliment of STO_B
- Response Time On Output
- 250 µs DO)discrete
- Safety Function
- safe torque off safety function, Integrated
- Safety Level
- SIL 3 EN/IEC 61508 || PL = e ISO 13849-1
- Sampling Duration
- DI 0.25 ms discrete
- Status Led
- 1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN
- Transmission Rate
- 9600, 19200, 38400 bps 0-40 m Modbus
- Type Of Cooling
- natural convection
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C UL
- Ambient Air Temperature For Storage
- -25-70 °C
- Environmental Characteristic
- classes 3C1 IEC 60721-3-3
- Ip Degree Of Protection
- IP65
- Marking
- CE
- Pollution Degree
- 2 EN/IEC 61800-5-1
- Product Certifications
- TÜV || CSA || UL
- Relative Humidity
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Shock Resistance
- 15 gn 11 ms EN/IEC 60028-2-27
- Standards
- EN/IEC 61800-3 || EN/IEC 61800-5-1
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Specifications
- Device Short Name
- LXM32i
- Discrete Input Number
- 2 safety || 4 logic
- Discrete Input Type
- safety compliment of STO_A, compliment of STO_B || logic DI
- Format Of The Drive
- board
- Product Or Component Type
- control unit
- Range Of Product
- Lexium 32i
