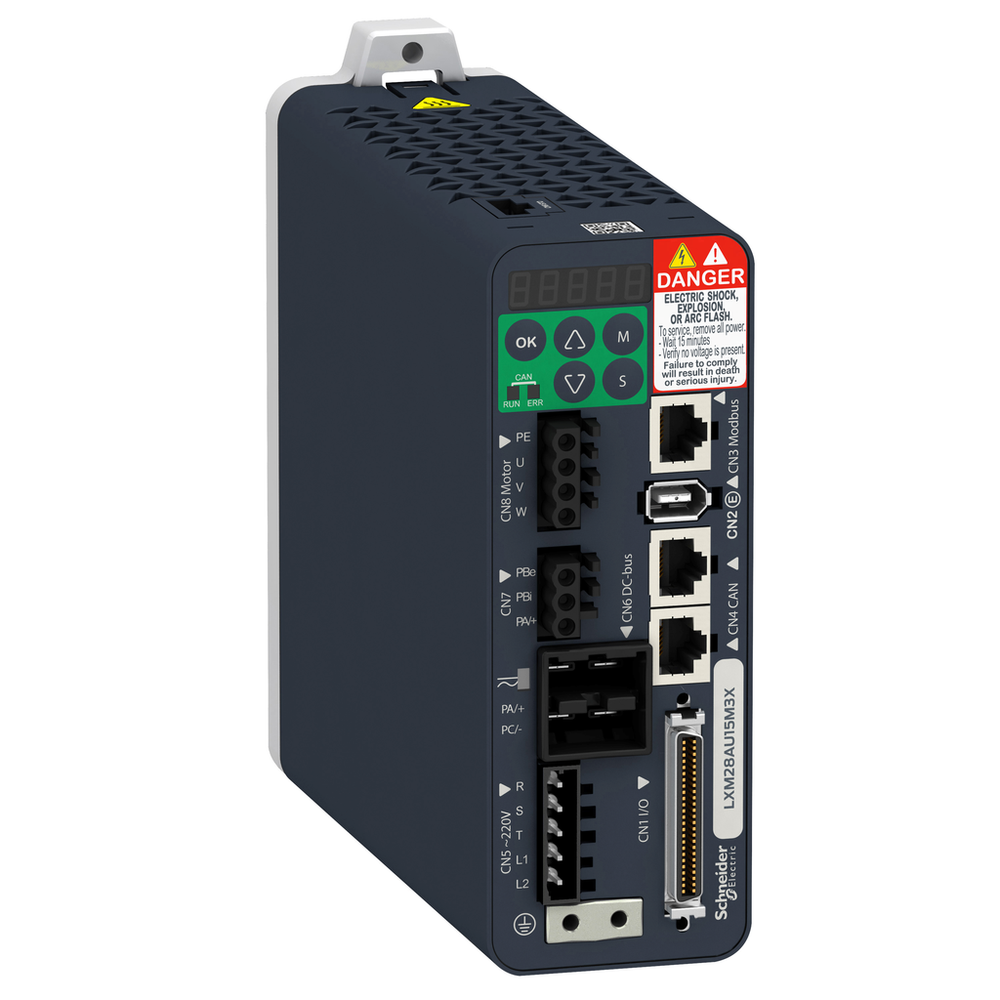

Schneider Electric LXM28AU15M3X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 7A, nominal power of 1.5kW and continuous power of 1500W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 170mm (depth) x 150mm (height). It weighs 1.2kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 3 motor stacks) at 1500W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.motion servo drive, Lexium 28, single and three phase, 200 to 240V, 1.5kW
Schneider Electric LXM28AU15M3X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- 0.1 %
- Analogue Input Number
- 2
- Analogue Input Type
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
- Communication Interface
- CANopen, Integrated || CANmotion, Integrated
- Connector Type
- RJ45 CN4)CANopen, CANmotion
- Continuous Output Current
- 7 A 16 kHz
- Continuous Power
- 1500 W 220 V
- Control Signal Type
- servo motor encoder feedback CN2
- Depth
- 170 mm
- Discrete Input Logic
- positive or negative CN1)
- Discrete Input Number
- 8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
- Discrete Input Voltage
- 24 V DC logic
- Discrete Output Logic
- positive or negative CN1)
- Discrete Output Number
- 5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
- Discrete Output Voltage
- 12...24 V DC
- Electrical Connection
- spring terminal 1.3...1.5 mm², AWG 16 L1-L2) || spring terminal 1.3...1.5 mm², AWG 16 R, S, T) || spring terminal 1.3...1.5 mm², AWG 16 U, V, W, PE) || spring terminal 1.3...1.5 mm², AWG 16 PA/+, PBe)
- Electrical Isolation
- between power and control
- Emc Filter
- without EMC filter
- Height
- 150 mm
- Marking
- cULus || CSA || CE
- Maximum Leakage Current
- 4.5 mA
- Method Of Access
- slave
- Net Weight
- 1.2 kg
- Network Frequency
- 47.5...63 Hz
- Nominal Power
- 1.5 kW 220 V 16 kHz
- Number Of Addresses
- 1-127 CANopen, CANmotion
- Operating Position
- vertical
- Output Current 3S Peak
- 21 A 220 V
- Output Current 3S Peak 2
- 21 A 220 V
- Output Current 3S Peak 3
- 21 A 220 V
- Output Voltage
- <= power supply voltage
- Overvoltage Category
- III
- Phase
- three phase || single phase
- Physical Interface
- RS485 Modbus Serial line slave
- Product Compatibility
- servo motor BCH2 130 mm, 3 1500 W
- Protection Type
- against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
- Safety Function
- STO (safe torque off), Integrated
- Safety Level
- SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 EN/ISO 13849-1 2008 || SIL 2 EN/ISO 13849-1 2009/AC || SIL 2 EN 60204-1 2006 || SIL 2 EN 60204-1 2009/A1 || SIL 2 EN 60204-1 2010/AC || SIL 2 IEC 62061 2012
- Signalling Function
- servo status and fault codes five 7-segment display units
- Status Led
- 1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
- Supply Frequency
- 50/60 Hz - 5...5 %
- Supply Voltage Limits
- 200-255 V three phase || 170-255 V single phase
- Switching Frequency
- 16 kHz
- Transmission Rate
- 250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Type Of Cooling
- integrated fan
- [Us] Rated Supply Voltage
- 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
- Width
- 55 mm
Environment
- Ambient Air Temperature For Operation
- 0-55 °C
- Ambient Air Temperature For Storage
- -25-65 °C
- Electromagnetic Compatibility
- conducted emission - test level: level 3 category C3 conforming to EN/IEC 61800-3
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
- Product Certifications
- CSA || cULus || CE
- Relative Humidity
- 5-95 % without condensation
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Standards
- EN/IEC 61800-5-1
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409001EN
- Environmental Disclosure
- ENVPEP1409001EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LXM28A
- Format Of The Drive
- compact housing
- Line Current
- 10 A 166.6 % 220 V, single phase || 10 A 144.8 % 220 V, three phase
- Product Or Component Type
- motion servo drive
- Range Of Product
- Lexium 28
