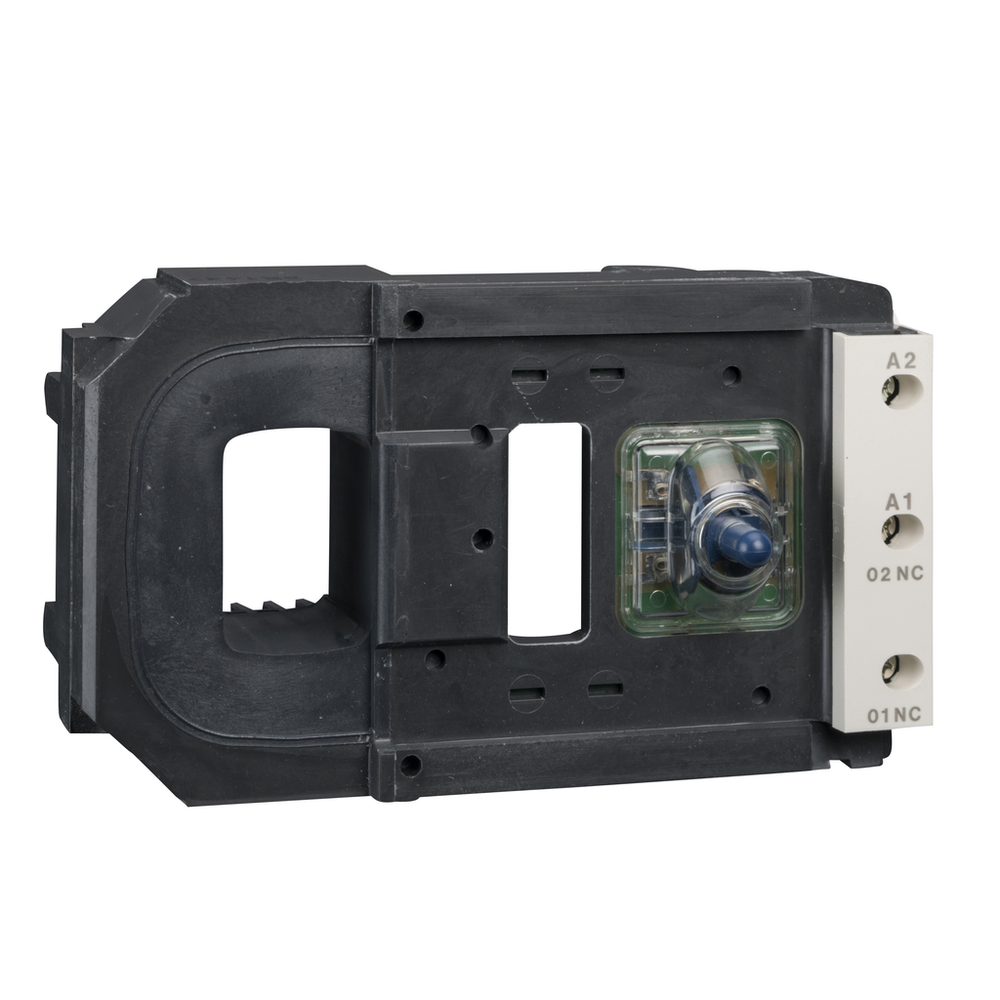

Schneider Electric LX9FK925
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys F AC coil 110V 40-400Hz (voltage code F7), low inrush consumption, short operating times, for TeSys F 3-pole and 4-pole contactors LC1 F500, FG500. To be associated with a rectifier DR5TF4U (to be ordered separately). It operates in the voltage limits 0.85-1.1 Uc and environments until 70°C. It provides to the contactor high operating rates until 3600 cycles/hour. Green Premium compliant (RoHS/REACh).TeSys F - specific contactor coil - 110 V AC 40...400 Hz low consumption
Schneider Electric LX9FK925 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Coil Technology
- without built-in suppressor module
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C) || drop-out 0.3...0.5 Uc 55 °C)
- Heat Dissipation
- 15-18.3 W
- Hold-In Power Consumption In Va
- 31-31 VA 40...400 Hz 20 °C)
- Inrush Power In Va
- 550-550 VA 40...400 Hz 20 °C)
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
- Net Weight
- 1.08 kg
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111214EN_V1
- Environmental Disclosure
- ENVPEP111201EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Average Resistance
- 24 Ohm inrush 20 °C || 204 Ohm holding 20 °C
- Control Circuit Type
- AC 40...400 Hz low consumption || DC low consumption
- Device Short Name
- LX9FK
- Inductance Of Closed Circuit
- 1.1 H
- Maximum Operating Rate
- 3600 cyc/h 70 °C
- Mechanical Durability
- 10 Mcycles
- Operating Time
- 60 ms opening || 50 ms closing
- Product Compatibility
- LC1F500 || DR5TE
- Product Or Component Type
- specific contactor coil
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys F) LC1F contactor || TeSys (TeSys F) DR5TE rectifier
- [Uc] Control Circuit Voltage
- 110 V AC 40...400 Hz || 110 V DC
