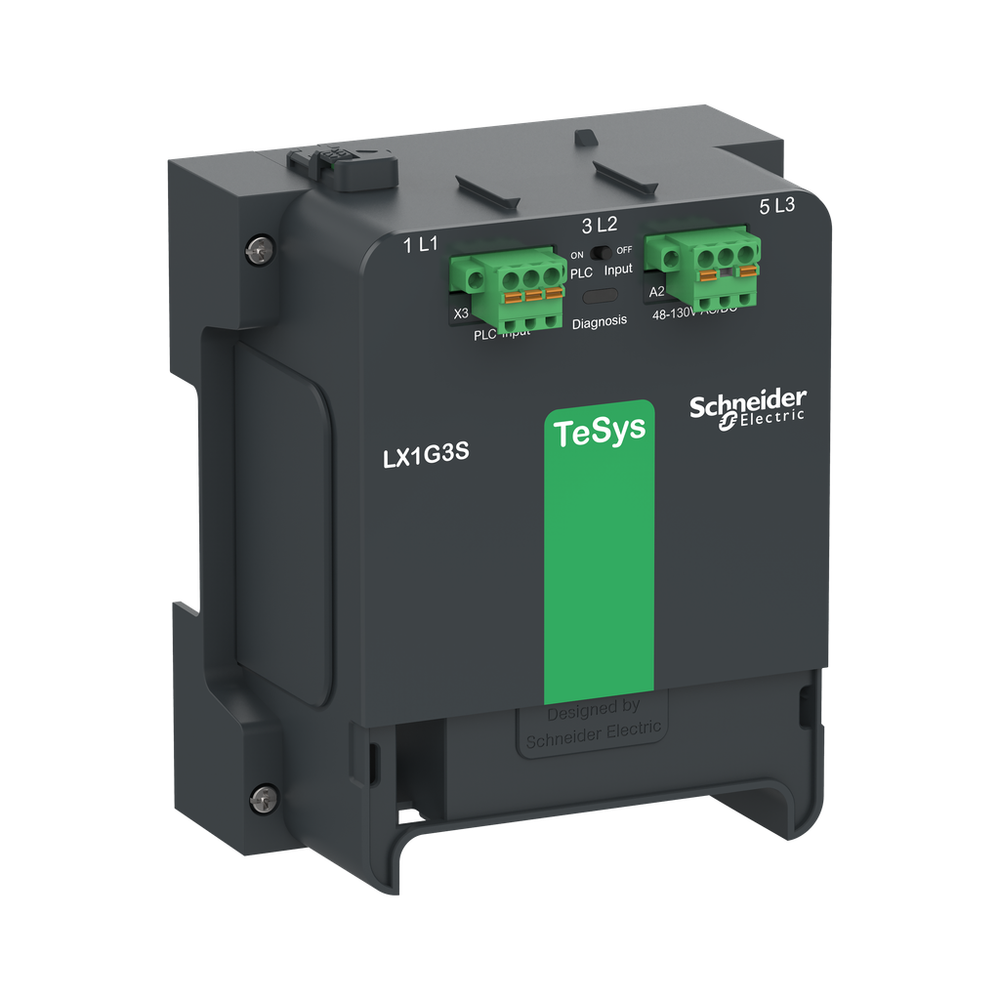

Schneider Electric LX1G3SEHEA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
It is a 48-130V AC/DC control module for 3 poles TeSys Giga 400-500 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.Control module, LX1G, TeSys Giga, advanced contactor, 48-130VAC/DC, for LC1G400-500, 3 pole
Schneider Electric LX1G3SEHEA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Coil Technology
- built-in bidirectional peak limiting
- Connections - Terminals
- control circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12 || control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14 || control circuit push-in termination 2 0.5-1.0 mm² rigid or stranded with cable end sleeve AWG 20...AWG 18
- Control Circuit Voltage Limits
- operational 0.8...1.1 Uc 60 °C) || drop-out 0...0.45 Uc 60 °C)
- Hold-In Power Consumption In Va
- 10.1-10.1 VA 120 V AC, 60 Hz
- Hold-In Power Consumption In W
- 5.3-5.3 W DC
- Inrush Power In Va
- 380-380 VA 120 V AC, 60 Hz
- Inrush Power In W
- 295.0 W DC
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Depth
- 93.0 mm
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity test conforming to SEMI F47
- Height
- 167.0 mm
- Ip Degree Of Protection
- IP20 IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m) without derating || 5000 m with derating factor
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
- Pollution Degree
- 3 IEC 60947-1
- Quantity Per Set
- 1
- Standards
- EN/IEC 60947-4-1 || UL 60947-4-1A || CSA C22.2 No 60947-4-1
- Width
- 140.0 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105013
- Environmental Disclosure
- ENVPEP2105013
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- LX1G
- Maximum Operating Rate
- 600 cyc/mn 60 °C
- Mechanical Durability
- 5 Mcycles
- Operating Time
- 20...35 ms opening || 40...55 ms closing
- Poles Description
- 3P
- Product Compatibility
- LC1G400...500
- Product Or Component Type
- contactor coil
- Range
- TeSys
- Range Compatibility
- TeSys G LX1G contactor coil
- [Uc] Control Circuit Voltage
- 48...130 V AC/DC 50/60 Hz
