Description

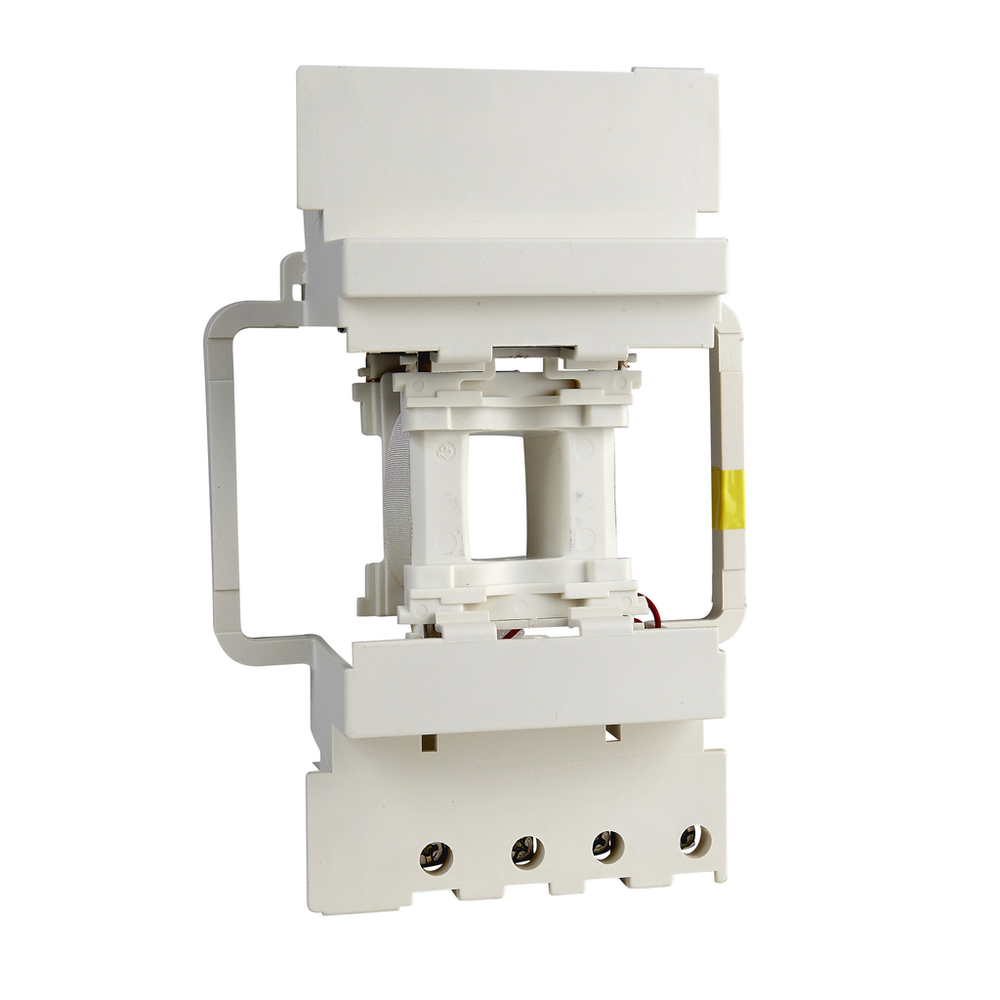

Contactor coil, TeSys Deca, LX1D8, 120V AC 50/60Hz for 115 and 150A contactor
Schneider Electric LX1D8G7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Coil Technology
- without built-in suppressor module
- Control Circuit Voltage Limits
- drop-out 0.3...0.5 Uc 50/60 Hz 55 °C) || operational 0.8...1.15 Uc 50/60 Hz 55 °C)
- Heat Dissipation
- 3-4.5 W 50/60 Hz
- Hold-In Power Consumption In Va
- 2-18 VA 60 Hz 0.9 20 °C) || 2-18 VA 50 Hz 0.9 20 °C)
- Inrush Power In Va
- 280-350 VA 60 Hz 0.9 20 °C) || 280-350 VA 50 Hz 0.9 20 °C)
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110205EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Average Resistance
- 4377 Ohm 20 °C
- Control Circuit Type
- AC 50/60 Hz
- Device Short Name
- LX1D8
- Inductance Of Closed Circuit
- 109.69 H
- Maximum Operating Rate
- 1200 cyc/h 60 °C
- Mechanical Durability
- 8 Mcycles
- Product Compatibility
- LC1D150 || LC1D115
- Product Or Component Type
- contactor coil
- Range
- TeSys
- [Uc] Control Circuit Voltage
- 120 V AC 50/60 Hz
