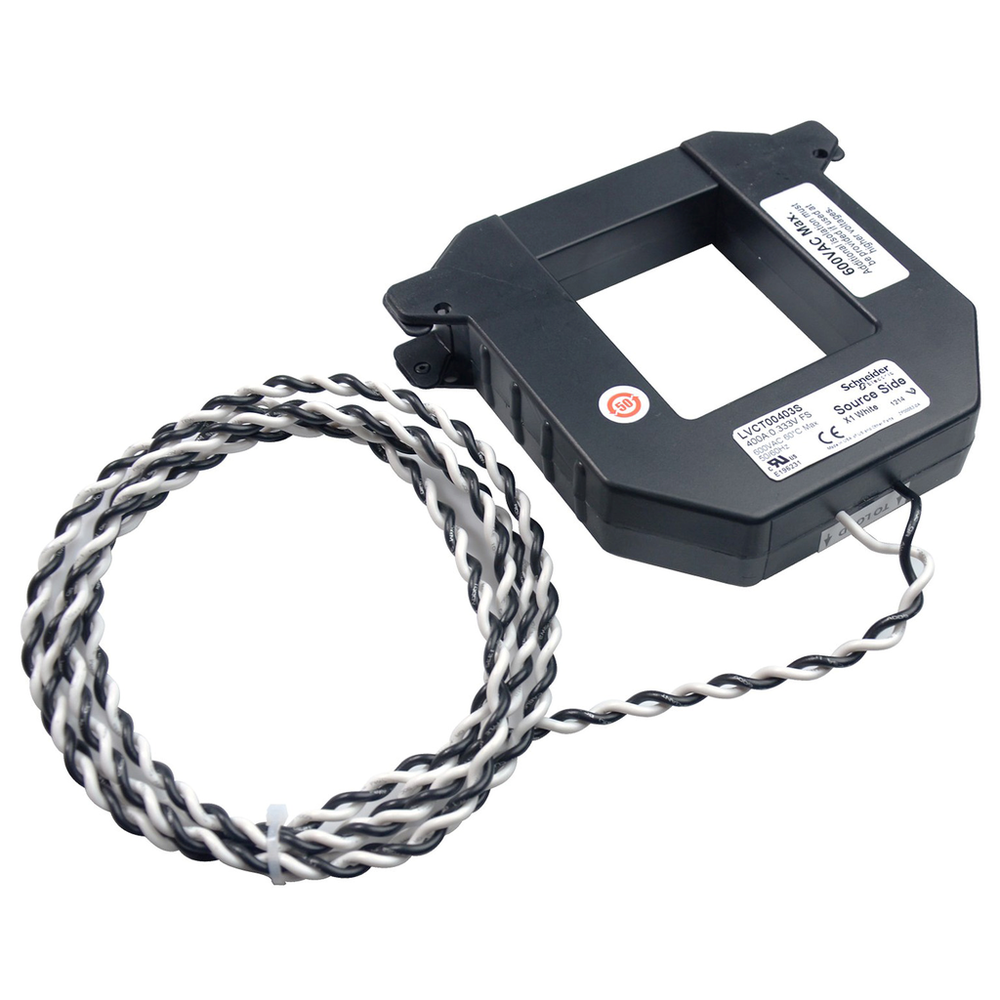

Schneider Electric LVCT00803S
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 800A circuit. 0.333 V output, size 3. Split core opening is 62 mm x 132 mm.LV CT 800 A - 0.333 V output - split core CT - 62 mm x 132 mm
Schneider Electric LVCT00803S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Measurement Accuracy
- 1 % 10...100 %
- Range Compatibility
- PowerLogic (PowerLogic BCPM) BCPMA multi-circuit energy meter || PowerLogic (PowerLogic BCPM) BCPMB multi-circuit energy meter || PowerLogic (PowerLogic BCPM) BCPME multi-circuit energy meter || PowerLogic (PowerLogic BCPMSC) BCPMSCA multi-circuit energy meter || PowerLogic (PowerLogic BCPMSC) BCPMSCB multi-circuit energy meter || PowerLogic (PowerLogic BCPMSC) BCPMSCE multi-circuit energy meter || PowerLogic (PowerLogic EM3500) EM3502 energy meter || PowerLogic (PowerLogic EM3500) EM3550 energy meter || PowerLogic (PowerLogic EM3500) EM3555 energy meter || PowerLogic (PowerLogic EM3500) EM3560 energy meter || PowerLogic (PowerLogic EM3500) EM3561 energy meter || PowerLogic (PowerLogic EM4200) EM4235 energy meter || PowerLogic (PowerLogic EM4200) EM4236 energy meter || PowerLogic (PowerLogic EM4900) EM4904 multi-circuit energy meter || PowerLogic (PowerLogic EM4900) EM4908 multi-circuit energy meter || PowerLogic (PowerLogic EM4900) EM4914 multi-circuit energy meter || PowerLogic (PowerLogic EM4900) EM4928 multi-circuit energy meter || Acti 9 (Acti9 iEM3000) iEM3455 energy meter || Acti 9 (Acti9 iEM3000) iEM3465 energy meter
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -15-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Depth
- 30 mm
- Height
- internal 73 mm || external 132 mm
- Net Weight
- 0.58 kg
- Relative Humidity
- 95-95 %
- Width
- internal 62 mm || external 151 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Accessory / Separate Part Category
- measurement accessory
- Current Transformer Type
- split core balance
- Device Short Name
- LVCT
- Electrical Connection
- cable 1.8 m AWG 18) 600 V
- Line Rated Current
- 800 A
- Network Frequency
- 50/60 Hz
- Output Voltage
- 0.333 V
- Product Destination
- BCPM || BCPMSC || Enercept || iEM3000 || EM3500 || EM4200 || EM4900
- Product Or Component Type
- current transformer
- Range
- PowerLogic
