Description

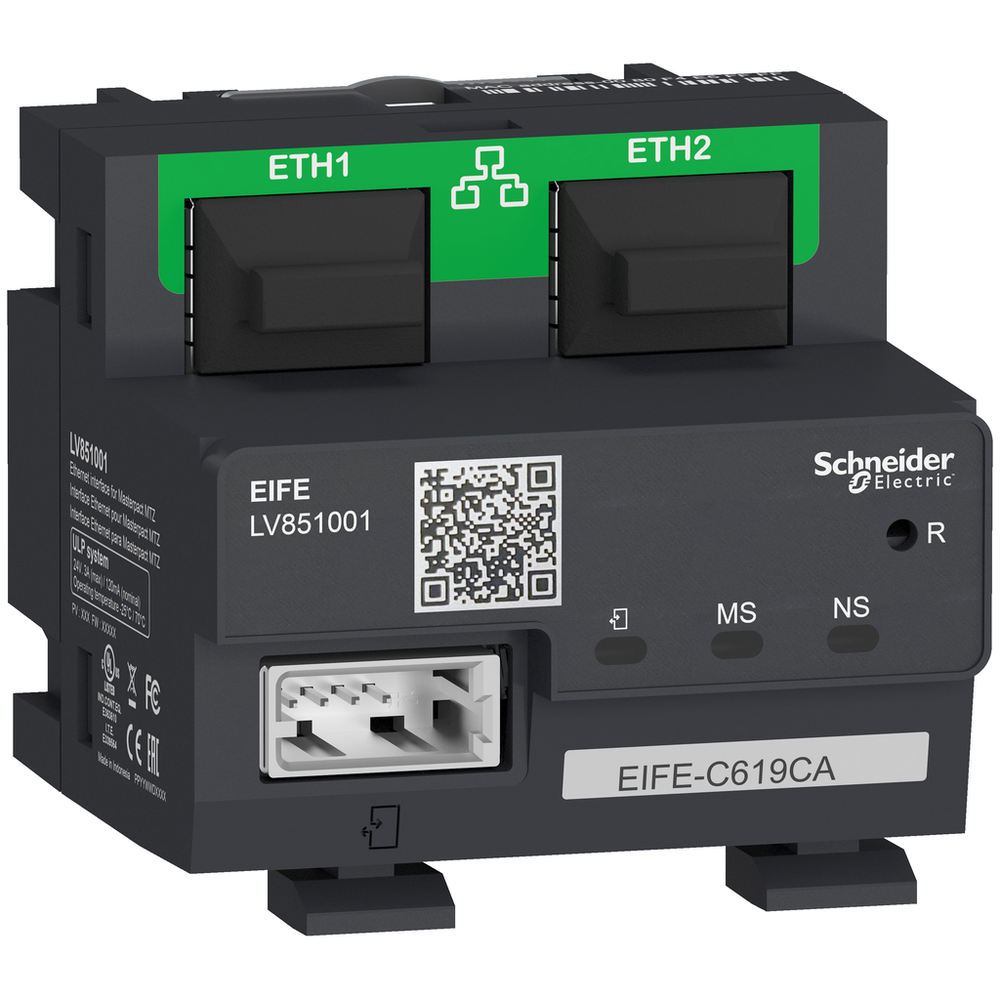

This EIFE is an embedded Ethernet interface module designed for MasterPact MTZ drawout circuit breakers. It provides a single Ethernet access and gets all data delivered by Masterpact MTZ control unit. It monitors the three positions of the circuit breaker when inserted in its chassis (IN, OUT, TEST). The data flow is 10/100 Mbps for a simple daisy chain connection. The connection to EIFE interface requires a ULP communication port installed on the chassis of MasterPact MTZ. The EIFE is mounted on MasterPact MTZ chassis DIN rail, and is connected to the ULP port by an ULP cable (not supplied). The EIFE power supply is provided by the ULP port through the ULP cable. There are two RJ45 sockets for the connection to Ethernet network. The EIFE is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The EIFE firmware can be updated using EcoStruxure Power Commission software.Embedded Ethernet interface EIFE, MasterPact MTZ1/MTZ2/MTZ3 drawout, spare part
Schneider Electric LV851001SP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Gateway
- Ethernet TCP/IP to Modbus
- Communication Network Type
- ULP, CANopen USB || Ethernet, Ethernet TCP/IP 10/100 Mbps RJ45
- Depth
- 52.5 mm
- Height
- 51 mm
- Localisation On Device
- chassis
- Maximum Supply Current
- 3 A
- Mounting Mode
- drawout
- Mounting Support
- DIN rail
- Net Weight
- 0.075 kg
- Offer Type
- spare part
- Power Consumption In W
- 72 W
- Product Certifications
- EAC || CE || FCC
- Provided Equipment
- 1 instruction sheet
- Standards
- IEC 60947-6-2 || IACS E10 || IEC 60950
- Web Server
- embedded
- Width
- 51 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ip Degree Of Protection
- IP30
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1606004EN
- Environmental Disclosure
- ENVPEP1606004EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
Specifications
- Device Application
- communication
- Device Mounting
- embedded
- Product Or Component Type
- Ethernet interface module
- Range
- MasterPact
- Range Compatibility
- Masterpact (MasterPact MTZ2) circuit breaker || Masterpact (MasterPact MTZ3) circuit breaker
