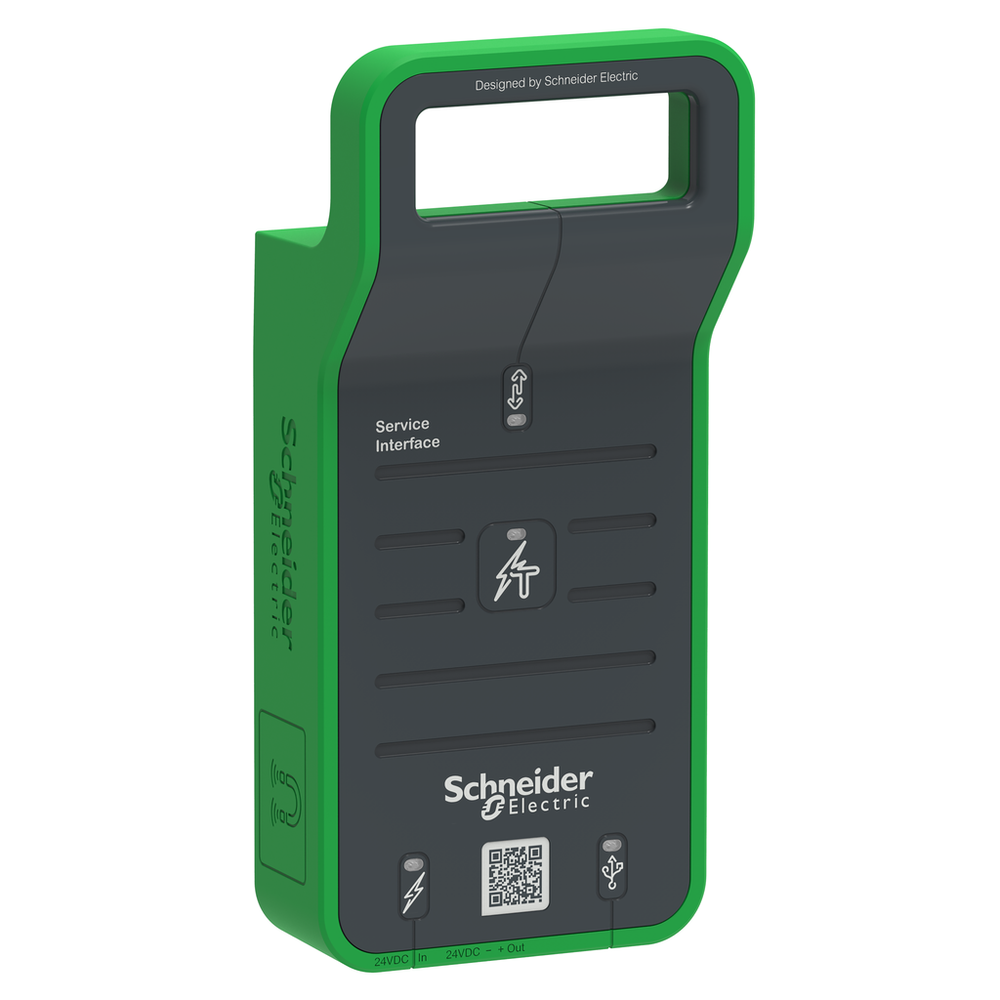

Schneider Electric LV485500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Service interface kit, Pact series circuit breakers
Schneider Electric LV485500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 358 mm
- Height
- 106 mm
- Ip Degree Of Protection
- IP20
- Net Weight
- 2.8 kg
- Product Certifications
- CE || UL
- Standards
- IEC 61010-1 || IEC 61010-2-030 || UL 61010-1 || CSA C22.2 No 61010-1 || EN 60068-2-32
- [Uimp] Rated Impulse Withstand Voltage
- 12 kV
- Width
- 451 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- conducted RF disturbances EN 55011 || emission tests EN 55032 || immunity for industrial environments IEC 61000-6-2 || emission standard for industrial environments IEC 61000-6-4 || limits for harmonic current emissions IEC 61000-3-2 || limitation of voltage changes, voltage fluctuations and flicker in low-voltage IEC 61000-3-3
- Overvoltage Category
- II
- Relative Humidity
- 5-95 % 55-55 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2007004EN
- Environmental Disclosure
- ENVPEP2007004EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Category
- maintenance accessory
- Product Or Component Type
- testing kit
- Provided Equipment
- 1 Power supply || 1 USB cable || 3 test cables
- Range Compatibility
- Masterpact (MasterPact NT) || Masterpact (MasterPact NW) || EasyPact (EasyPact MVS) || ComPact (ComPact NS630b...1600) || ComPact (ComPact NS1600b...3200)
- Response Time
- 0...7500 s +/- 0.1 %
- [Ue] Rated Operational Voltage
- 115/230 V AC +/- 10 % 47...63 Hz
