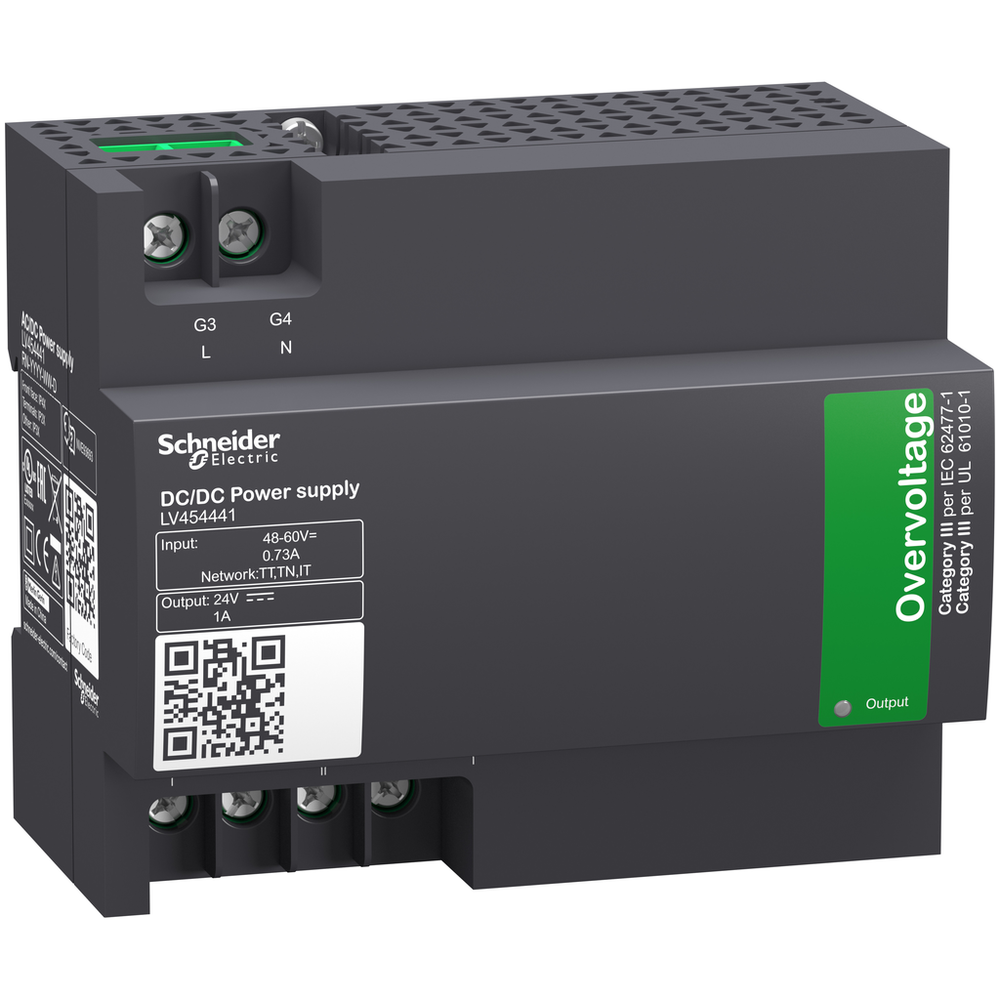

Schneider Electric LV454441
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
external power supply module, input voltage 48 V DC to 60 V DC, output voltage 24 V DC, output current 1 A
Schneider Electric LV454441 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw type terminals 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 || screw type terminals 1 x 0.2...1 x 4 mm² AWG 24...AWG 12
- Depth
- 67.5 mm
- Efficiency
- 80 %
- Height
- 90 mm
- Holding Time
- >= 20 ms 48...60 V DC
- Input Voltage Limits
- 38.4...72 V DC
- Inrush Current
- 20 A 2 ms
- Kw Rating
- 24 W
- Mounting Support
- 35 x 7.5 mm symmetrical DIN rail
- Name Of Test
- electrostatic discharges EN/IEC 61000-4-2 || induced electromagnetic field EN/IEC 61000-4-6 || magnetic field EN 61000-4-8 || primary outage IEC 61000-4-29 || radiated electromagnetic field EN/IEC 61000-4-3 || rapid transient IEC 61000-4-4 || surge EN/IEC 61000-4-5 || radiated emissions EN 61000-6-3 || conducted emissions on the power line EN 61000-6-3
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Operating Position
- horizontal
- Output Protection Type
- against overload manual reset || against overvoltage 30...32 V, manual reset || against short-circuits manual reset || thermal automatic reset
- Output Voltage
- 24 V DC +/-5 %
- Overvoltage Category
- III IEC 62477-1 || III UL 61010-1
- Permissible Temporary Current Boost
- 1.5 A 200 ms)
- Power Dissipation In W
- 4.5 W
- Power Supply Output Current
- 1 A
- Power Supply Type
- regulated switch mode
- Status Led
- 1 LED (Green) output voltage
- Trip Unit Name
- MicroLogic
- [Us] Rated Supply Voltage
- 48...60 V DC +/- 20 %
- Width
- 108 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Compatibility Code
- CB_EXTERNAL_POWERSUPPLY
- Dielectric Strength
- 3680 V between input and ground || 3680 V between input and output || 1840 V between output and ground
- Environmental Characteristic
- EMC EN/IEC 61000-6-2 || EMC EN/IEC 61000-6-3 || safety IEC 62477-1 || safety SELV
- Ip Degree Of Protection
- IP4X EN/IEC 60529 front face) || IP2X EN/IEC 60529 connection terminals) || IP3x EN/IEC 60529 housing)
- Marking
- EAC || CE || UL
- Relative Humidity
- 0-95 % during operation || 0-95 % in storage
- Standards
- UL 61010-1 || IEC 62477-1
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI1807016EN
- Environmental Disclosure
- ENVPEP1807016EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Type
- control units accessories || trip unit accessories
- Device Application
- power supply
- Product Or Component Type
- external power supply module
- Range Compatibility
- Masterpact (MasterPact MTZ) || Masterpact (MasterPact NT) || Masterpact (MasterPact NW) || ComPact (ComPact NSX) || ComPact (ComPact NSX DC) || ComPact (ComPact NS630b...1600) || ComPact (ComPact NS1600b...3200) || PowerPact (PowerPact H) || PowerPact (PowerPact J) || PowerPact (PowerPact L) || PowerPact (PowerPact P) || PowerPact (PowerPact R)
