Schneider Electric LV434128
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

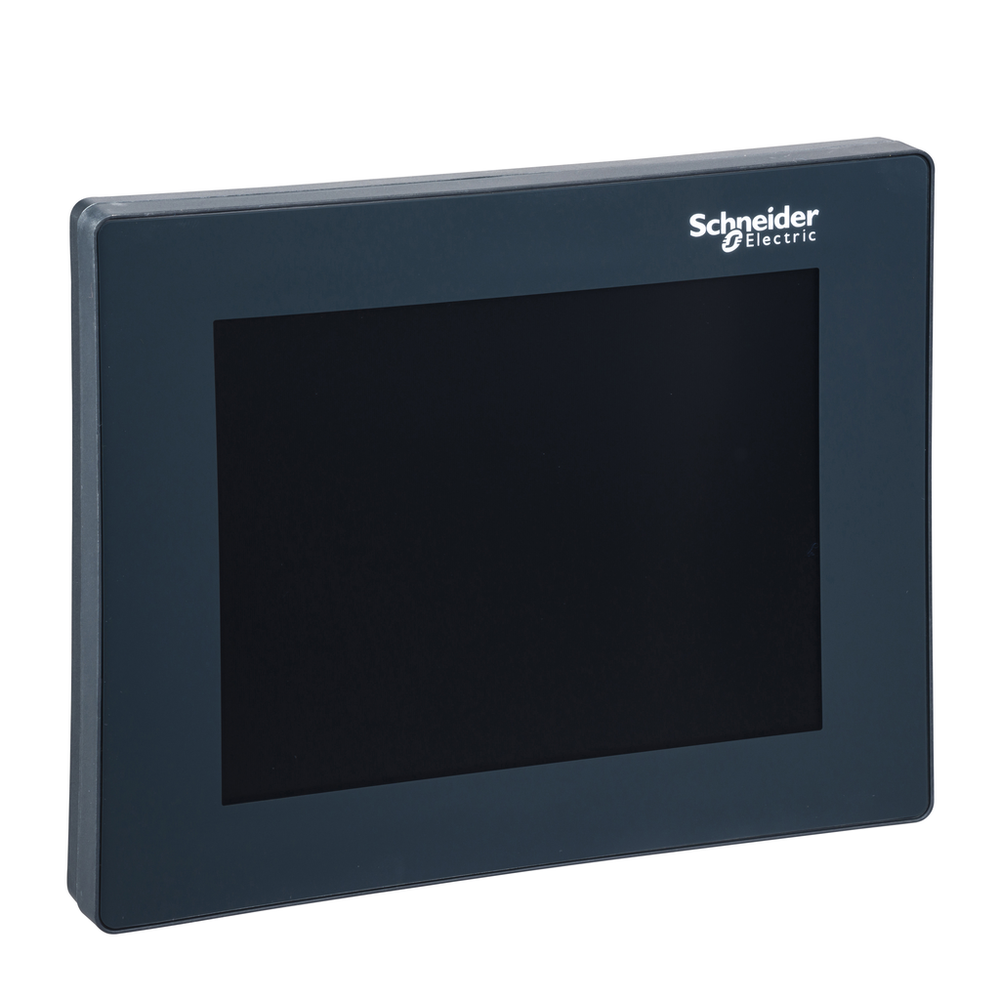

This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.Ethernet switchboard display FDM128, up to 8 connected devices, screen 115.2 x 86.4mm, IP65 on front face
Schneider Electric LV434128 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessory / Separate Part Category
- spare part ComPact NS630b...1600 || spare part ComPact NS1600b...3200
- Control Type
- remote control
- Depth
- 56.5 mm
- Display Resolution
- 320 x 240 pixels QVGA
- Display Type
- active matrix colour TFT LCD with LED backlight
- Height
- 129 mm
- Mounting Mode
- flush mounting
- Mounting Support
- surface mount with kit
- Power Consumption In W
- 6.8 W
- Standards
- CE || CSA || UL
- [Us] Rated Supply Voltage
- 24 V DC - 15...20 %
- View Angle Horizontal X Vertical
- 70 x 80°
- Width
- 163 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ip Degree Of Protection
- IP54 || front face IP65
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1510011EN
- Environmental Disclosure
- ENVPEP1510011
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Category
- display and signalling accessory
- Device Short Name
- FDM128
- Function Of Module
- remote control || view network || metering || display alarm
- Product Name
- Enerlin'X FDM
- Product Or Component Type
- display module
- Range Compatibility
- MasterPact MTZ || MasterPact NW || MasterPact NT || Compact NSX || ComPact (ComPact NS630b...1600) || ComPact (ComPact NS1600b...3200) || PowerPact (PowerPact H) || PowerPact (PowerPact J) || PowerPact (PowerPact L) || PowerPact (PowerPact P) || PowerPact (PowerPact R) || Acti 9 (Acti9 Smartlink) smart communication module
