Description

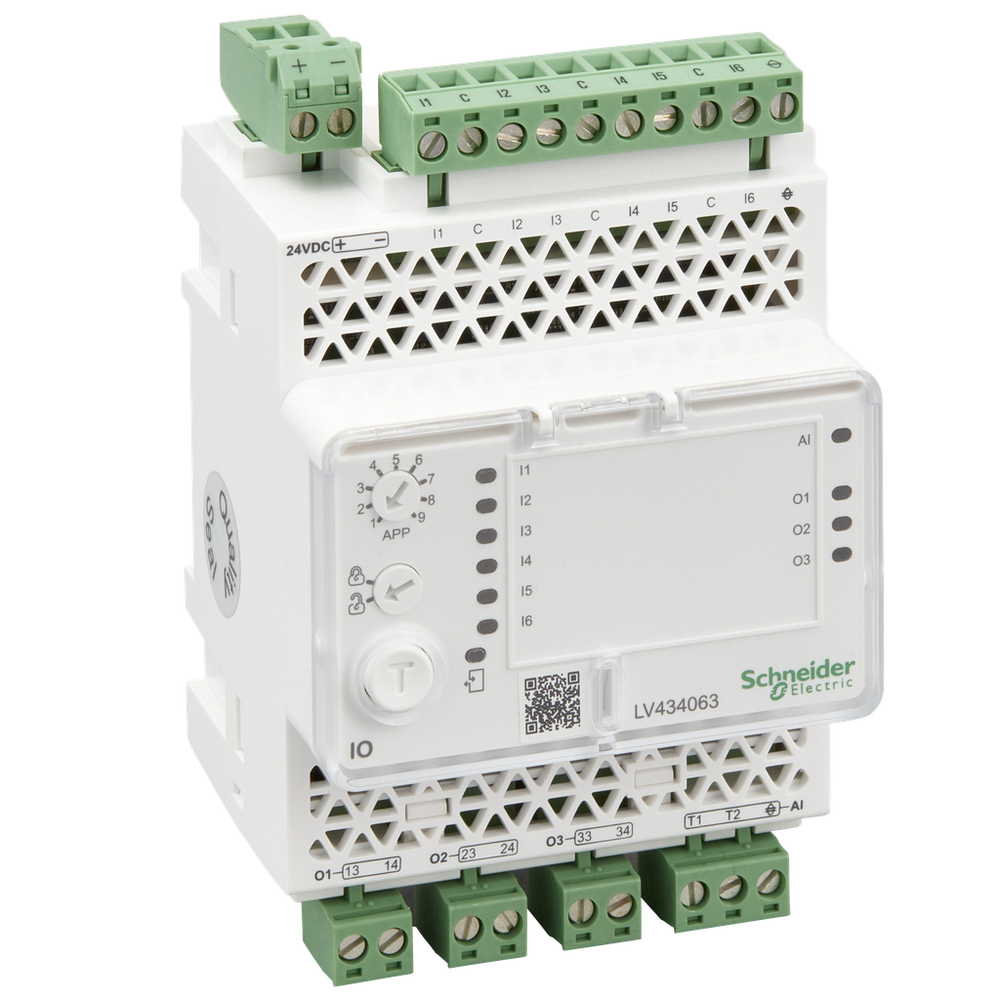

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.I/O (input/output) application module, Enerlin'X
Schneider Electric LV434063 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Length
- 10 m
- Communication Network Type
- Universal Logic Plug 2 RJ45 connectors
- Connections - Terminals
- screw terminal block
- Control Type
- by software
- Current Consumption
- 165 mA
- Depth
- 70.6 mm
- Electromagnetic Compatibility
- electrostatic discharge immunity test EN/IEC 61000-4-2 || immunity to radiated fields 10 V/m EN/IEC 61000-4-3 || surge immunity test EN/IEC 61000-4-5
- Height
- 116 mm
- Input Type
- digital state 1 19.8-25.2 V - DC - 6.1-8.8 mA || digital state 0 0-19.8 V - DC - 0-0 mA
- Mounting Mode
- by clips
- Mounting Support
- 35 mm DIN rail
- Net Weight
- 229.5 g
- Number Of Inputs
- 6-6 digital || 1-1 analog
- Number Of Outputs
- 3 digital
- Output Type
- digital 250 V - AC - 5 A
- Product Certifications
- FCC || GOST || CE || cULus
- Standards
- IEC 60947-6-2 || UL 60950 || IEC 60950 || UL 508
- Time Delay
- 0...20 s
- [Us] Rated Supply Voltage
- 24 V DC - 20...10 %
- Vibration Frequency
- 5-8.4 Hz
- Width
- 71.7 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Flame Retardance
- V0 conforming to UL
- Ip Degree Of Protection
- connectors IP2X || front panel IP4X || other parts IP3x
- Pollution Degree
- 3
- Relative Humidity
- 5-85 %
- Shock Resistance
- 1000 m/s²
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1510008_V1
- Environmental Disclosure
- ENVPEP1510008EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- I/O
- Product Name
- Enerlin'X IO
- Product Or Component Type
- I/O module
- Range Compatibility
- Masterpact (MasterPact MTZ) || Masterpact (MasterPact NT) || Masterpact (MasterPact NW) || ComPact (ComPact NSX) || ComPact (ComPact NS630b...1600) || ComPact (ComPact NS1600b...3200) || PowerPact (PowerPact J) || PowerPact (PowerPact L) || PowerPact (PowerPact H) || PowerPact (PowerPact P) || PowerPact (PowerPact R)
