Schneider Electric LV434001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

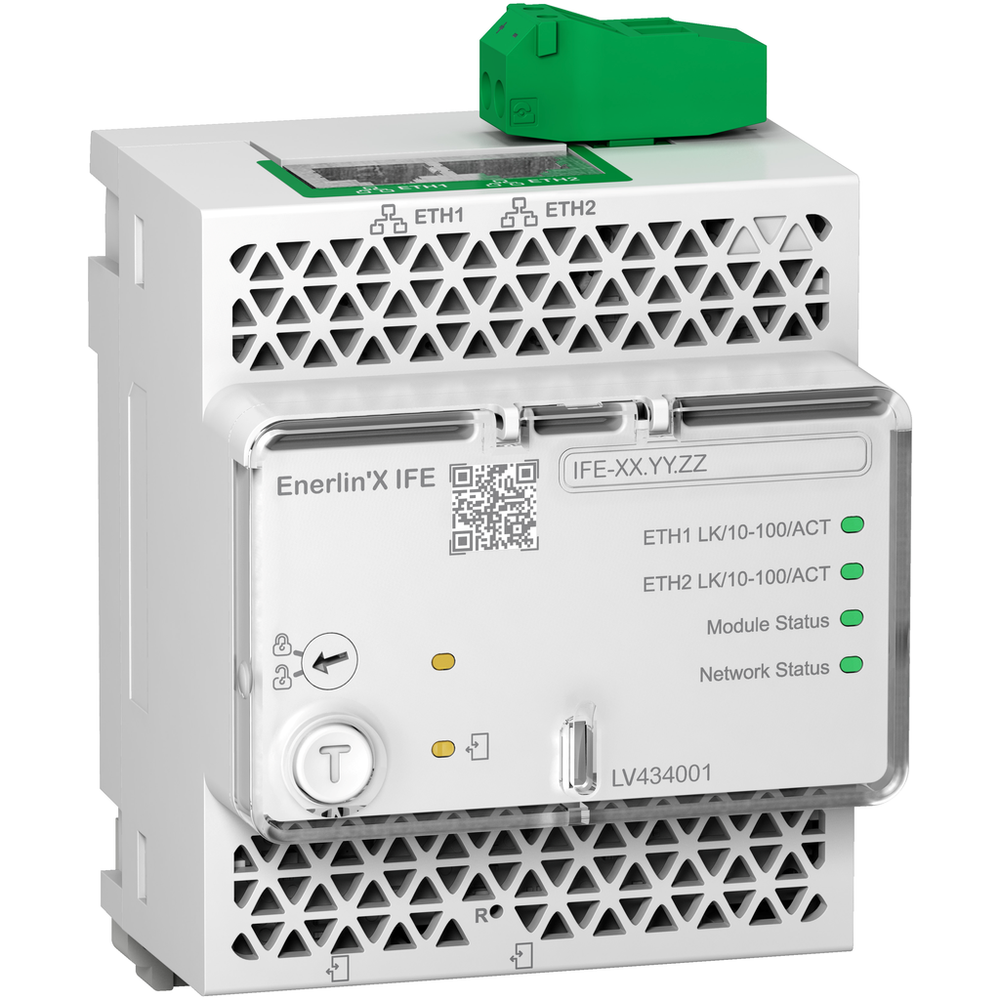

This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.IFE Ethernet interface, Enerlin'X
Schneider Electric LV434001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessory / Separate Part Category
- spare part Compact NS630b...1600 || spare part Compact NS1600b...3200
- Communication Network Type
- Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45 || Universal Logic Plug 2-port RJ45
- Connections - Terminals
- RJ45 connector
- Control Type
- by software
- Current Consumption
- 120 mA
- Depth
- 71 mm
- Height
- 105 mm
- Maximum Supply Current
- 3 A
- Mounting Mode
- by clips
- Mounting Support
- 35 mm DIN rail
- Net Weight
- 182.5 g
- Product Certifications
- GOST || cULus || FCC || CE
- Standards
- UL 60950 || UL 508 || IEC 60947-6-2 || IEC 60950
- [Us] Rated Supply Voltage
- 24 V DC - 20...10 %
- Web Server
- embedded HTTP server
- Width
- 72 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Flame Retardance
- V0 conforming to UL 94 || V0 conforming to IEC 60947-1 || V0 conforming to IEC 60695-2-11
- Ip Degree Of Protection
- connectors IP2X || other parts IP3x || front panel IP4X
- Pollution Degree
- 3
- Relative Humidity
- 5-85 %
- Shock Resistance
- 1000 m/s²
- Vibration Frequency
- 5-8.4 Hz
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1703001EN
- Environmental Disclosure
- ENVPEP1703001EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- IFE
- Product Or Component Type
- interface module
- Range Compatibility
- Masterpact (MasterPact MTZ) || Masterpact (MasterPact NT) || Masterpact (MasterPact NW) || ComPact (ComPact NSX) || ComPact (ComPact NS630b...1600) || ComPact (ComPact NS1600b...3200) || PowerPact (PowerPact J) || PowerPact (PowerPact L) || PowerPact (PowerPact H) || PowerPact (PowerPact P) || PowerPact (PowerPact R)
