Schneider Electric LV433706
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

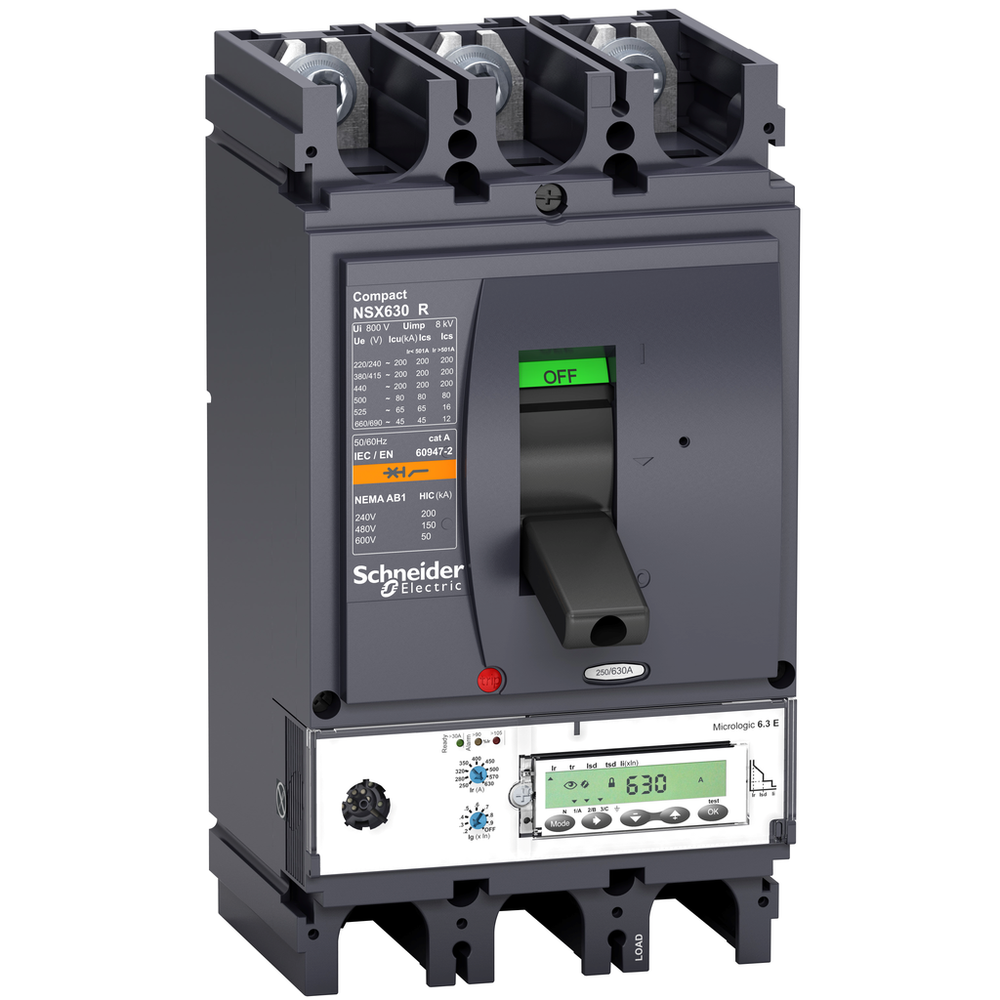

This Compact NSX630R is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 630A rating electronic Micrologic 6.3 E trip unit, with an adjustable ground-fault protection (with OFF position). Micrologic 6.3 E trip unit provides adjustable long time, short time and instantaneous protection. Micrologic 6.3 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX630R is part of Schneider Electric EcoStruxure Power architecture.Circuit breaker, ComPact NSX630R, 200kA/415VAC, MicroLogic 6.3E trip unit 630A, 3 poles 3d
Schneider Electric LV433706 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Of Data
- time-stamped histories and event tables || maximeters/minimeters || protection and alarm settings || power quality || demand current and power || maintenance indicators || instantaneous and demand values || energy metering
- Connection Pitch
- 45 mm
- Depth
- 110 mm
- Display Type
- LCD display
- Downside Connection
- front
- Earth-Leakage Protection
- without
- Electrical Durability
- 2000 cycles 690 V In || 6000 cycles 690 V In/2 || 4000 cycles 440 V In || 8000 cycles 440 V In/2
- Ground-Fault Pick-Up Adjustment Type
- adjustable 9 settings
- Ground-Fault Time Delay Adjustment Type -Tg
- adjustable
- Height
- 255 mm
- [Ics] Rated Service Breaking Capacity
- 200 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 200 kA 380/415 V AC 50/60 Hz IEC 60947-2 || 200 kA 440 V AC 50/60 Hz IEC 60947-2 || 80 kA 500 V AC 50/60 Hz IEC 60947-2 || 16 kA 525 V AC 50/60 Hz IEC 60947-2 || 12 kA 660/690 V AC 50/60 Hz IEC 60947-2
- [Ig] Ground-Fault Pick-Up Adjustment Range
- 0.4...1 x In In = 40 A || 0.2...1 x In In > 40 A || Ig enable on/off
- Instantaneous Pick-Up Adjustment Range
- 1.5...11 x In
- Instantaneous Pick-Up Adjustment Type Ii
- adjustable
- [Isd] Short-Time Pick-Up Adjustment Range
- 1.5...11 x In
- Local Signalling
- for ready to operate flashing LED (green) || for overload LED 105 % Ir (red) || for overload LED 90 % Ir (orange)
- Long Time Delay Adjustment Type
- adjustable
- Long Time Pick-Up Adjustment Range
- 250...630 A
- Long Time Pick-Up Adjustment Type Ir
- adjustable 9 settings
- Mechanical Durability
- 15000 cycles
- Mounting Support
- backplate
- Net Weight
- 6.2 kg
- Number Of Slots
- 6
- Protection Type
- L : for overload protection (long time) || S : for short time short-circuit protection || I : for instantaneous short-circuit protection || G : for ground fault protection
- Short-Time Delay Adjustment Type
- adjustable 5 settings
- Short-Time Pick-Up Adjustment Type Isd
- adjustable
- [Tg] Ground-Fault Time Delay Adjustment Range
- 0-0.4 s I²t=off || 0.1-0.4 s I²t=on
- Thermal Memory
- 20 minutes before and after tripping
- Trip Unit Rating
- 630-630 A 40 °C
- [Tr] Long-Time Delay Adjustment Range
- 15-400 s 1.5 x Ir || 0.35-11 s 7.2 x Ir || 0.5-16 s 6 x Ir
- [Tsd] Short-Time Delay Adjustment Range
- 0-0.4 s
- Type Of Measurement
- energy meter
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 800 V AC 50/60 Hz
- Upside Connection
- front
- Width
- 140 mm
- Zone Selective Interlocking Zsi
- with
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Electrical Shock Protection Class
- class II
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating || 2000 m...5000 m with derating
- Overvoltage Category
- class II
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- EAC || CCC || Marine
- Relative Humidity
- 0-95 %
- Standards
- EN/IEC 60947
Important Information
- Important Message
- This product has been switched to new ComPacT range and is no longer commercialized.
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI120604EN
- Environmental Disclosure
- ENVPEP120606EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Breaking Capacity
- 200 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 200 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 200 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 80 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 65 kA Icu 525 V AC 50/60 Hz IEC 60947-2 || 45 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
- Breaking Capacity Code
- R 200 kA 415 V AC
- Control Type
- toggle
- Device Application
- distribution
- Device Short Name
- NSX630R
- Line Rated Current
- 630 A 40 °C
- Mounting Mode
- fixed
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Poles Description
- 3P
- Product Name
- ComPact NSX
- Product Or Component Type
- circuit breaker
- Protected Poles Description
- 3t
- Range
- ComPact
- Range Of Product
- ComPact NSX400...630
- Suitability For Isolation
- yes EN/IEC 60947-2
- Trip Unit Name
- MicroLogic 6.3 E
- Trip Unit Protection Functions
- LSIG
- Trip Unit Technology
- electronic
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Utilisation Category
- category A
