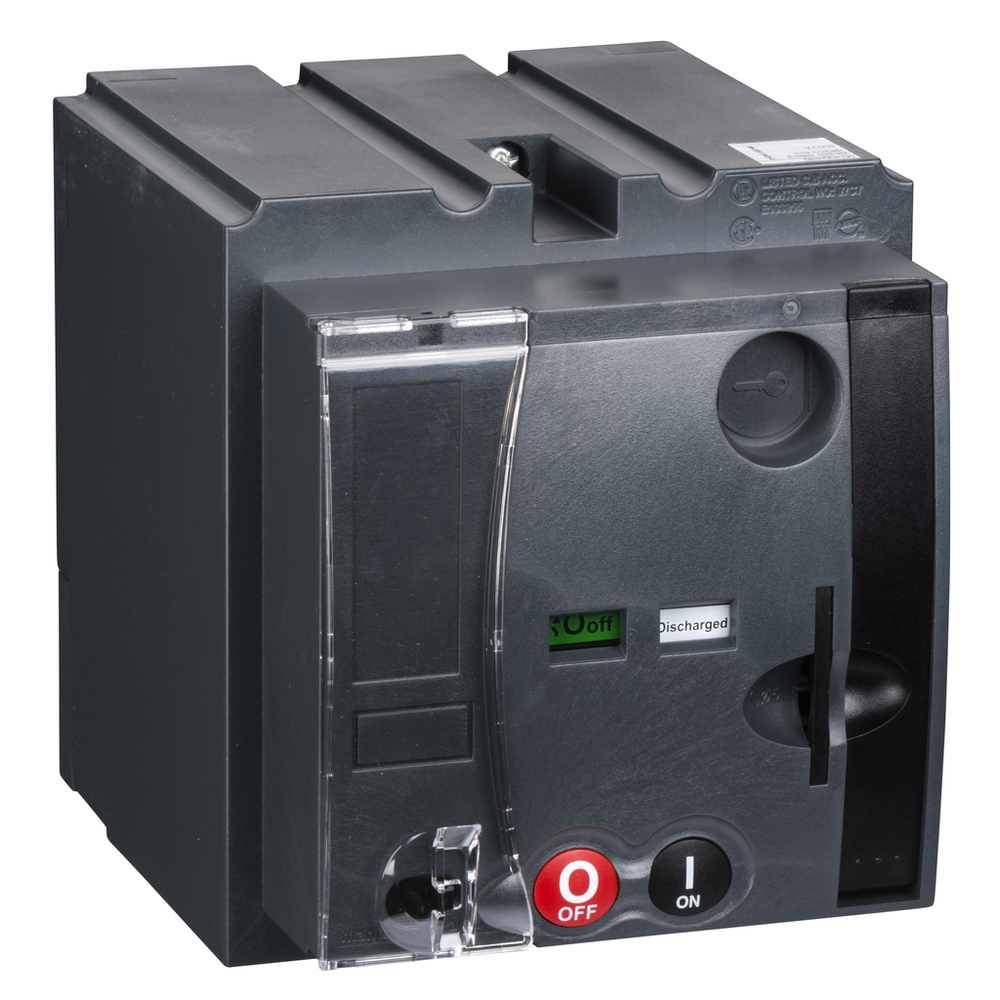

Schneider Electric LV432641
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.Standard motor mechanism module MT400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz, 208/277VAC 60Hz
Schneider Electric LV432641 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Control Signal Type
- impulse || maintained
- Locking Options Description
- padlocking in OFF position || 1 to 3 padlocks Ø 5 to Ø 8
- Maximum Operating Frequency
- 4 per minute
- Maximum Power Consumption In Va
- 500 VA closing || 500 VA opening
- Response Time
- < 700 ms open || < 80 ms closed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI111002EN
- Environmental Disclosure
- ENVPEP111247EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Type
- standard
- Device Application
- automatic spring charging
- Device Short Name
- MT400/630
- Line Rated Current
- 400 A || 630 A
- Mounting Mode
- fixed
- Product Or Component Type
- motor mechanism
- Range Compatibility
- ComPacT new generation (ComPacT NSX400 new generation) || ComPacT new generation (ComPacT NSX630 new generation) || ComPact (ComPact NSX400) || ComPact (ComPact NSX630) || ComPact (ComPacT NSX DC new generation) NSX400 DC || ComPact (ComPacT NSX DC new generation) NSX630 DC || ComPact Compact NSX400 DC || ComPact Compact NSX630 DC || PowerPact Multistandard (PowerPact Multistandard) || PowerPact (PowerPact L)
- [Uc] Control Circuit Voltage
- 208...277 V AC 60 Hz || 220...240 V AC 50/60 Hz
