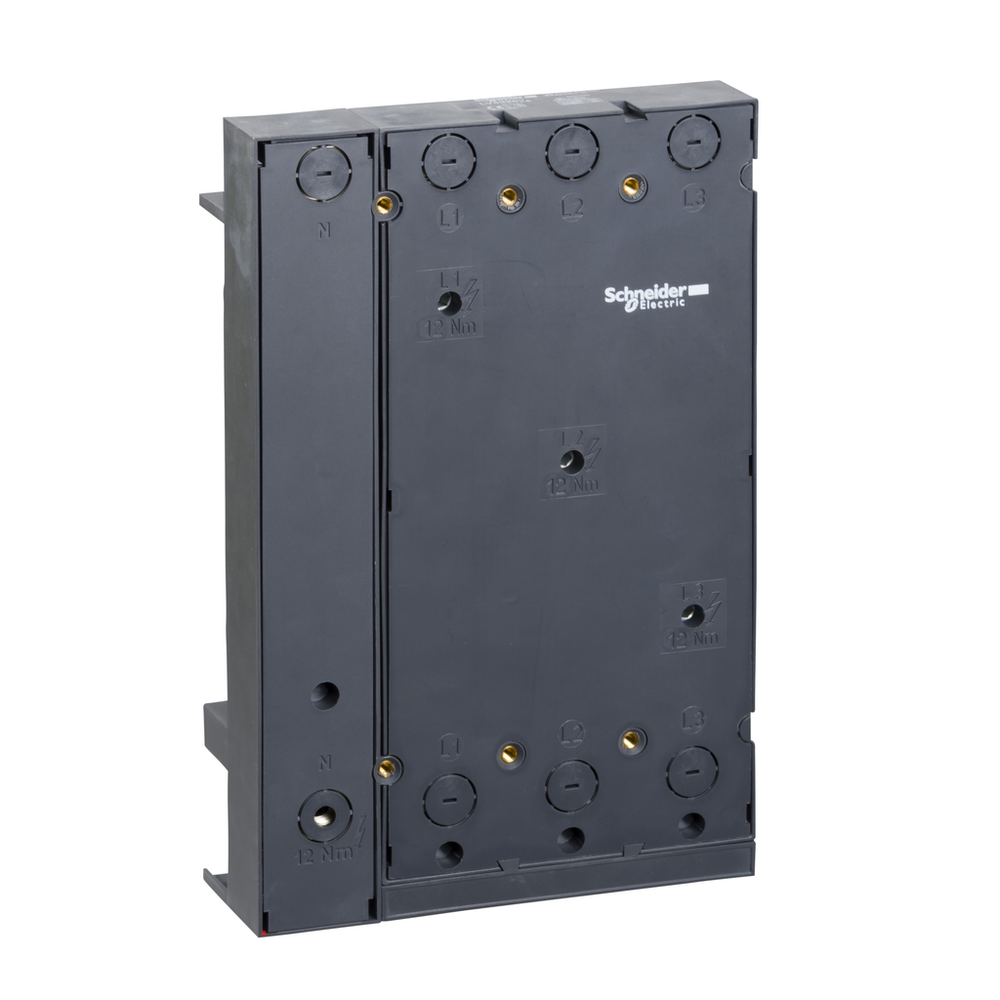

Schneider Electric LV432624
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The NSX mounting plate system for busbar simplifies the installation of 4 poles NSX 400-630 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. Depending on the cross section of the bars, the busbar associated to terminals can withstand a maximum current of 630A. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.PLATINE COMPACT NSX 400-630 4P IEC/UL FOR 60 BUSBARS INTERAXIS
Schneider Electric LV432624 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Busbar Pitch
- 60 mm
- Color
- anthracite grey
- Depth
- 63 mm
- Height
- 284 mm
- Permissible Current
- 200 A 12 x 5 mm || 250 A 15 x 5 mm || 320 A 20 x 5 mm || 400 A 25 x 5 mm || 450 A 30 x 5 mm || 360 A 12 x 10 mm || 520 A 20 x 10 mm || 630 A 30 x 10 mm
- Poles Description
- 4P
- Product Compatibility
- NSX400...630
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Spacial || ComPact
- [Ui] Rated Insulation Voltage
- 690 V
- Width
- 184 mm
Environment
- Ip Degree Of Protection
- IP20 IEC 60529
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP120206EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LA9Z
- Number Of Ways
- 1 way
- Product Name
- BZ
- Product Or Component Type
- adaptors for busbar systems
- Range
- Linergy
