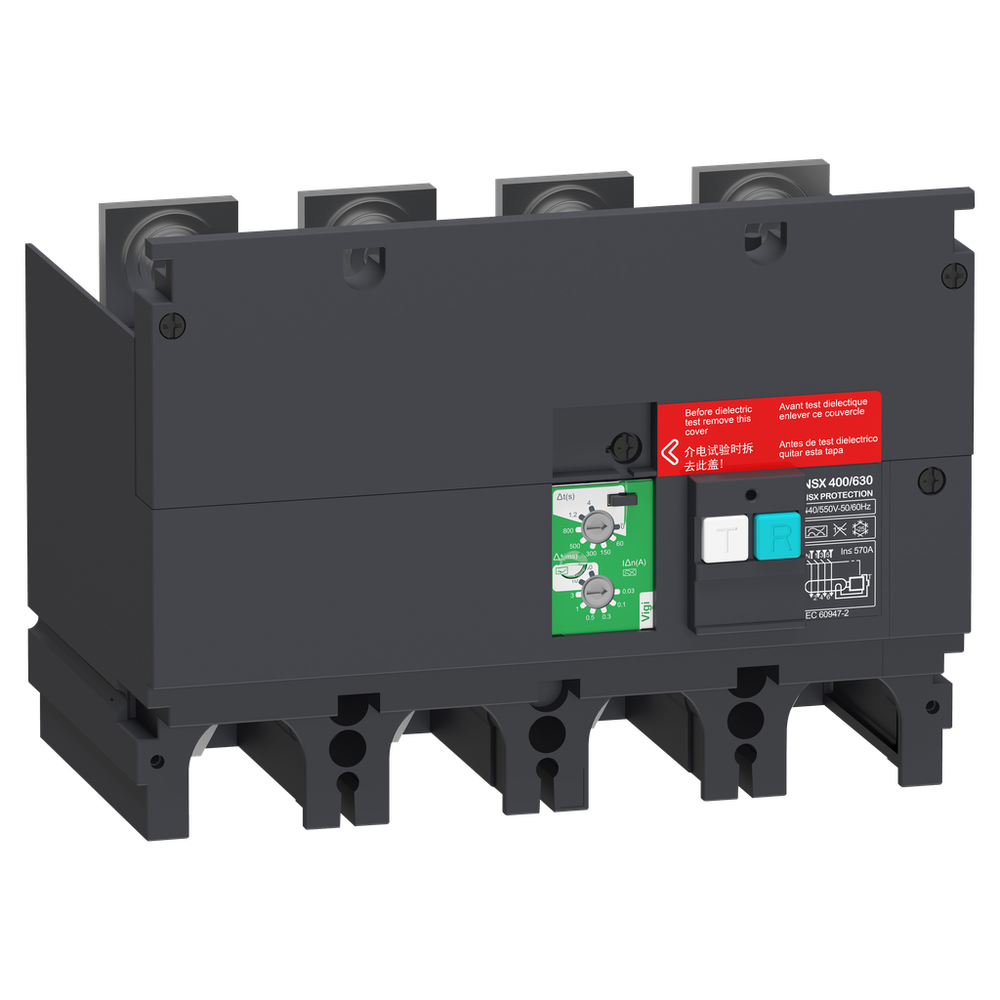

Schneider Electric LV432467

Complementary

• Earth-Leakage Protection
  • with
• Maximum Breaking Time
  • 800 ms
• Network Frequency
  • 50/60 Hz
• Network Type
  • AC
• Overvoltage Category
  • IV
• [Ue] Rated Operational Voltage
  • 440...550 V AC 50/60 Hz IEC 60947-2

Environment

• Electrical Shock Protection Class
  • class II
• Standards
  • IEC 60947-2

Offer Sustainability

• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI2102011_V1
• Environmental Disclosure
  • ENVPEP2102011_V1
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Application
  • wiring
• Device Short Name
  • VigiPacT
• Earth-Leakage Protection Class
  • class A || class AC
• Earth-Leakage Sensitivity
  • 0.03 A class A || 0.1 A class A || 0.3 A class A || 0.5 A class A || 1 A class A || 3 A class A || 10 A class AC || 30 A class AC
• Line Rated Current
  • 400 A || 630 A
• Poles Description
  • 4P
• Product Or Component Type
  • Vigi add-on
• Range Compatibility
  • ComPacT new generation (ComPacT NSX400 new generation) circuit breaker || ComPacT new generation (ComPacT NSX630 new generation) circuit breaker || ComPact (ComPact NSX400) circuit breaker || ComPact (ComPact NSX630) circuit breaker
• Range Of Product
  • ComPacT NSX400...630 new generation || ComPact NSX400...630
• Residual Earth-Leakage Sensitity Adjustment Type
  • adjustable
• Residual Earth-Leakage Time Delay Adjustment Type
  • adjustable
• [Δt] Residual Earth-Leakage Time Delay Adjustment
  • 0-0 ms || 60-60 ms || 150-150 ms || 300-300 ms || 500-500 ms || 800-800 ms || 1.2-1.2 s || 4-4 s
