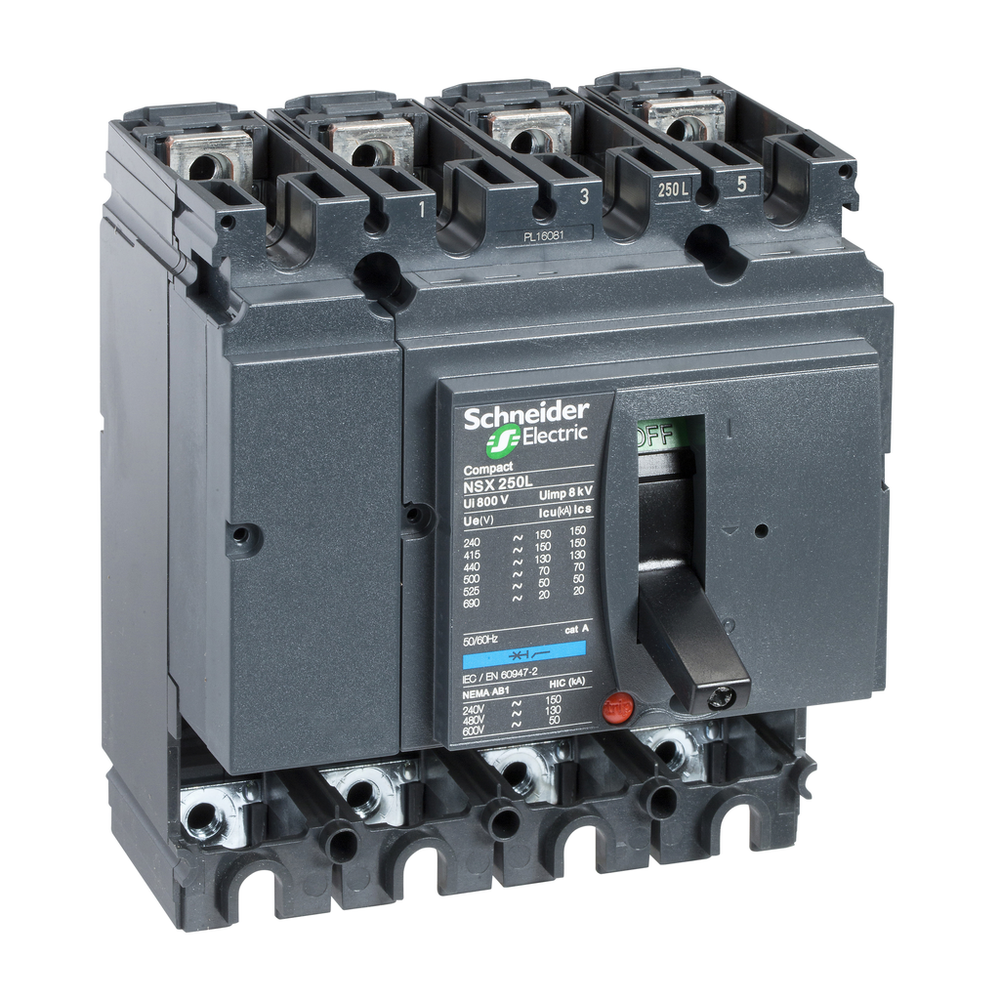

Schneider Electric LV431411
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This is a 4 poles basic frame for Compact NSX250N. Compact NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX250N is part of Schneider Electric EcoStruxure Power architecture.Circuit breaker basic frame, ComPact NSX250N, 50kA at 415VAC 50/60 Hz, 250A, without trip unit, 4 poles
Schneider Electric LV431411 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connection Pitch
- 35 mm
- Depth
- 86 mm
- Downside Connection
- front
- Electrical Durability
- 10000 cycles 440 V AC 50/60 Hz In IEC 60947-2 || 10000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2 || 20000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2 || 5000 cycles 690 V AC 50/60 Hz In IEC 60947-2
- Height
- 161 mm
- [Ics] Rated Service Breaking Capacity
- 10 kA 660/690 V AC 50/60 Hz IEC 60947-2 || 35 kA 525 V AC 50/60 Hz IEC 60947-2 || 36 kA 500 V AC 50/60 Hz IEC 60947-2 || 50 kA 380/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 440 V AC 50/60 Hz IEC 60947-2 || 90 kA 220/240 V AC 50/60 Hz IEC 60947-2
- Mechanical Durability
- 20000 cycles IEC 60947-2
- Mounting Support
- backplate
- Protection Type
- without protection
- [Uimp] Rated Impulse Withstand Voltage
- 8 kVIEC 60947-2
- [Ui] Rated Insulation Voltage
- 800 V AC 50/60 Hz IEC 60947-2
- Upside Connection
- front
- Width
- 140 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- CSA || UL
- Standards
- EN/IEC 60947-2 || UL 508
Important Information
- Important Message
- This product has been switched to new ComPacT range and is no longer commercialized. It will continue to be available in H1 2023 only limited to specific projects.
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI120604EN
- Environmental Disclosure
- ENVPEP120606EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Breaking Capacity
- 85 kA 240 V AC 50/60 Hz UL 508 || 10 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 || 35 kA Icu 525 V AC 50/60 Hz IEC 60947-2 || 50 kA 480 V AC 50/60 Hz UL 508 || 36 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 90 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 15 kA 600 V AC 50/60 Hz UL 508
- Circuit Breaker Name
- Compact NSX250N
- Control Type
- toggle
- Device Application
- distribution
- Device Short Name
- NSX250N
- Line Rated Current
- 250 A 40 °C
- Mounting Mode
- fixed
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Neutral Position
- left
- Poles Description
- 4P
- Product Or Component Type
- basic frame
- Range
- ComPact
- Range Of Product
- ComPact NSX100...250
- Suitability For Isolation
- yes EN/IEC 60947-2
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Utilisation Category
- category A
