Schneider Electric LV429338
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

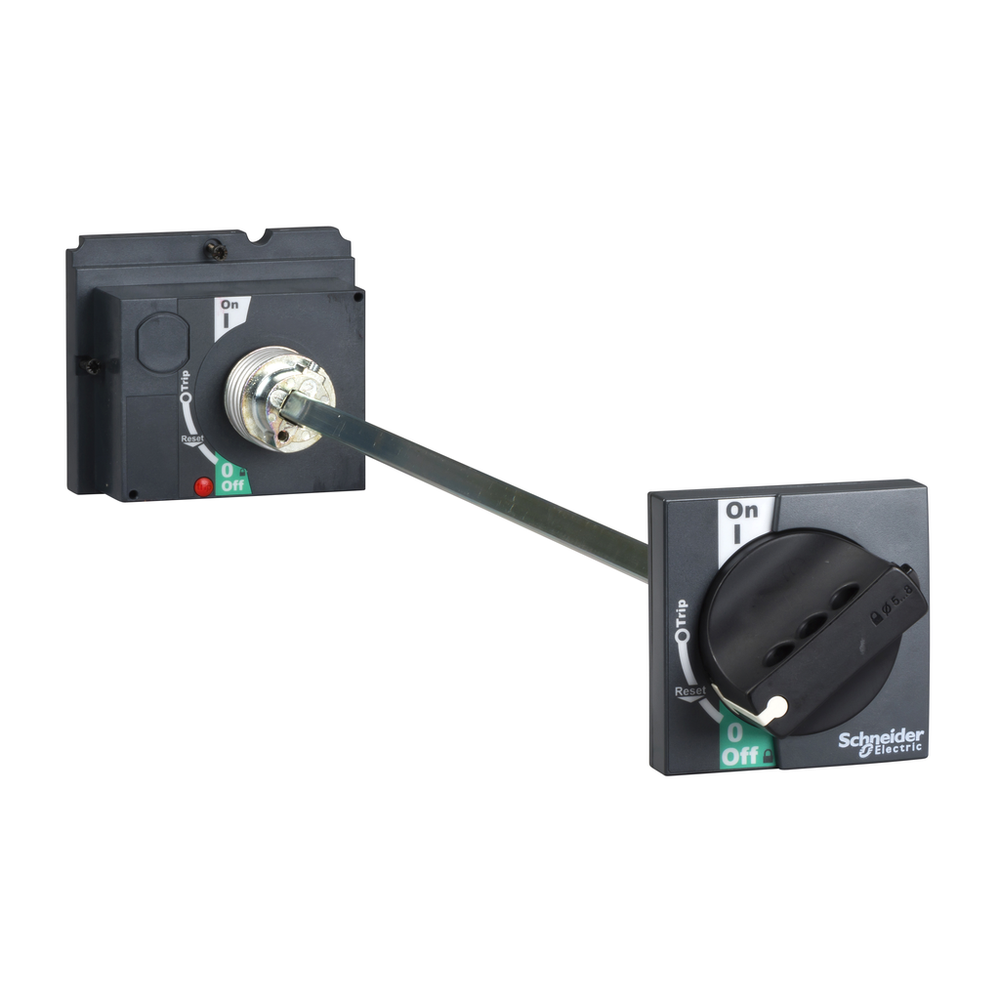

It is an extended rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.Extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55
Schneider Electric LV429338 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Range Compatibility
- ComPact (ComPact NSX100) || ComPact (ComPact NSX160) || ComPact (ComPact NSX250) || EasyPact (EasyPact CVS100) || EasyPact (EasyPact CVS160) || EasyPact (EasyPact CVS250) || PowerPact (PowerPact Multistandard)
- Rotary Handle Mounting Location
- front
- Rotary Handle Padlocking
- padlock in OFF position || 1 to 3 padlocks
Contractual warranty
- Warranty
- 18 months
Environment
- Ip Degree Of Protection
- IP55
Important Information
- Important Message
- This product has been switched to new ComPacT range and is no longer commercialized.
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2204005EN
- Environmental Disclosure
- ENVPEP2204005
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Type
- control accessories
- Handle Colour
- black
- Handle Front Plate Colour
- black
- Product Or Component Type
- rotary handle
- Range Of Product
- ComPact NSX100...250
- Rotary Handle Mounting Style
- extended
