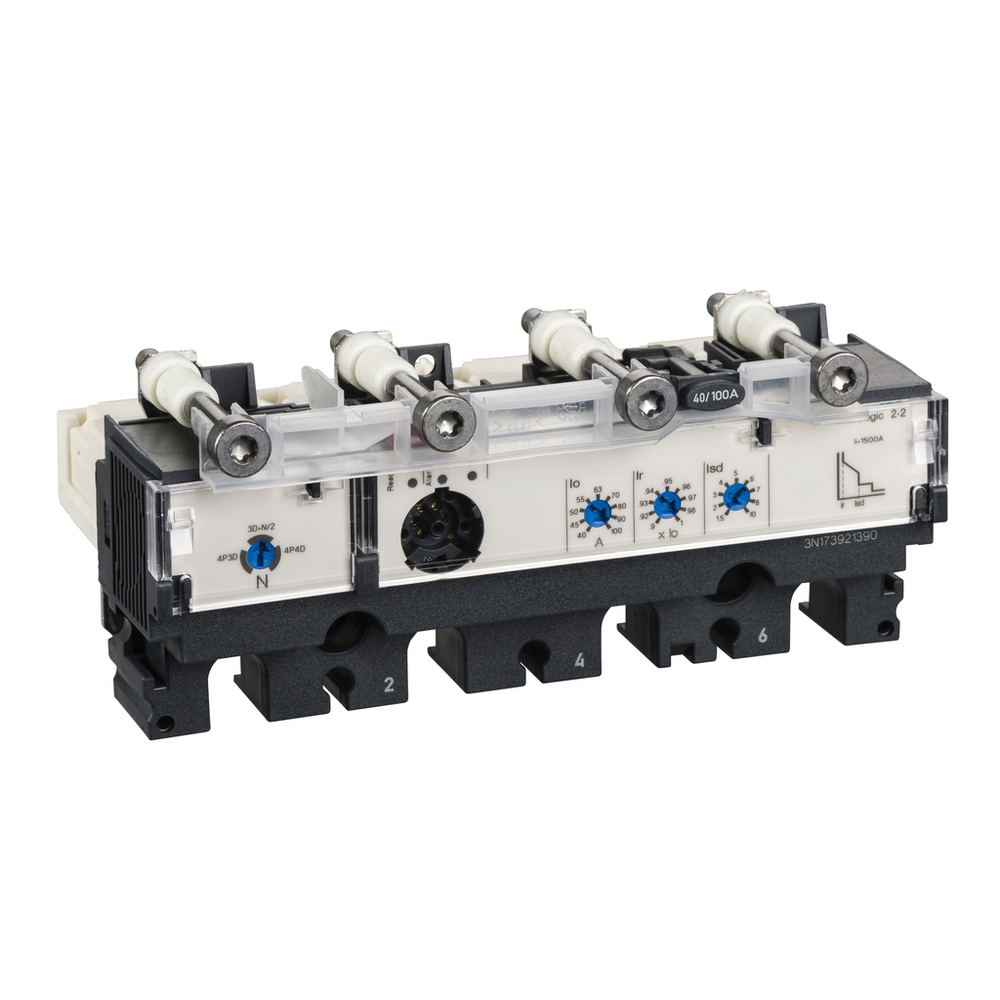

This Micrologic 2.2 is a 4 poles 4d electronic trip unit used on Compact NSX 100/160/250 circuit breakers. This 100A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. Micrologic 2.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and Compact NSX basic frame.trip unit MicroLogic 2.2 for ComPact NSX 100/160/250 circuit breakers, electronic, rating 100A, 4 poles 4d
Schneider Electric LV429080 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Earth-Leakage Protection
- without
- Instantaneous Pick-Up Adjustment Range
- 1500 A
- Instantaneous Pick-Up Adjustment Type Ii
- fixed
- [Isd] Short-Time Pick-Up Adjustment Range
- 1.5...10 x Ir
- Long Time Delay Adjustment Type
- fixed
- Long Time Pick-Up Adjustment Range
- 40...100 A
- Long Time Pick-Up Adjustment Type Ir
- adjustable 9 settings
- Neutral Protection Setting
- 0.5 x Ir 3t + N/2) || 1 x Ir 4t) || no protection 3t)
- Short-Time Delay Adjustment Type
- fixed
- Short-Time Pick-Up Adjustment Type Isd
- adjustable 9 settings
- Thermal Memory
- 20 minutes before and after tripping
- [Tr] Long-Time Delay Adjustment Range
- 11-11 s 7.2 x Ir || 16-16 s 6 x Ir || 400-400 s 1.5 x Ir
- [Tsd] Short-Time Delay Adjustment Range
- 0.02-0.02 s
- Zone Selective Interlocking Zsi
- without
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Product Certifications
- EAC || Marine || CCC
- Standards
- UL 508 || EN/IEC 60947-2
Important Information
- Important Message
- This product has been switched to new ComPacT range and is no longer commercialized. It will continue to be available in H1 2023 only limited to specific projects.
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI120604EN
- Environmental Disclosure
- ENVPEP120606EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- distribution
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Neutral Position
- left
- Poles Description
- 4P
- Product Or Component Type
- trip unit
- Protected Poles Description
- 3t + N/2 || 4t || 3t
- Protection Type
- L : for overload protection (long time) || So : for short time short-circuit protection with fixed delay || I : for instantaneous short-circuit protection
- Range
- ComPact
- Range Compatibility
- ComPact NSX100 || ComPact NSX160 || ComPact NSX250
- Range Of Product
- ComPact NSX100...250
- Trip Unit Name
- MicroLogic 2.2
- Trip Unit Protection Functions
- LSoI
- Trip Unit Technology
- electronic
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
