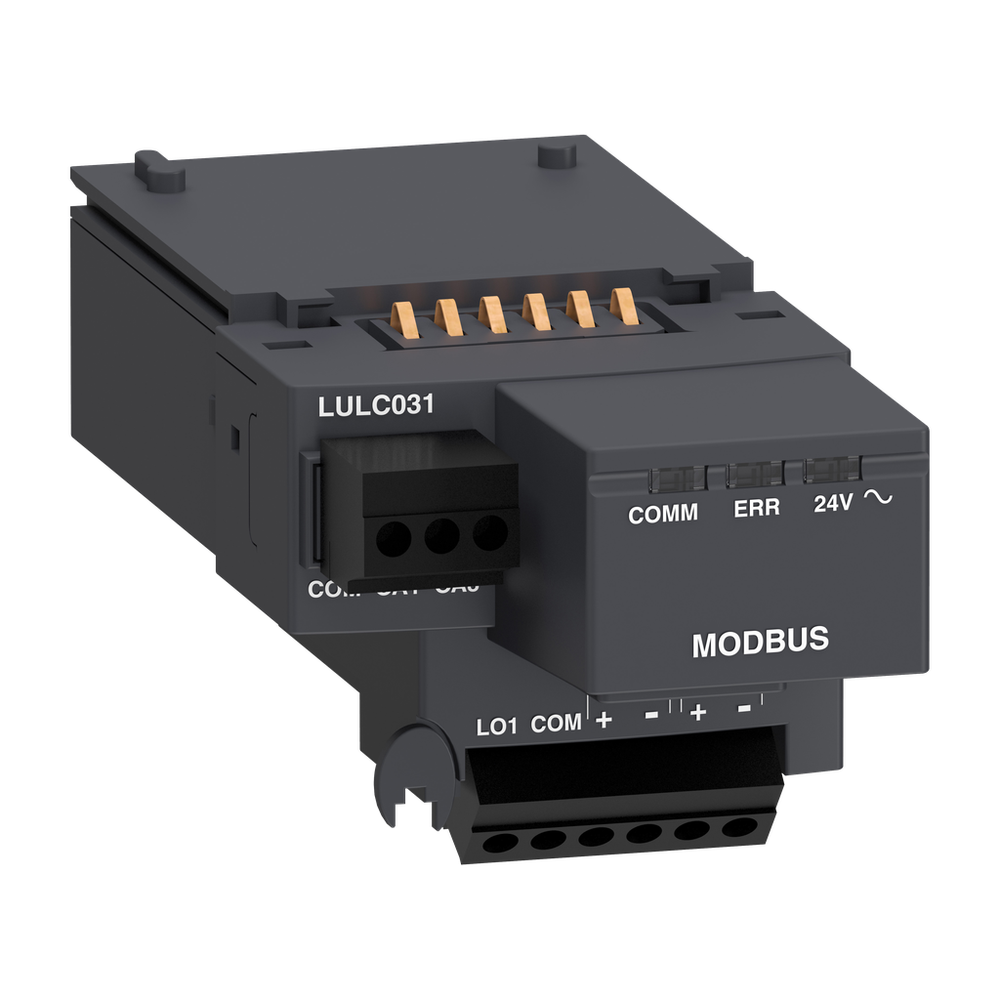

Schneider Electric LULC031
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 1 x logic output 24V DC (select LULC033 to have 2 additional 24V DC logic inputs). On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).Modbus communication module, TeSys Ultra, 24VDC
Schneider Electric LULC031 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Addressing
- 0...31
- Bus Type
- Modbus
- Cable Connector Type
- RJ45 front panel
- Communication Port Protocol
- Modbus RTU
- Connection Pitch
- 3.81 mm
- Connections - Terminals
- screw clamp terminals 1 0.14-1 mm²flexible without cable end || screw clamp terminals 1 0.14-1 mm²rigid without cable end || screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || screw clamp terminals 1 0.25-1 mm²flexible with cable end || screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
- Function Available
- Modbus communication module
- Input Type
- resistive
- Local Signalling
- 3 LEDs front panel
- Logic Input
- positive 24 V DC - 7 mA
- Mounting Location
- front side
- Mounting Mode
- plug-in
- Net Weight
- 0.08 kg
- Number Of Outputs
- 2 dedicated to starter-controller coil operation || 1
- Output Current
- <= 500 mA
- Physical Interface
- RS485 multidrop
- Protection Type
- gG fuse 1 A
- Response Time
- 10 ms +/- 30 % change to state 0 || 10 ms +/- 30 % change to state 1
- Return Time
- 30 ms
- Switching Current Capacity
- 0.5 mA 24 V
- Tightening Torque
- 0.2-0.25 N.m 2.5 mm
- Transmission Rate
- 19200 bit/s
- [Us] Rated Supply Voltage
- 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- communication
- Device Short Name
- LUL
- Product Compatibility
- LUCD || LUCA || LUCB || LUCL || LUCM || LUCC
- Product Or Component Type
- communication module
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys U) LUB non reversing power base || TeSys (TeSys U) LU2B reversing power base
