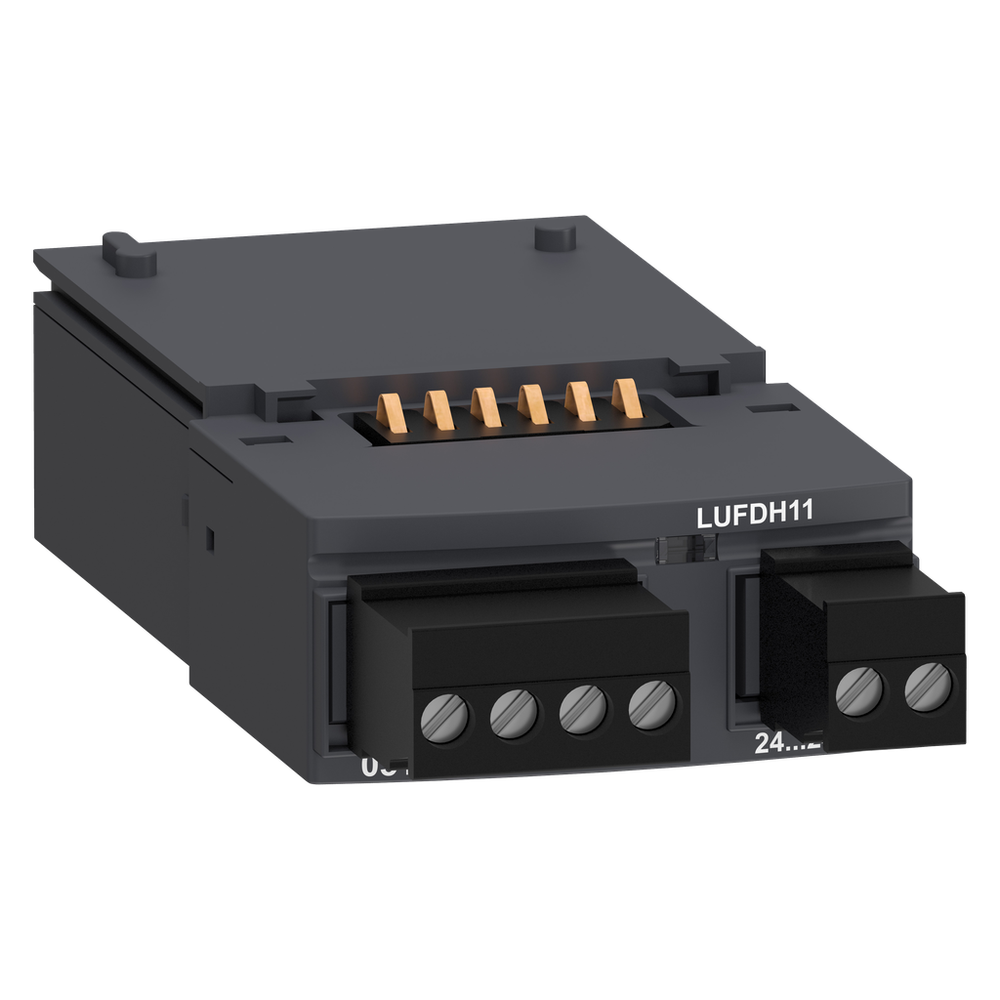

Schneider Electric LUFDH11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Function module, thermal overload signalling, TeSys Ultra, 1 NO + 1 NC
Schneider Electric LUFDH11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Communication Of Faults
- LED front panel
- Connection Pitch
- 5.08 mm
- Connections - Terminals
- screw clamp terminals 2 0.2-1 mm² rigid without cable end || screw clamp terminals 2 0.25-1 mm² flexible with cable end || screw clamp terminals 2 0.5-1 mm² flexible with cable end
- Current Consumption
- 7 mA 24 V DC || 1.1 mA 240 V AC
- Discrete Output Function
- 1 NO + 1 NC AC-15) 230 V 400 VA 100000 cycles || 1 NO + 1 NC DC-13) 24 V 50 W 100000 cycles
- Function Available
- thermal overload signalling and manual reset
- Input Type
- remote reset 0.2-1.5 mm² <500 m 50 Ohm 52.8 mH 0.093 nF
- [Ith] Conventional Free Air Thermal Current
- 2 A 70 °C
- Mounting Location
- front side
- Mounting Mode
- plug-in
- Net Weight
- 0.06 kg
- Short-Circuit Protection
- 2 A fuse gG IEC 60947-5-1
- Tightening Torque
- 0.5-0.6 N.m 3.5 mm flat
- [Us] Rated Supply Voltage
- 24...240 V DC || 24...240 V AC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI111214EN_V1
- Environmental Disclosure
- ENVPEP111201EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LUF
- Product Compatibility
- LUCC || LUCB || LUCD
- Product Or Component Type
- function module
- Range
- TeSys
