Schneider Electric LUFDA01
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

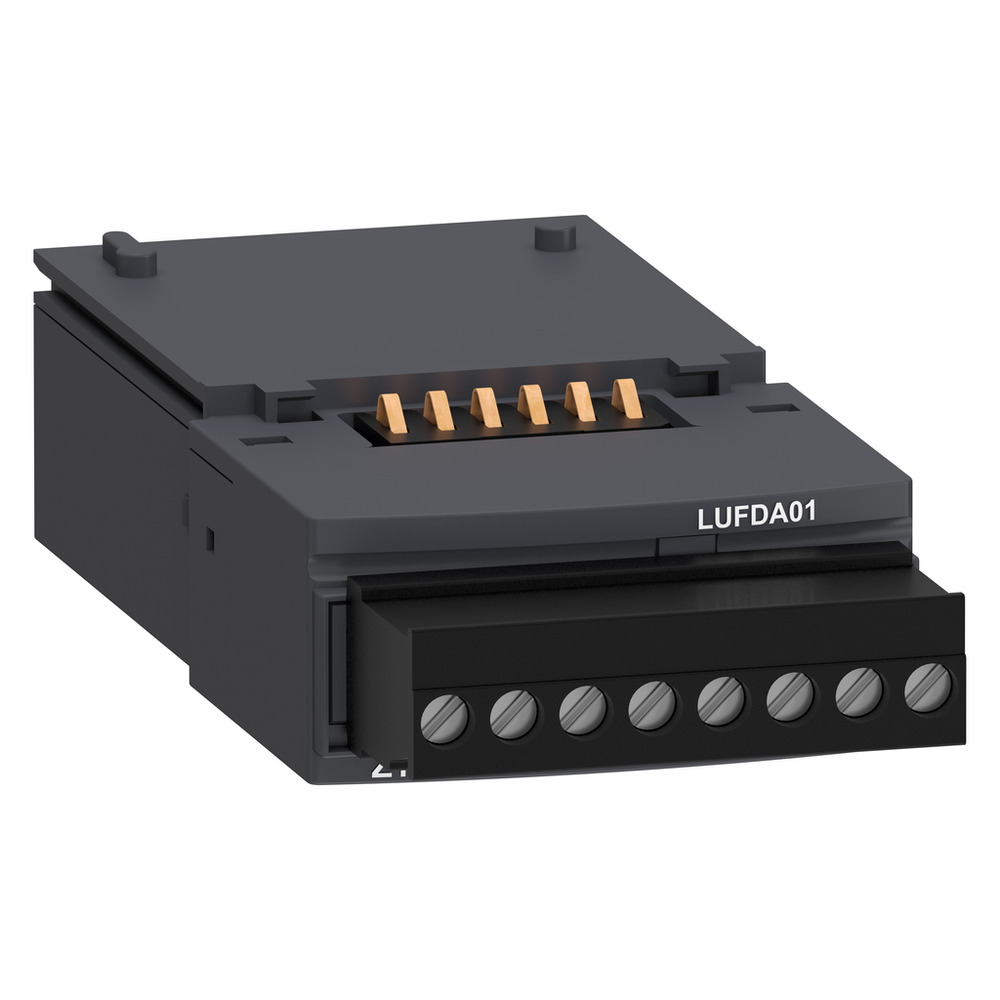

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and reset done by the power base control pad or done remotely. It provides 1NC instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).Function module, thermal overload signalling, TeSys Ultra, 1NC
Schneider Electric LUFDA01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- 1 NC
- Communication Of Faults
- LED front panel
- Connection Pitch
- 5.08 mm
- Function Available
- thermal overload signalling and automatic or remote reset
- [Ith] Conventional Free Air Thermal Current
- 2 A 70 °C
- Mounting Location
- front side
- Mounting Mode
- plug-in
- Net Weight
- 0.055 kg
- Short-Circuit Protection
- 2 A fuse gG IEC 60947-5-1
- Tightening Torque
- 0.5-0.6 N.m 3.5 mm flat
- [Us] Rated Supply Voltage
- 24...240 V DC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111214EN_V1
- Environmental Disclosure
- ENVPEP111201EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LUF
- Product Compatibility
- LUCB || LUCC || LUCD
- Product Or Component Type
- function module
- Range
- TeSys
