Schneider Electric LUFC00
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

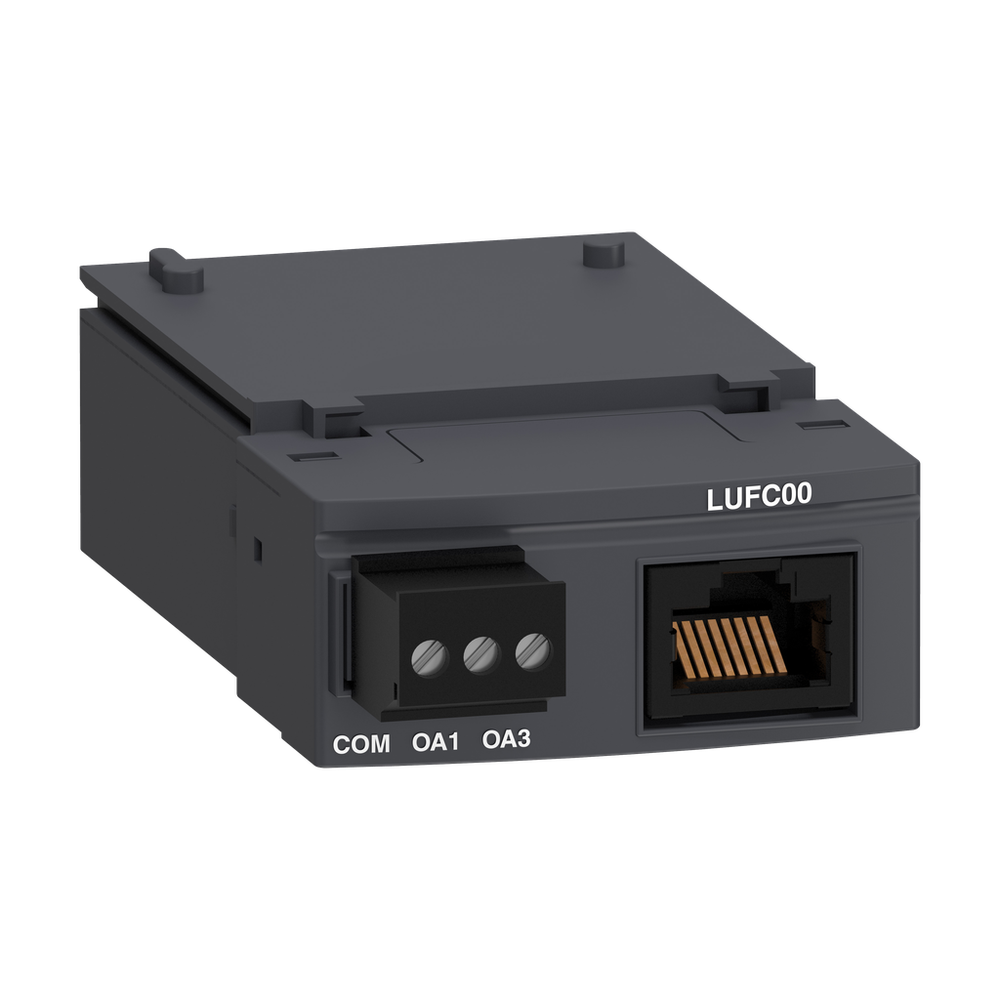

TeSys U parallel liaison module, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a 24V DC control unit LUC*BL type. It provides a RJ45 connector located in front side of module, for the connection to PLC wiring architectures (Modicon TM3, Modicon Telefast, Modicon STB). A screw terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for LUB power base or LU9MRC for LU2B power base. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).Parallel wiring module, motor starter TeSys Ultra
Schneider Electric LUFC00 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bus Type
- parallel
- Current Consumption
- 1 mA
- Function Available
- parallel wiring module
- Mounting Location
- front side
- Mounting Mode
- plug-in
- Net Weight
- 0.045 kg
Contractual warranty
- Warranty
- 18 months
Environment
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LUF
- Product Compatibility
- LUCM || LUCD || LUCA || LUCL || LUCB || LUCC
- Product Or Component Type
- parallel wiring module
- Range
- TeSys
