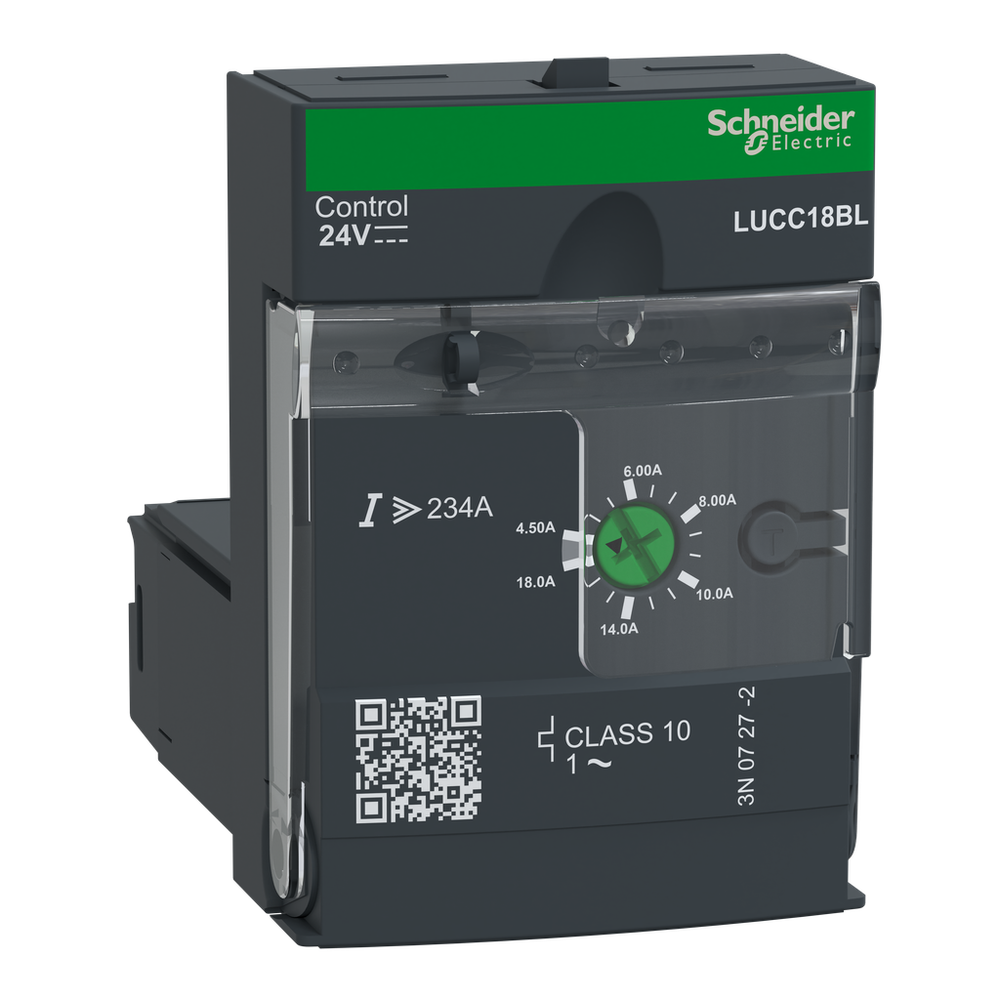

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 4kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).Advanced control unit, TeSys Ultra, 4.5A to 18A, 1P motors, protection & diagnostic, class 10, coil 24VDC
Schneider Electric LUCC18BL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- LUCC
- Control Circuit Voltage Limits
- 20...27 V DC 24 V in operation || 14.5 V DC 24 V drop-out
- Depth
- 60 mm
- Fixing Mode
- plug-in front face)
- Heat Dissipation
- 3-3 W control circuit with LUB32 || 3-3 W control circuit with LUB38
- Height
- 66 mm
- Operating Time
- 35 ms opening with LUB32 control circuit || 35 ms opening with LUB38 control circuit || 70 ms closing with LUB32 control circuit || 70 ms closing with LUB38 control circuit
- Product Certifications
- CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine
- Reset
- manual reset
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1 || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- Standards
- EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
- Typical Current Consumption
- 220 mA 24 V DC I maximum while closing with LUB32 || 220 mA 24 V DC I maximum while closing with LUB38 || 80 mA 24 V DC I rms sealed with LUB32 || 80 mA 24 V DC I rms sealed with LUB38
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Fire Resistance
- 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
- Immunity To Microbreaks
- 3 ms
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Ip Degree Of Protection
- IP20 front panel and wired terminals IEC 60947-1 || IP20 other faces IEC 60947-1 || IP40 front panel outside connection zone IEC 60947-1
- Operating Altitude
- 6561.68 ft (2000 m)
- Protective Treatment
- TH IEC 60068
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI100414
- Environmental Disclosure
- ENVPEP080204EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- motor control || motor protection
- Device Short Name
- LUCC
- Function Available
- manual reset || earth fault protection || protection against phase failure and phase imbalance || protection against overload and short-circuit
- Load Type
- single-phase motor
- Motor Power Kw
- 4 kW 400...440 V AC 50/60 Hz 1 phase
- Network Frequency
- 40...60 Hz
- Product Compatibility
- power base LUB32 || power base LUB38 || power base LUB320 || power base LUB380 || reversing contactor breaker LU2B32BL || reversing contactor breaker LU2B38BL
- Product Name
- TeSys Ultra
- Product Or Component Type
- advanced control unit
- Product Specific Application
- basic protection and advanced functions, communication
- Range
- TeSys
- Range Of Product
- TeSys Ultra
- Thermal Overload Class
- class 10 40-60 Hz -25-55 °C IEC 60947-6-2 || class 10 40-60 Hz -25-55 °C UL 508
- Thermal Protection Adjustment Range
- 4.5-18 A
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ue] Rated Operational Voltage
- 690 V AC
- Utilisation Category
- AC-44 || AC-43 || AC-41
