Schneider Electric LUB120
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

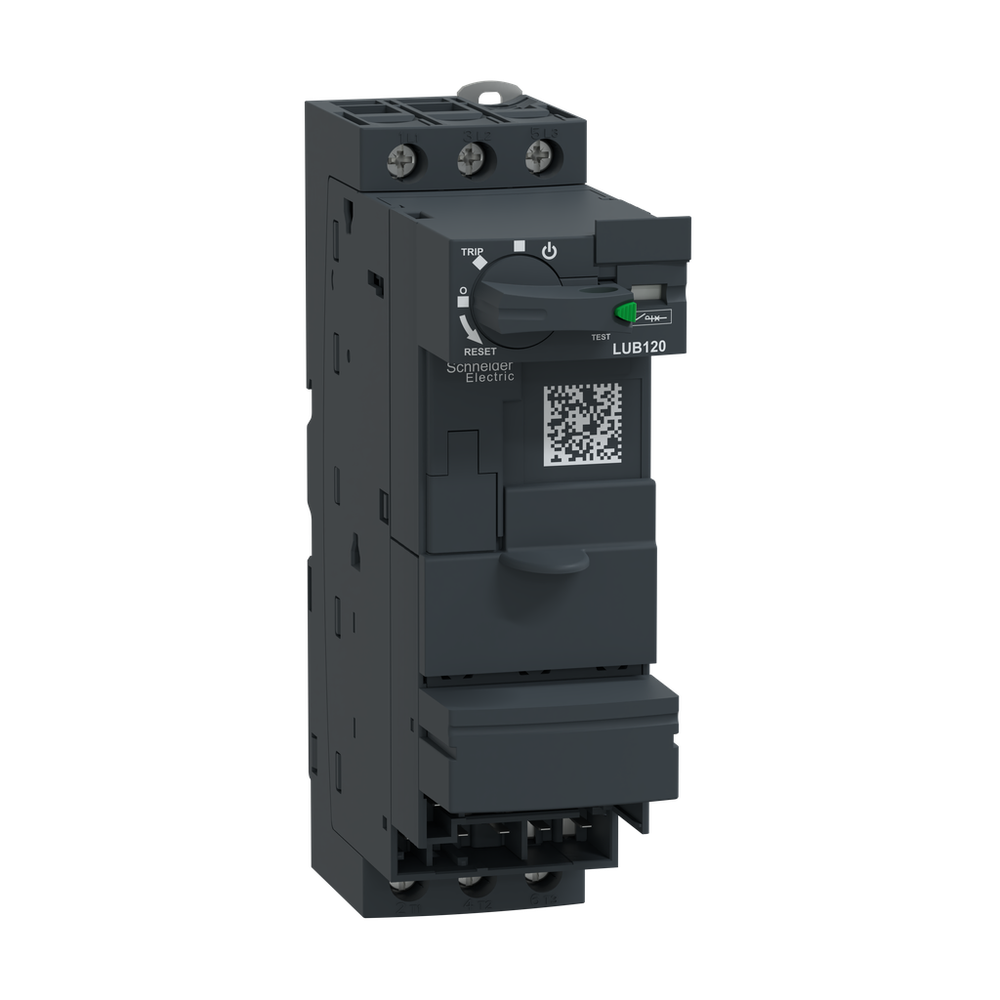

TeSys U advanced power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).Advanced power base, TeSys Ultra, 3P, 12A/690V
Schneider Electric LUB120 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- LUB
- Connections - Terminals
- power circuit screw clamp terminals 1 1-10 mm² rigid || power circuit screw clamp terminals 1 1-6 mm² flexible with cable end || power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end || power circuit screw clamp terminals 2 1-6 mm² flexible with cable end || power circuit screw clamp terminals 2 1-6 mm² rigid || power circuit screw clamp terminals 2 1.5-6 mm² flexible without cable end || control circuit without connection
- Depth
- 126 mm
- Fixing Mode
- clipped DIN rail) || screw-fixed plate)
- Heat Dissipation
- 2-2 W control circuit with LUCA, LUCB, LUCC, LUCD || 1.7-1.7 W control circuit with LUCM
- Height
- 154 mm
- Maximum Operating Rate
- 3600 cyc/h
- Mechanical Durability
- 15 Mcycles
- Net Weight
- 0.865 kg
- Operating Time
- 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit || 50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit || 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit || 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit || 75 ms closing with LUCM control circuit
- Product Certifications
- CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Standards
- EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
- Tightening Torque
- control circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips no 1 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm || power circuit 1.9-2.5 N.m pozidriv No 2 6 mm
- Typical Current Consumption
- 130 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 140 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 150 mA 24 V DC I maximum while closing with LUCM || 280 mA 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 280 mA 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 280 mA 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 280 mA 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD || 35 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD || 35 mA 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD || 35 mA 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD || 35 mA 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD || 60 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD || 70 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD || 70 mA 24 V DC I rms sealed with LUCM
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVIEC 60947-6-2
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-6-2 3) || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD
- Ambient Air Temperature For Storage
- -40-85 °C
- Fire Resistance
- 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
- Immunity To Microbreaks
- 3 ms control circuit
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Ip Degree Of Protection
- IP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone)
- Non-Dissipating Shock Wave
- 1 kV serial mode 24...240 V AC IEC 60947-6-2 || 1 kV serial mode 48...220 V DC IEC 60947-6-2 || 2 kV common mode 24...240 V AC IEC 60947-6-2 || 2 kV common mode 48...220 V DC IEC 60947-6-2
- Operating Altitude
- 6561.68 ft (2000 m)
- Protective Treatment
- TH IEC 60068
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI0802003_V1
- Environmental Disclosure
- ENVPEP080203EN_V1
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Auxiliary Contacts Type
- linked contacts 1 NO + 1 NC) IEC 60947-4-1 || mirror contact 1 NC) IEC 60947-1
- Device Application
- motor control || motor protection
- Device Short Name
- LUB
- [Ics] Rated Service Breaking Capacity
- 50 kA 230 V || 50 kA 440 V || 10 kA 500 V || 4 kA 690 V
- [Ie] Rated Operational Current
- 12 A <= 440 V || 12 A 500 V || 9 A 690 V
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Network Frequency
- 40...60 Hz
- Poles Description
- 3P
- Product Name
- TeSys Ultra
- Product Or Component Type
- non reversing power base
- Range
- TeSys
- Suitability For Isolation
- yes
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz || 24 V DC || 48...72 V AC 50/60 Hz || 48...72 V DC || 110...240 V AC 50/60 Hz || 110...220 V DC
- [Ue] Rated Operational Voltage
- 690 V AC power circuit
- Utilisation Category
- AC-43 || AC-44 || AC-41
