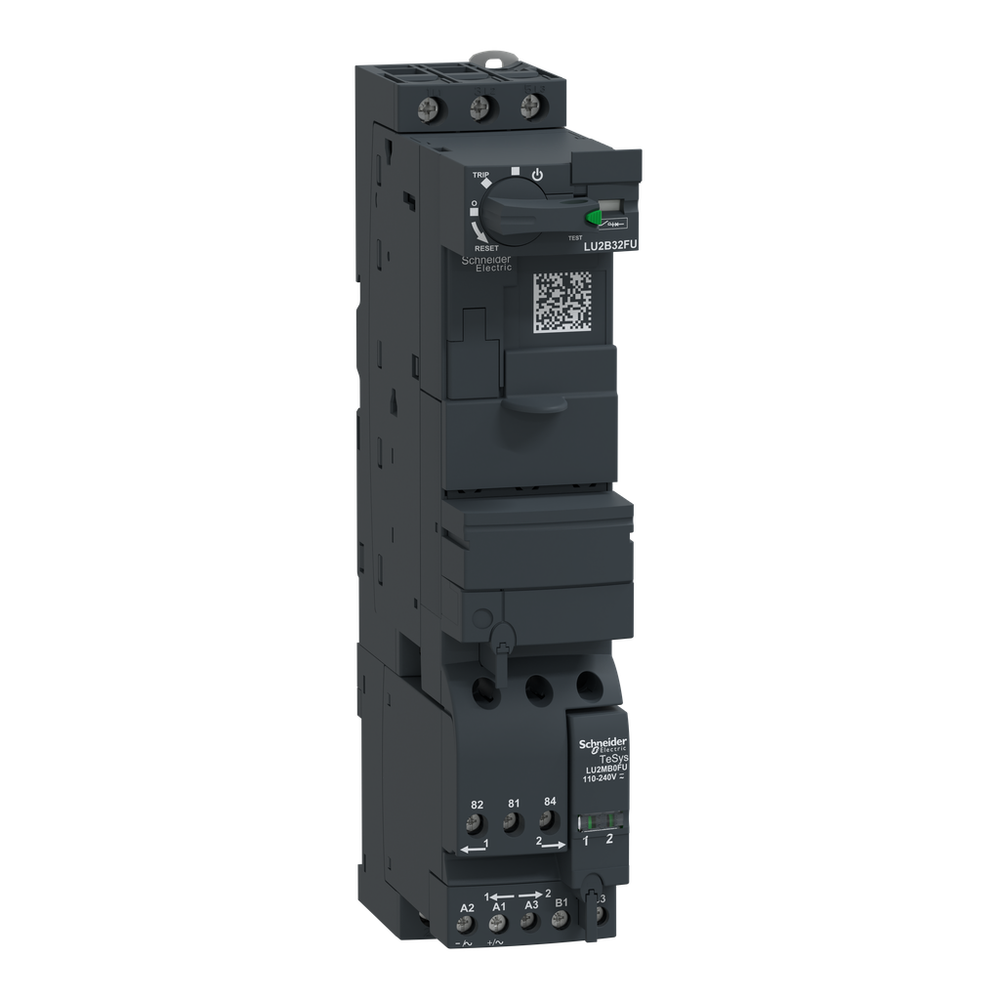

Schneider Electric LU2B32FU

Complementary

• Compatibility Code
  • LU2B
• Connections - Terminals
  • control circuit screw clamp terminals 1 0.34-1.5 mm² flexible with cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² flexible without cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² rigid || control circuit screw clamp terminals 2 0.34-1.5 mm² flexible with cable end || control circuit screw clamp terminals 2 0.75-1.5 mm² flexible without cable end || control circuit screw clamp terminals 2 0.75-1.5 mm² rigid || power circuit screw clamp terminals 1 1-10 mm² rigid || power circuit screw clamp terminals 1 1-6 mm² flexible with cable end || power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end || power circuit screw clamp terminals 2 1-6 mm² flexible with cable end || power circuit screw clamp terminals 2 1-6 mm² rigid || power circuit screw clamp terminals 2 1.5-6 mm² flexible without cable end
• Depth
  • 126 mm
• Fixing Mode
  • clipped DIN rail) || screw-fixed plate)
• Heat Dissipation
  • 3-3 W control circuit with LUCA, LUCB, LUCC, LUCD || 1.8-1.8 W control circuit with LUCM
• Height
  • 224 mm
• Inrush Restraint Duration
  • 25 ms AC 50/60 Hz || 15 ms DC
• Maximum Operating Rate
  • 3600 cyc/h
• Mechanical Durability
  • 15 Mcycles
• Net Weight
  • 1.27 kg
• Operating Time
  • 150 ms with change of direction power circuit || 35 ms opening control circuit || 75 ms without change of direction power circuit || 50 ms closing control circuit
• Product Certifications
  • CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine
• Safe Separation Of Circuit
  • 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
• Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Standards
  • EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
• Tightening Torque
  • control circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips no 1 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm || power circuit 1.9-2.5 N.m pozidriv No 2 6 mm
• Typical Current Consumption
  • 1000 mA 110...220 V DC I maximum while closing || 1000 mA 110...240 V AC I maximum while closing
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kVIEC 60947-6-2
• [Ui] Rated Insulation Voltage
  • 690 V IEC 60947-6-2 3) || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
• Width
  • 45 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD
• Ambient Air Temperature For Storage
  • -40-85 °C
• Fire Resistance
  • 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
• Immunity To Microbreaks
  • 3 ms control circuit
• Immunity To Radioelectric Fields
  • 10 V IEC 61000-4-6
• Immunity To Voltage Dips
  • 70 % / 500 ms IEC 61000-4-11
• Ip Degree Of Protection
  • IP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone)
• Non-Dissipating Shock Wave
  • 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
• Operating Altitude
  • 6561.68 ft (2000 m)
• Protective Treatment
  • TH IEC 60068
• Resistance To Electrostatic Discharge
  • 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2
• Resistance To Fast Transients
  • 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
• Resistance To Radiated Fields
  • 10 V/m 3 IEC 61000-4-3
• Shock Resistance
  • 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
• Vibration Resistance
  • 2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Auxiliary Contact Composition
  • 1 NO + 1 NC
• Auxiliary Contacts Type
  • linked contacts 1 NO + 1 NC) IEC 60947-4-1 || mirror contact 1 NC) IEC 60947-1
• Control Circuit Voltage Limits
  • 55 V DC drop-out || 55 V AC drop-out || 88...242 V DC in operation || 88...264 V AC in operation
• Device Application
  • motor control || motor protection
• Device Short Name
  • LU2B
• [Ics] Rated Service Breaking Capacity
  • 50 kA 230 V || 50 kA 440 V || 10 kA 500 V || 4 kA 690 V
• [Ie] Rated Operational Current
  • 28.5 A <= 440 V || 23 A 500 V || 21 A 690 V
• [Ith] Conventional Free Air Thermal Current
  • 32 A
• Network Frequency
  • 40...60 Hz
• Poles Description
  • 3P
• Product Compatibility
  • control unit LUC.X6FU || control unit LUC.1XFU || control unit LUC.05FU || control unit LUC.12FU || control unit LUC.18FU || control unit LUC.32FU
• Product Name
  • TeSys Ultra
• Product Or Component Type
  • reversing power base
• Range
  • TeSys
• Suitability For Isolation
  • yes
• [Uc] Control Circuit Voltage
  • 110...240 V AC 50/60 Hz || 110...220 V DC
• [Ue] Rated Operational Voltage
  • 690 V AC power circuit
• Utilisation Category
  • AC-43 || AC-44 || AC-41
