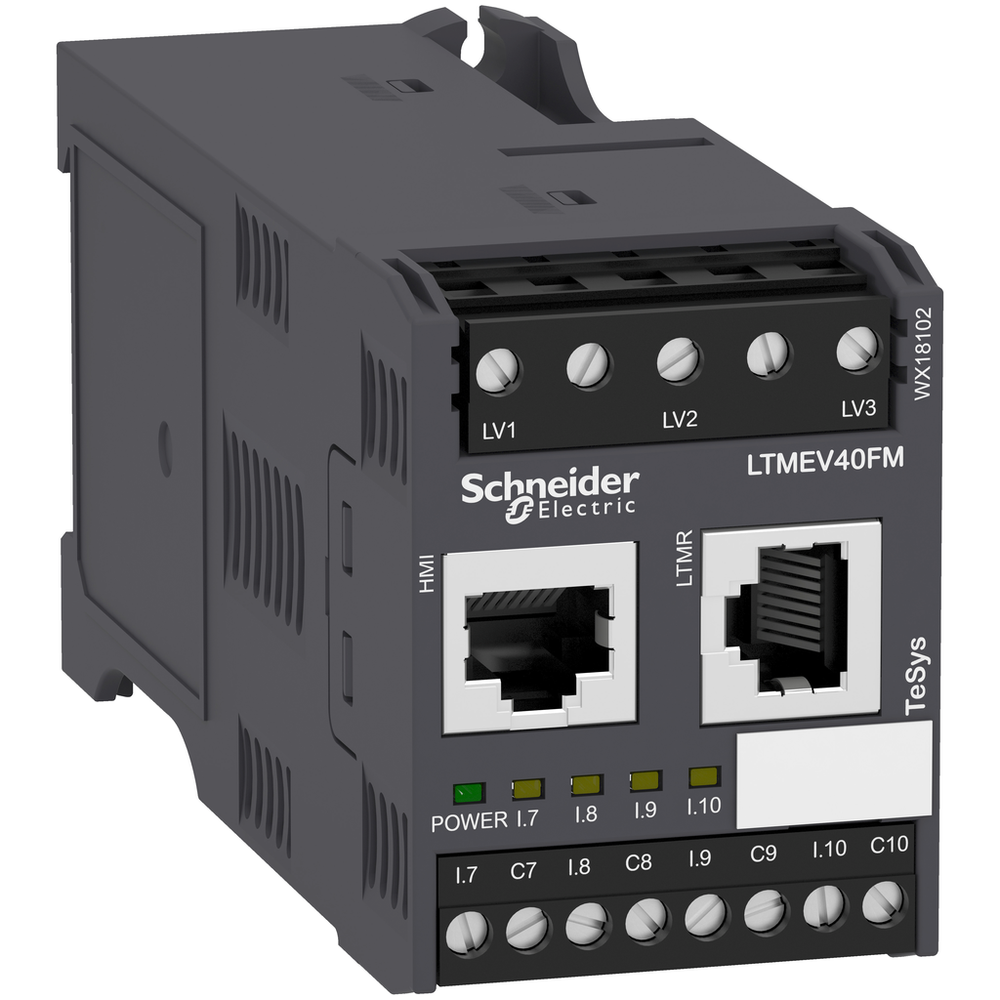

Schneider Electric LTMEV40FM
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller
Schneider Electric LTMEV40FM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- LTME
- Connection Pitch
- 5.08 mm
- Connections - Terminals
- control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end || control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
- Contacts Type And Composition
- without
- Current State 0 Guaranteed
- logic input 0...40 V 2...15 mA 25 ms
- Current State 1 Guaranteed
- logic input 79...264 V <= 15 mA 25 ms
- Depth
- 120.7 mm
- Electromagnetic Compatibility
- electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
- Height
- 61 mm
- Input Current
- 3.1 mA 100 V || 7.5 mA 240 V
- Logic Input Number
- 4
- Maximum Operating Frequency
- 2 Hz
- Maximum Operating Rate
- 1800 cyc/h
- Measurement Accuracy
- 1 % voltage 100...830 V) || 3 % power factor || 5 % active and reactive power
- Metering Type
- imbalance voltage || active power P, P1, P2, P3 || calculated active and reactive energy (+/- W.h, +/- VAR.h) || voltage U21, U32, U13, V1, V2, V3 || reactive power Q, Q1, Q2, Q3 || frequency || power factor
- Net Weight
- 0.21 kg
- Overvoltage Category
- III
- Pollution Degree
- 3
- Tightening Torque
- control circuit 0.5-0.6 N.m flat 3 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1
- [Ui] Rated Insulation Voltage
- 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Fire Resistance
- 650 °C EN/IEC 60695-2-12 || 960 °C UL 94
- Ip Degree Of Protection
- IP20
- Mechanical Robustness
- shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 || vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
- Operating Altitude
- <= 6561.68 ft (2000 m) without derating
- Product Certifications
- LROS (Lloyds register of shipping) || ATEX || NOM || EAC || RMRoS || GL || UL || DNV || BV || RINA || KERI || C-tick || CSA || CCC || ABS
- Protective Treatment
- 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
- Standards
- CSA C22.2 No 14 || IACS E10 || IEC 60947-4-1 || UL 508 || EN 60947-4-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI100411EN_V2
- Environmental Disclosure
- ENVPEP060308EN_V2
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- equipment monitoring and control
- Device Short Name
- LTME
- Product Name
- TeSys T
- Product Or Component Type
- extension module
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys T) LTMR motor controller
- Supply
- via the controller
