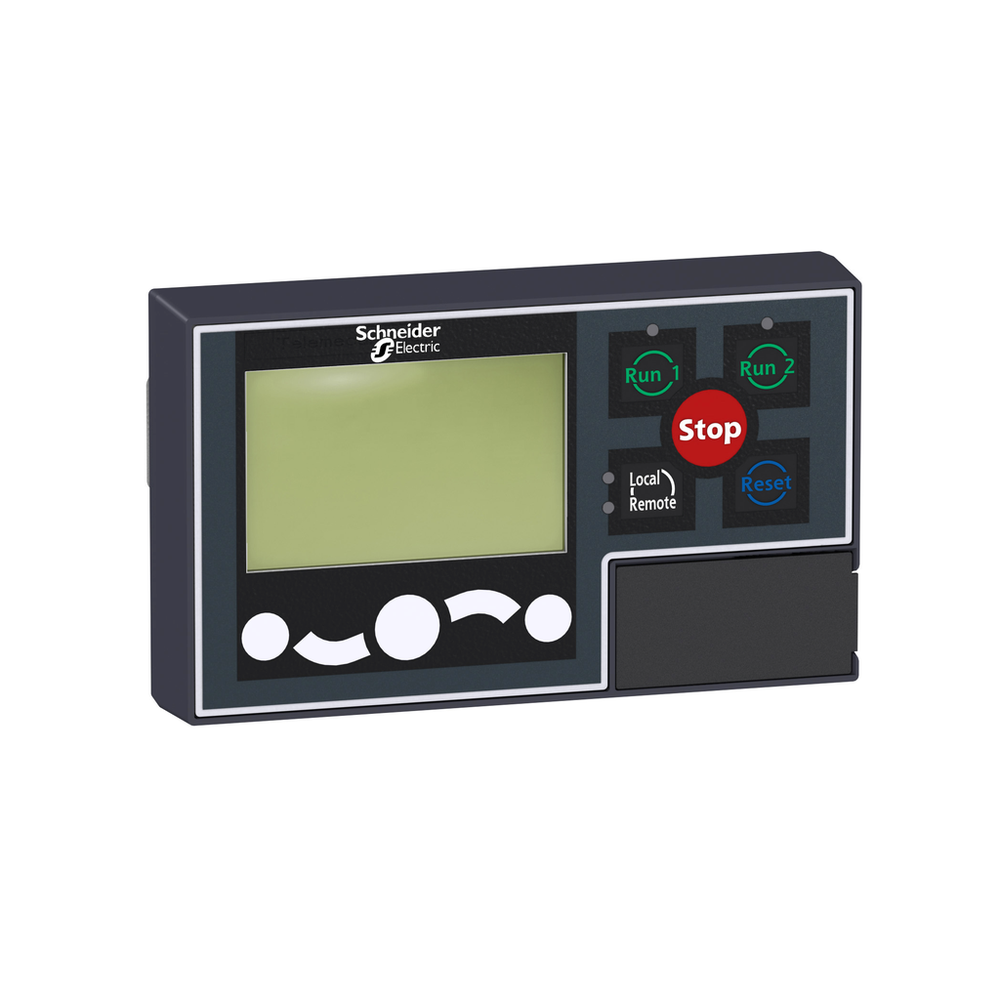

Schneider Electric LTMCU
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operactor control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller. The dimensions of this device are 70 mm (H) X 117 mm (W) X 50 mm (D) and it weighs 0.4 kg.Operator control unit, TeSys T, for LTMR controller
Schneider Electric LTMCU is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 50 mm
- Electromagnetic Compatibility
- electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6 || surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4
- Height
- 70 mm
- Ip Degree Of Protection
- IP54 EN/IEC 60947-4-1 front) || IP20 EN/IEC 60947-4-1 rear)
- Maximum Supply Current
- 140 mA
- Mounting Mode
- flush-mounted
- Net Weight
- 0.4 kg
- Power Dissipation
- 1 W
- Product Certifications
- C-tick || EAC || CSA || NOM || UL || CE
- Standards
- UL 60947-4-1A || CSA C22.2 No 60947-4-1 || EN/IEC 61131-2
- Supply
- via the controller
- Width
- 117 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Fire Resistance
- 650 °C EN/IEC 60947-1
- Flame Retardance
- V2 conforming to UL 94
- Mechanical Robustness
- shocks15 Gn for 11 ms EN/IEC 60068-2-27 || vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6
- Protective Treatment
- TC 12 humidity cycles 55 °C EN/IEC 60068-2-30
- Relative Humidity
- 15-95 %
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI100411EN_V2
- Environmental Disclosure
- ENVPEP060308EN_V2
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Button Type
- 10 push-button
- Device Connection
- connection to a LTM R controller, RJ45 rear || connection to a PC, RJ45 front
- Device Short Name
- LTMCU
- Display Type
- Backlit LCD
- Local Signalling
- 4 LEDs
- Product Or Component Type
- operator control unit
- Range
- TeSys
- Range Compatibility
- TeSys T LTMR motor controller
