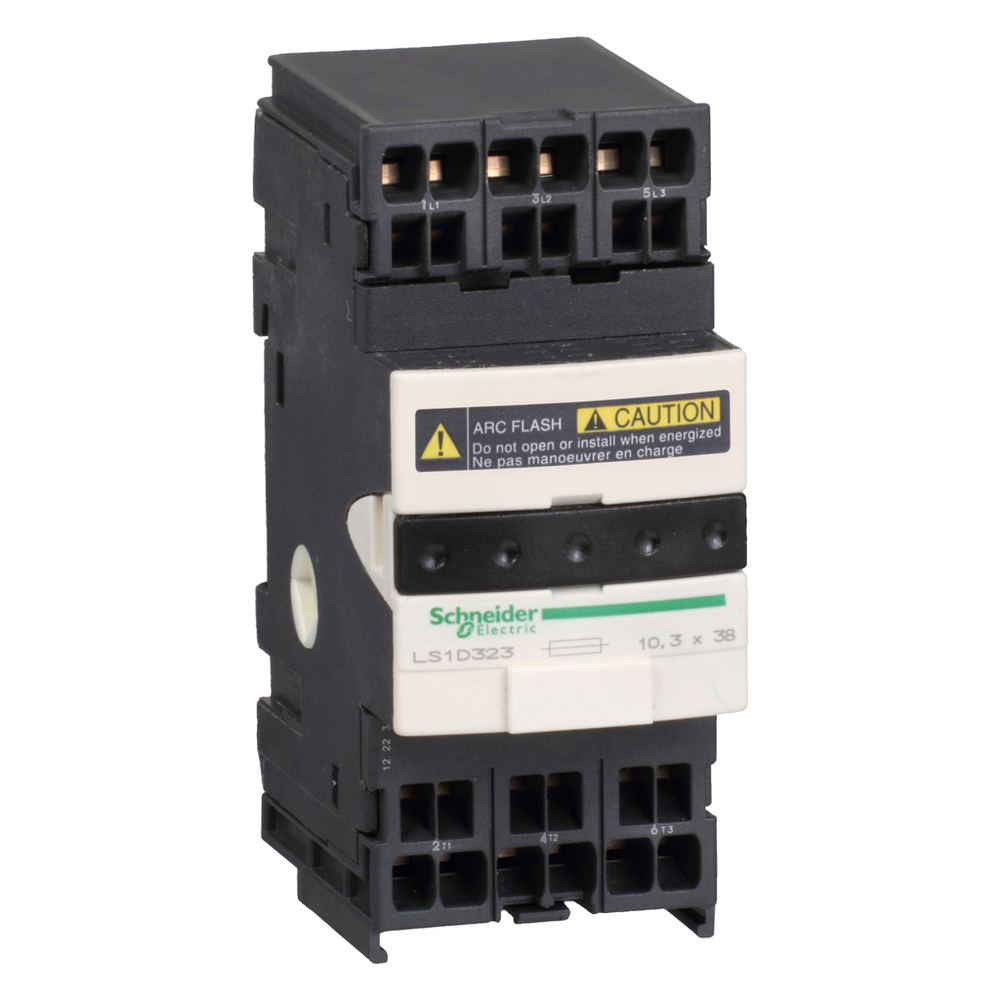

Schneider Electric LS1D323
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys LS fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 25A/690V. To be used with 10x38mm fuse links up to 25A and short circuit current up to 100kA@400V. It provides a front handle. Compact (45mm width), it can be used in modular panels, clipping on 35mm DIN rail or screw fixing on panel, connection by spring terminals, padlockable. Fuse links (10x38mm aM, gG type) and add-on auxiliaries, auxiliary signaling contact block, external handles for RH or LH side, additional contact block for 4 poles applications) are available (to be ordered separately). Multi standards certified (IEC, UL recognized), Green Premium product (RoHS/REACh).Fuse disconnector, TeSys DF, 3P, 600V, 25A, fuse size 10x38mm, spring type
Schneider Electric LS1D323 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 30 A aM || 30 A gG
- Connections - Terminals
- spring terminals 2 1-6 mm²solid || spring terminals 2 1-6 mm²flexible without cable end || spring terminals 2 1-4 mm²flexible with cable end
- Control Type
- toggle
- Fuse Size
- 10 x 38 mm
- Fuse Type
- gG || aM
- [Ie] Rated Operational Current
- 25 Apower circuit
- Local Signalling
- blown fuse indication
- Mounting Position
- vertical +/- 23°)
- Mounting Support
- rail
- [Ue] Rated Operational Voltage
- 600 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -50-70 °C operation
- Depth
- 68.3 mm
- Height
- 89 mm
- Ip Degree Of Protection
- IP20
- Net Weight
- 0.27 kg
- Product Certifications
- UR || BV
- Protective Treatment
- TH
- Standards
- IEC 60947-2 || IEC 60947-4-1 || IEC 60947-1
- Width
- 45 mm
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LS1D
- Poles Description
- 3P
- Product Name
- TeSys LS1
- Product Or Component Type
- fuse-disconnector
- Range
- TeSys
