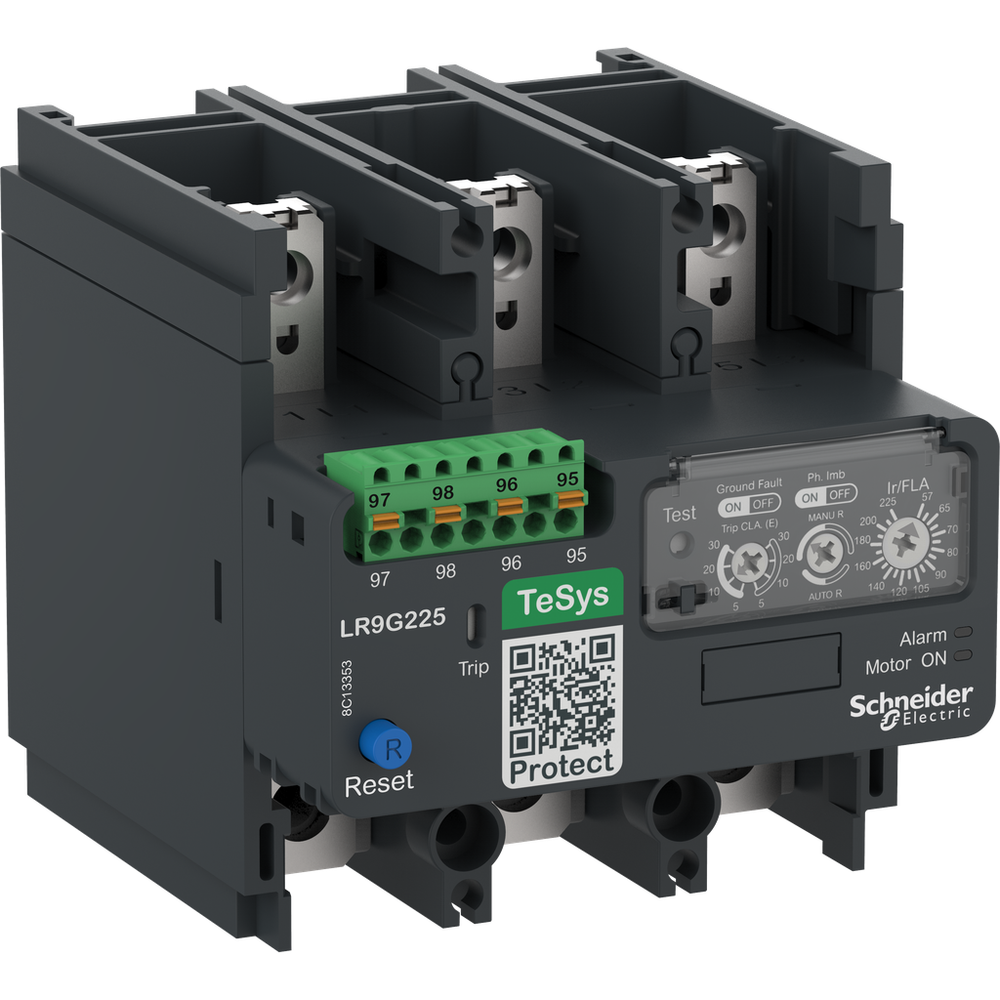

Schneider Electric LR9G225
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys LR9G 225A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.Electronic thermal overload relay,TeSys Giga,57-225 A,class 5E-30E,push-in control connection
Schneider Electric LR9G225 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- power circuit bar 25 x 6 mm || power circuit lugs-ring terminals 1 185-185 mm² || control circuit push-in 1 0.2-2.5 mm² solid stranded without cable end || control circuit push-in 1 0.25-2.5 mm² flexible with cable end || control circuit push-in 2 0.5-1.0 mm² with cable end
- Contacts Type And Composition
- 1 NO + 1 NC
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity test conforming to SEMI F47
- [Ith] Conventional Free Air Thermal Current
- 5 A
- Local Signalling
- LED || trip indicator
- Mechanical Durability
- 7000 cycles
- Mounting Support
- direct on contactor || plate
- Network Frequency
- 30...60 Hz || 100 Hz
- Overvoltage Category
- III
- Product Certifications
- CB Scheme || CCC || cULus || UKCA || ATEX || EU-RO-MR by DNV-GL || EAC
- Protection Type
- ground fault protection 0-1 s - alarm circuit IEC 60947-4-1 || ground fault protection 0-1 s - alarm circuit UL 60947-4-1 || phase loss 0-4 s - alarm circuit || phase imbalance 0-5 s - alarm circuit IEC 60947-4-1 || phase imbalance 0-5 s - alarm circuit UL 60947-4-1
- Reset
- automatic reset || manual
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 || JIS C8201-5-1
- Surge Withstand
- 4 kV
- Tightening Torque
- 18 N.m
- Tripping Threshold
- 1.125 +/- 0.07 In IEC 60947-4-1
- [Uc] Control Circuit Voltage
- 24...500 V AC 50/60 Hz || 24...250 V DC
- [Ue] Rated Operational Voltage
- 1000 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Ambient Air Transport Temperature
- -25-60 °C
- Color
- dark grey
- Depth
- 126 mm
- Height
- 107 mm
- Ip Degree Of Protection
- IP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
- Mechanical Robustness
- vibrations 5-300 Hz 6 gn contactor open || shocks 15 gn 11 ms contactor closed
- Net Weight
- 0.9 kg
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C at Uc
- Protective Treatment
- TH
- Width
- 105 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105014
- Environmental Disclosure
- ENVPEP2105014
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- LR9G
- Network Type
- AC
- Product Name
- TeSys LRG
- Product Or Component Type
- electronic thermal overload relay
- Range
- TeSys
- Relay Application
- motor protection
- Thermal Overload Class
- class 5E...30E IEC 60947-4-1
- Thermal Protection Adjustment Range
- 57-225 A
