Schneider Electric LR9D01
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

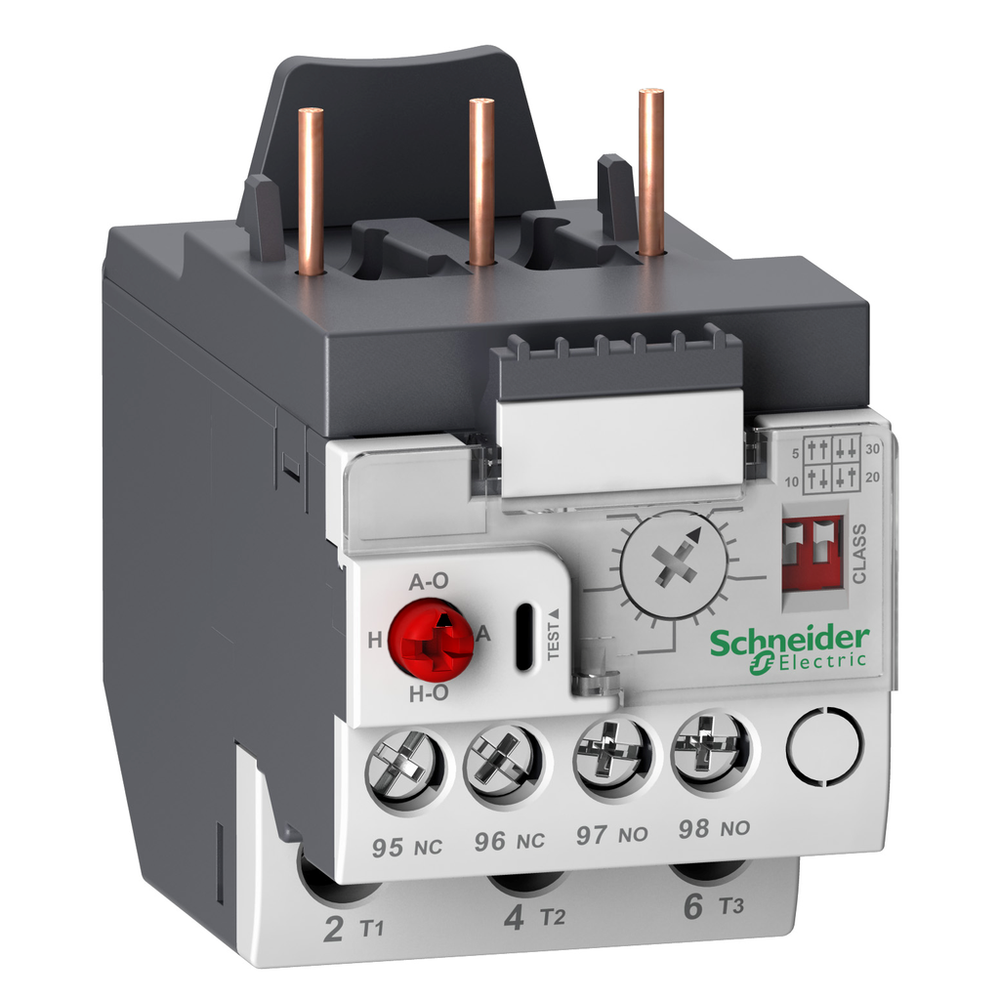

LR9D01 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 0.1-0.5A, selectable tripping class 5-10-20-30 and phase unbalance protection, it protects motors 0.06 to 0.18kW@400V. LR9D01 is a TeSys LR9D electronic overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a large thermal setting range 0.1-0.5A, a selectable tripping class 5-10-20-30 and phase unbalance detection, it protects motors 0.06 to 0.18kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). Direct mounting on the bottom terminals of a Tesys LC1D09-D38 to form a compact starter contactor to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Wide protection adjustment range 1.6-8A and selectable tripping class 5-10-20 -30. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay. Can be completed with terminal blocks and separate mounting accessories (LAD7B).Overload relay, TeSys LRD, motor protection, 0.1A to 0.5A, 3 phase, electronic thermal
Schneider Electric LR9D01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 5 A gG signalling circuit || 5 A BS signalling circuit
- Connections - Terminals
- control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
- Control Type
- Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || White dial full-load current adjustment
- Depth
- 79.9 mm
- Electromagnetic Compatibility
- surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4
- Height
- 72.5 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Net Weight
- 0.18 kg
- Phase Failure Sensitivity
- phase difference > 40% 3-3 s IEC 60947-4-1
- Tightening Torque
- control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals
- Time Range
- 1.5...4 min - automatic reset time
- Tripping Threshold
- 1.25 In IEC 60947-4-1
- [Ue] Rated Operational Voltage
- 690 V power circuit || 660 V signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- [Ui] Rated Insulation Voltage
- power circuit 1000 V || signalling circuit 690 V
- Width
- 45 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C IEC 60255-8
- Ambient Air Temperature For Storage
- -55-80 °C
- Dielectric Strength
- 6 kV 50 Hz IEC 60255-5
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations 10...150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Product Certifications
- IECEE CB Scheme || UL || CSA || CCC
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1502001EN
- Environmental Disclosure
- ENVPEP1502001EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LR9D
- Mounting Support
- under contactor || plate, with specific accessories || rail, with specific accessories
- Power Consumption In W
- 300 mW
- Product Compatibility
- LC1D09 || LC1D25 || LC1D32 || LC1D12 || LC1D38 || LC1D18
- Product Name
- TeSys LRD
- Product Or Component Type
- electronic thermal overload relay
- Range
- TeSys
- Relay Application
- motor protection
- Thermal Overload Class
- class 5…30
- Thermal Protection Adjustment Range
- 0.1-0.5 A
