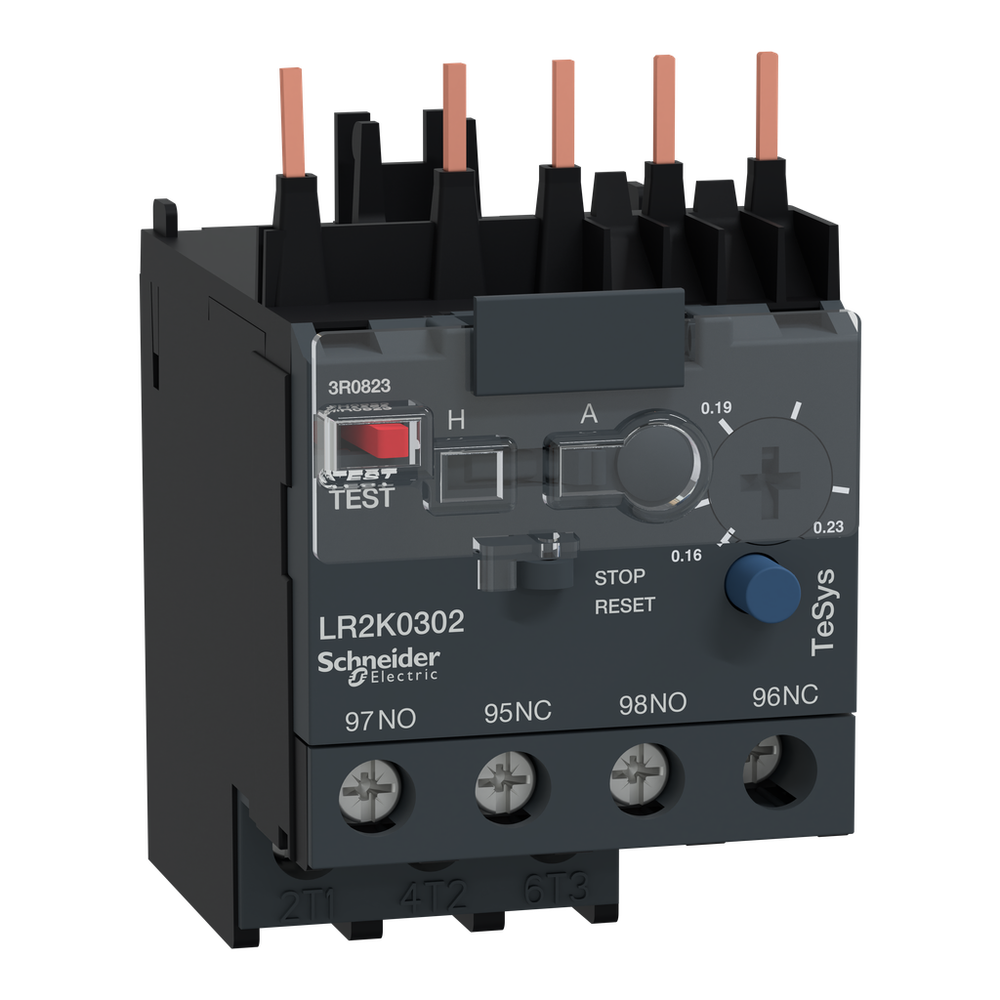

Schneider Electric LR2K0302
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
LR2K0302 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 0.06kW@400V thanks to a thermal range 0.16-0.23A, a tripping class 10A and phase unbalance protection. LR2K0302 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 0.16-0.23A, a tripping class 10A and phase unbalance detection, it protects motors 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K06 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064).Differential thermal overload relays, TeSys K, 0.16 to 0.23 A, class 10A
Schneider Electric LR2K0302 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 6 A gG signalling circuit VDE 0660 || 6 A gG signalling circuit IEC 60947
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Connections - Terminals
- screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
- Control Type
- Red push-button trip test function || Blue push-button stop and manual reset || selector switch manual or automatic reset
- Depth
- 65 mm
- Height
- 58 mm
- [Ith] Conventional Free Air Thermal Current
- 6 A signalling circuit
- Local Signalling
- trip indicator Yellow)
- Mounting Support
- under contactor || plate, with specific accessories || rail, with specific accessories
- Net Weight
- 0.145 kg
- Network Frequency
- <= 400 Hz
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Power Dissipation Per Pole
- 2 W
- Tightening Torque
- 1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
- [Ue] Rated Operational Voltage
- <= 690 V power circuit || 690 V AC AC-15 signalling circuit || 250 V DC DC-13 signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-55 °C without derating IEC 60947 || -30-60 °C with derating IEC 60947
- Ambient Air Temperature For Storage
- -40-70 °C
- Fire Resistance
- 850 °C IEC 60695-2-1
- Flame Retardance
- V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Mechanical Robustness
- shocks NO contact10 Gn for 11 ms IEC 60068-2-27 || shocks NC contact10 Gn for 11 ms IEC 60068-2-27 || vibrations NO contact2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations NC contact2 Gn, 5...300 Hz IEC 60068-2-6
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Product Certifications
- UL || CSA || UKCA
- Protective Treatment
- TC IEC 60068 || TC DIN 50016
- Standards
- VDE 0660 || NF C 63-650 || BS 4941 || IEC 60947
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2211018
- Environmental Disclosure
- ENVPEP2211018
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LR2K
- Network Type
- AC || DC
- Product Compatibility
- LC1K || LP4K || LP1K || LC7K
- Product Name
- TeSys LRK
- Product Or Component Type
- differential thermal overload relay
- Range
- TeSys
- Relay Application
- motor protection
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Thermal Protection Adjustment Range
- 0.16-0.23 A
- [Ui] Rated Insulation Voltage
- power circuit 690 V BS 4941 || power circuit 690 V IEC 60947 || power circuit 750 V VDE 0110 group C || power circuit 600 V CSA C22.2 No 14
