Schneider Electric LP1D40008BD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

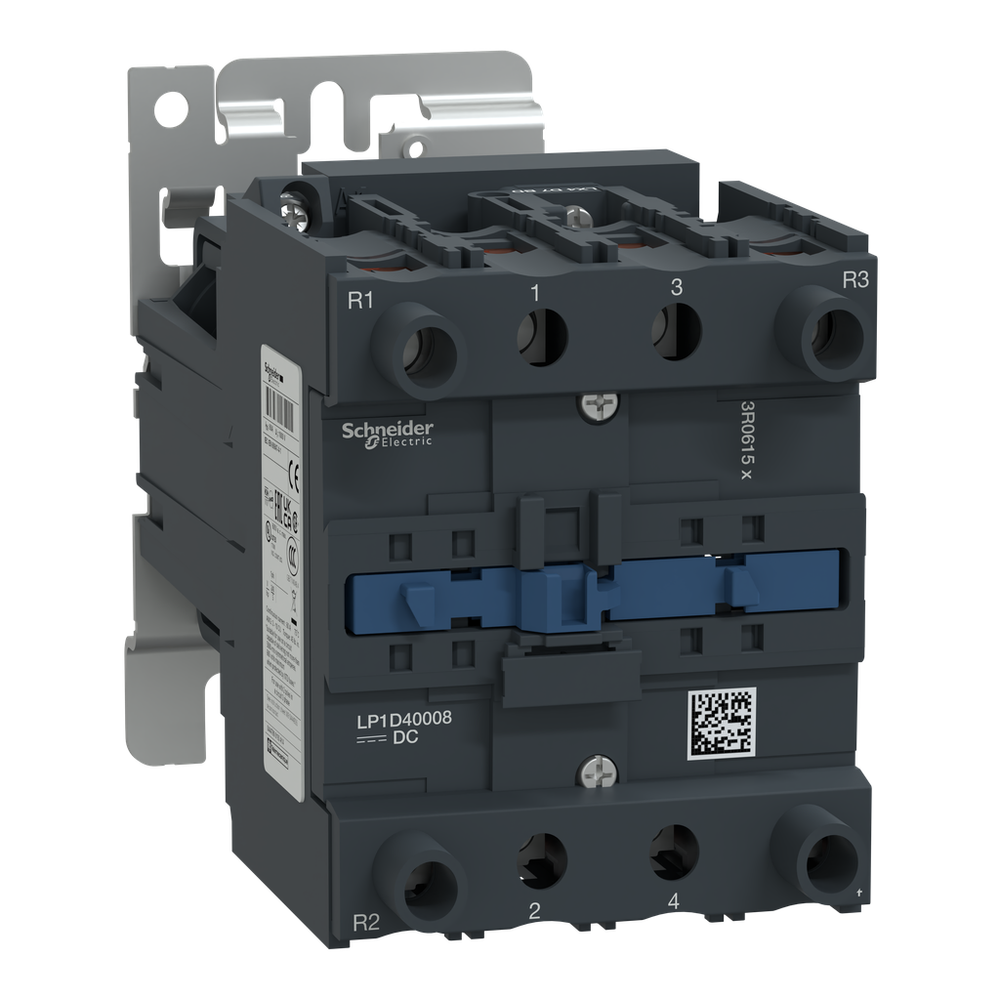

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 24 VDC coil with transient suppressor module. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.17 inches deep. It weighs 4.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 24VDC coil, open style
Schneider Electric LP1D40008BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 80 A gG <= 690 V type 1 power circuit || 80 A gG <= 690 V type 2 power circuit
- Average Impedance
- 1.5 mOhm - Ith 60 A 50 Hz power circuit
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Compatibility Code
- LP1D
- Connections - Terminals
- power circuit screw clamp terminals 1 2.5-25 mm² flexible without cable end || power circuit screw clamp terminals 2 2.5-16 mm² flexible without cable end || power circuit screw clamp terminals 1 2.5-25 mm² flexible with cable end || power circuit screw clamp terminals 2 2.5-10 mm² flexible with cable end || power circuit screw clamp terminals 1 2.5-25 mm² solid || power circuit screw clamp terminals 2 2.5-16 mm² solid || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 1 1-4 mm² solid || control circuit screw clamp terminals 2 1-4 mm² solid
- Contact Compatibility
- M3
- Control Circuit Type
- DC DC standard
- Control Circuit Voltage Limits
- 0.1...0.3 Uc -40-70 °C drop-out DC || 0.85...1.1 Uc -40-55 °C operational DC || 1...1.1 Uc 55-70 °C operational DC
- Electrical Durability
- 1.4 Mcycles 60 A AC-1 <= 440 V
- Hold-In Power Consumption In W
- 22-22 W 20 °C
- [Icw] Rated Short-Time Withstand Current
- 72 A 40 °C - 10 min power circuit || 165 A 40 °C - 1 min power circuit || 320 A 40 °C - 10 s power circuit || 720 A 40 °C - 1 s power circuit
- Inrush Power In W
- 22-22 W 20 °C)
- Irms Rated Making Capacity
- 800 A 440 V power circuit IEC 60947
- [Ith] Conventional Free Air Thermal Current
- 60 A 60 °C power circuit
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 10 Mcycles
- Mounting Support
- plate || rail
- Operating Time
- 4...19 ms opening || 12...26 ms closing
- Overvoltage Category
- III
- Pole Contact Composition
- 2 NO + 2 NC
- Pollution Degree
- 3
- Power Dissipation Per Pole
- 5.4 W AC-1
- Protective Cover
- without
- Rated Breaking Capacity
- 800 A 440 V power circuit IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Tightening Torque
- power circuit 8 N.m screw clamp terminals 25-35 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 5 N.m screw clamp terminals 1-25 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- Time Constant
- 75 ms
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
Contractual warranty
- Warranty
- 18 months
Environment
- Depth
- 182 mm
- Fire Resistance
- 850 °C IEC 60695-2-1
- Flame Retardance
- V1 conforming to UL 94
- Height
- 127 mm
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- shocks contactor open 8 Gn for 11 ms) || shocks contactor closed 10 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)
- Net Weight
- 2.21 kg
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C || 60-70 °C with derating
- Product Certifications
- UL || CSA || CCC || EAC || UKCA || CB || DNV-GL || RINA || BV || LROS (Lloyds register of shipping)
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
- Width
- 85 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- resistive load
- Device Short Name
- LP1D
- [Ie] Rated Operational Current
- 60 A 60 °C) <= 440 V AC AC-1 power circuit
- Poles Description
- 4P
- Product Or Component Type
- contactor
- Range
- TeSys
- Range Of Product
- TeSys Deca
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ue] Rated Operational Voltage
- power circuit <= 1000 V AC 25...400 Hz
- Utilisation Category
- AC-1
