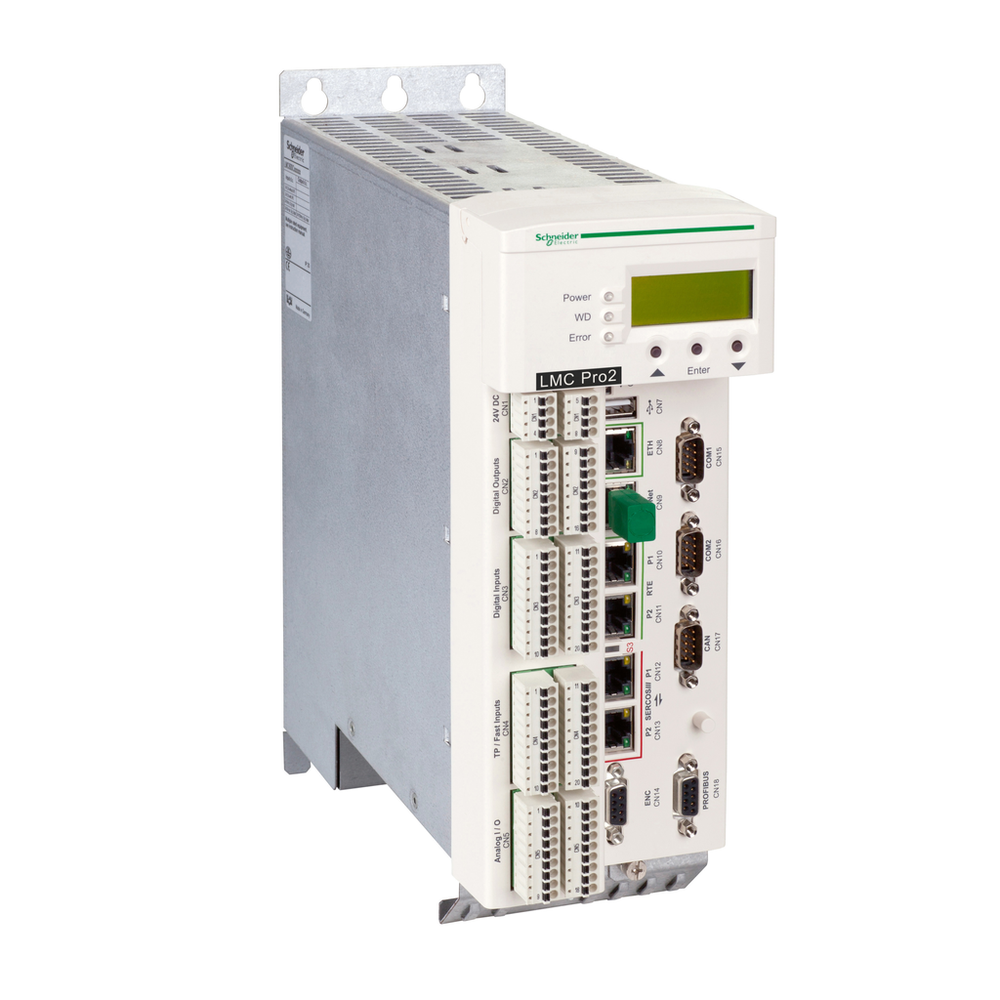

Schneider Electric LMC802CCB10000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Motion controller LMC802 130 axis - Acc kit - USP + OM CAN
Schneider Electric LMC802CCB10000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Number
- 2
- Analogue Input Resolution
- 12 bits
- Analogue Input Type
- voltage analog input - 10...10 V || current analog input - 20...20 mA
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input
- Depth
- 243 mm
- Discrete Input Current
- 5 mA digital input || 5 mA interrupt input || 5 mA touch probe input
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1
- Discrete Input Voltage
- 0...6 V || 20...33 V
- Discrete Input Voltage Type
- DC
- Discrete Output Current
- 250 mA digital output
- Discrete Output Number
- 16 digital output || 2 analog output
- Height
- 310 mm
- Input Impedance
- 100000 Ohm analog input || 500 Ohm
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link SUB-D 9 RS422/RS485 || 1 port SUB-D 9 master encoder || 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
- Maximum Leakage Current
- 0.4 mA
- Maximum Number Of I/O Expansion Module
- 2
- Memory Type
- 256 kB NVRAM || 1 GB RAM DDR3L
- Net Weight
- 3.5 kg
- Number Of Axis
- 130
- Power Consumption In W
- 36 W
- Product Compatibility
- LMC802
- Programming Language
- IL (instruction list) || LD (ladder) || FBD (function block diagram) || ST (structured text) || SFC (sequential function chart) || CFC (continuous function chart)
- Supply
- power supply 24 VDC, <1 A
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 100 mm
Environment
- Ambient Air Temperature For Operation
- 5-55 °C
- Ip Degree Of Protection
- IP20EN/IEC 60529
- Pollution Degree
- 2 IEC 61131-2
- Product Certifications
- EAC || CE || cULus || CSA
- Relative Humidity
- 5-95 % without condensation
- Shock Resistance
- 150 m/s² 6 ms operation)EN/IEC 60721-3-3
- Standards
- CSA C22.2 No 274 || UL 508C || CSA C22.2 No 14 || EN/IEC 61131-2
- Vibration Resistance
- 3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1411004EN
- Environmental Disclosure
- ENVPEP1411004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Or Component Type
- motion controller
- Range Of Product
- PacDrive 3
