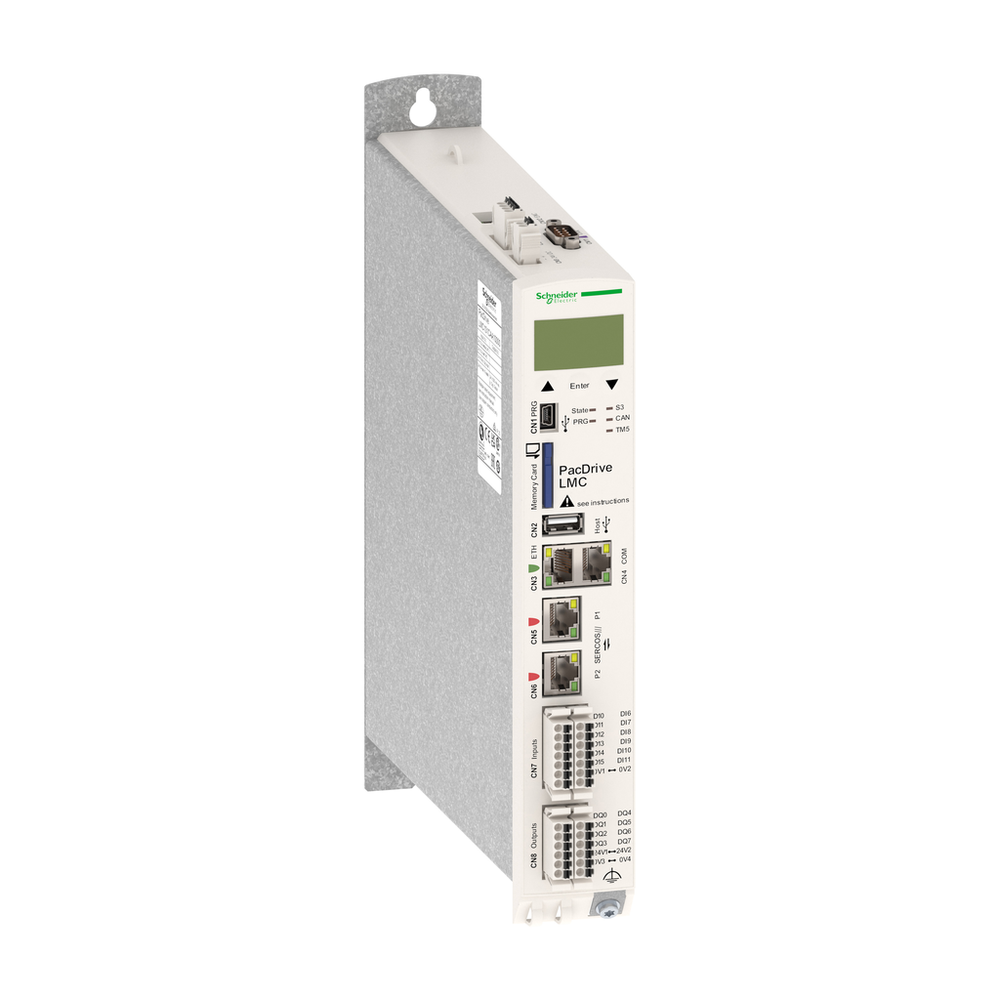

Schneider Electric LMC101CAA10000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 4 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.Motion controller LMC101 4 axis - Acc kit - Basic
Schneider Electric LMC101CAA10000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Anti Bounce Filtering
- 100 µs...4.29 s configurable digital input || 100 µs...4.29 s configurable touch probe input || 100 µs...4.29 s configurable interrupt input
- Depth
- 222 mm
- Discrete Input Current
- 4 mA digital input
- Discrete Input Number
- 8 digital input IEC 61131-2 Type 1 || 4 touch probe input IEC 61131-2 Type 1
- Discrete Input Voltage
- 15...30 V || - 3...5 V
- Discrete Input Voltage Type
- DC
- Discrete Output Current
- 500 mA digital output
- Discrete Output Number
- 8 digital output
- Height
- 270 mm
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos || 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP || 1 Ethernet port RJ45 master encoder || 1 serial link RJ45 RS232/RS485 || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A
- Maximum Cable Distance Between Devices
- <50 m
- Maximum Leakage Current
- 0.5 mA
- Maximum Number Of I/O Expansion Module
- 1
- Memory Type
- 512 MB RAM DDR2 || 128 kB NVRAM
- Net Weight
- 2.2 kg
- Number Of Axis
- 4
- Power Consumption In W
- 30 W
- Product Compatibility
- LMC101
- Programming Language
- IL (instruction list) || CFC (continuous function chart) || SFC (sequential function chart) || LD (ladder) || ST (structured text) || FBD (function block diagram)
- Supply
- power supply 24 VDC
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 44 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 5-55 °C
- Ip Degree Of Protection
- IP20EN/IEC 60529
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 2 IEC 61131-2
- Product Certifications
- EAC || CE || cULus || CSA
- Relative Humidity
- 5-95 % without condensation
- Shock Resistance
- 150 m/s² 6 ms operation)EN/IEC 60721-3-3
- Standards
- UL 508 || CSA C22.2 No 142 || CSA C22.2 No 14 || EN/IEC 61131-2
- Vibration Resistance
- 3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403026EN
- Environmental Disclosure
- ENVPEP1403026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Or Component Type
- motion controller
- Range Of Product
- PacDrive 3
