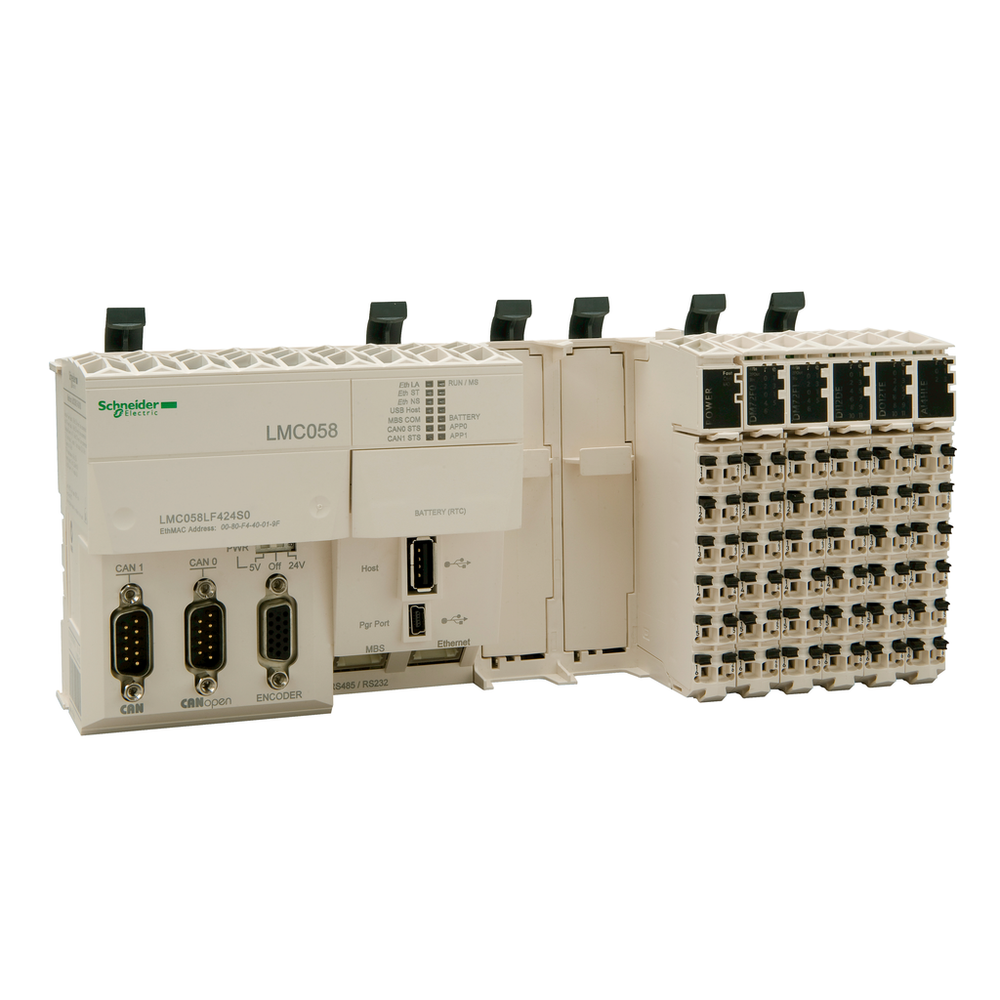

Schneider Electric LMC058LF424

Complementary

• Analogue Input Number
  • 4
• Analogue Input Resolution
  • 12 bits
• Analogue Input Type
  • current 0...20 mA || current 4...20 mA || voltage +/- 10 V
• Anti Bounce Filtering
  • 2 µs...4 ms configurable fast input/regular input and fast output
• Battery Life
  • 1.5 year(s)
• Configurable Filtering Time
  • 0 ms fast input/regular input and fast output || 1.5 ms fast input/regular input and fast output || 12 ms fast input/regular input and fast output || 4 ms fast input/regular input and fast output
• Counting Input Number
  • 8 200 kHz
• Data Backed Up
  • battery variables of type retain and retain persistent
• Depth
  • 85 mm
• Discrete Input Current
  • 4 mA fast input || 4 mA regular input
• Discrete Input Logic
  • sink fast input || sink regular input || source input
• Discrete Input Number
  • 10 fast input || 12 input || 4 regular input
• Discrete Input Voltage
  • 24 V
• Discrete Input Voltage Type
  • DC
• Discrete Output Current
  • 4 mA fast output
• Discrete Output Logic
  • source
• Discrete Output Number
  • 12 output || 4 fast output
• Discrete Output Voltage
  • 24 V DC
• Height
  • 99 mm
• Input Impedance
  • 6 kOhm fast input || 6 kOhm regular input
• Insulation
  • between channels and internal logic 500 V AC || non-insulated between channels
• Integrated Connection Type
  • 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps || 1 CAN port male SUB-D 9 CANmotion bus or CANopen master || 1 CAN port male SUB-D 9 CANopen master || 1 encoder female SUB-D 15 || 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX || 1 isolated serial link mini B USB 480 Mbit/s || 1 isolated serial link USB type A 480 Mbit/s || 2 free slots PCI
• Line Rated Current
  • 0.04 A embedded expert modules power || 10 A I/O power segment || 0.3 A main supply
• Local Signalling
  • 1 LED CAN0 STS || 1 LED green/red CAN1 STS || 1 LED green/yellow MBS COM || 1 LED per channel APP0 || 1 LED red APP1
• Marking
  • CE
• Maximum Cable Distance Between Devices
  • <30 m fast input
• Memory Type
  • 128 MB flash || 64 MB RAM
• Mounting Support
  • symmetrical DIN rail
• Net Weight
  • 0.77 kg
• Output Voltage Limits
  • 19.2...28.8 V
• Peak Current
  • 100 kA <= 70 s)main supply || 25 kA <= 500 s)I/O power segment || 50 kA <= 150 s)embedded expert modules power || 1.2 A > 70 s)main supply
• Power Consumption In W
  • 14.14 W
• Realtime Clock
  • without any user calibration < 30 s/month 25-25 °C || with user calibration <= 6 s/month
• Supply Voltage Limits
  • 20.4-28.8 V
• Transmission Rate
  • 10 kbit/s 5000-5000 m CANopen || 1000 kbit/s 4-4 m CANopen || 125 kbit/s 500-500 m CANopen || 20 kbit/s 2500-2500 m CANopen || 250 kbit/s 250-250 m CANopen || 50 kbit/s 1000-1000 m CANopen || 500 kbit/s 100-100 m CANopen || 800 kbit/s 25-25 m CANopen
• [Us] Rated Supply Voltage
  • 24 V DC embedded expert modules power
• Voltage State 0 Guaranteed
  • <= 5 V fast input || <= 5 V fast output || <= 5 V regular input
• Voltage State 1 Guaranteed
  • >= 15 V fast input || >= 15 V fast output || >= 15 V regular input
• Width
  • 237.5 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Disturbance Radiated/Conducted
  • CISPR 11
• Electromagnetic Compatibility
  • electrostatic discharge immunity test - test level: 8 kV (on contact) conforming to EN/IEC 61000-4-2 || conducted RF disturbances conforming to EN/IEC 61000-4-6 || conducted and radiated emissions conforming to CISPR 11 || electrostatic discharge immunity test - test level: 4 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 1 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to EN/IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4 || surge immunity test - test level: 0.5 kV (differential mode) conforming to EN/IEC 61000-4-5 || surge immunity test - test level: 1 kV (common mode) conforming to EN/IEC 61000-4-5
• Ip Degree Of Protection
  • IP20IEC 61131-2
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2 IEC 60664
• Product Certifications
  • cULus || CSA || C-tick || GOST-R
• Relative Humidity
  • 5-95 % without condensation
• Shock Resistance
  • 15 gn 11 ms
• Standards
  • UL 508 || IEC 61131-2 || CSA C22.2 No 213 || CSA C22.2 No 142
• Storage Altitude
  • 0-3000 m
• Vibration Resistance
  • 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Battery Type
  • 3 V CR2477M lithium
• Discrete I/O Number
  • 42
• Product Or Component Type
  • motion controller
• Range Of Product
  • Modicon LMC058
