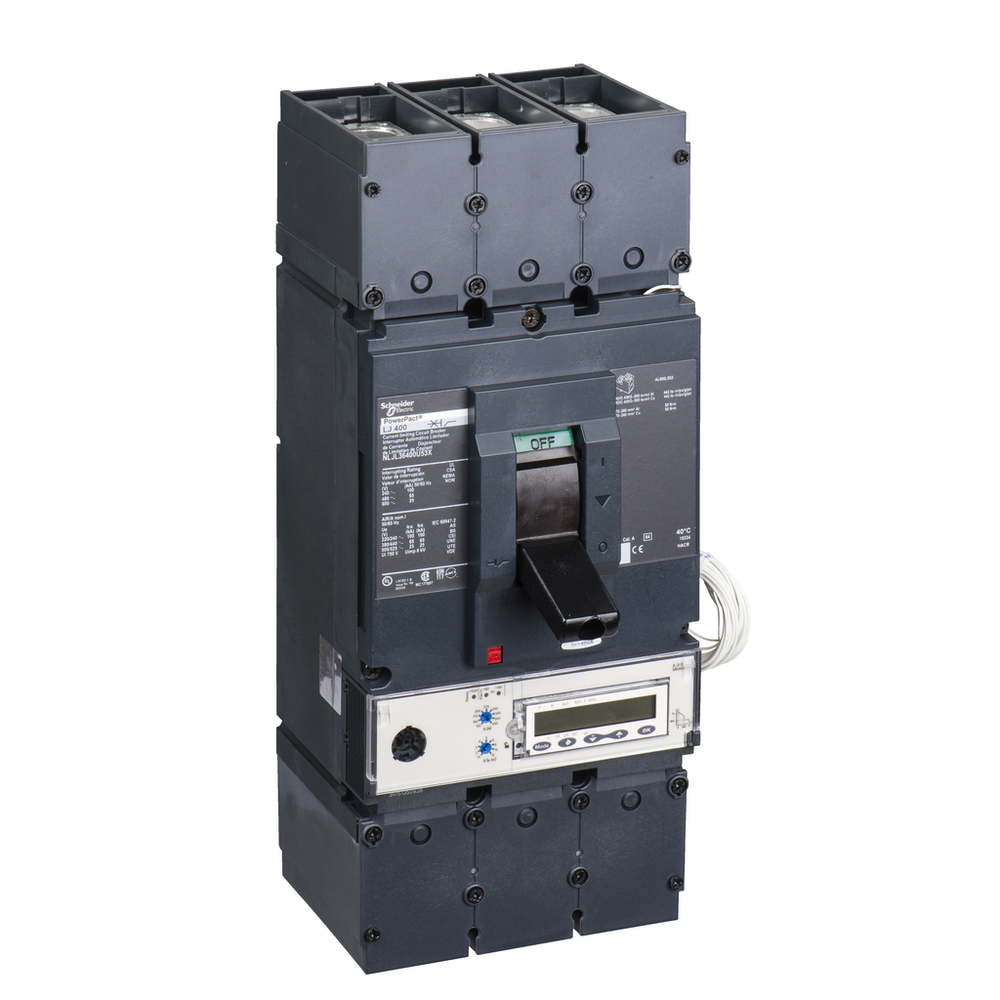

Schneider Electric LLL37040D30
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.Circuit breaker, PowerPacT L, 400A, 3 pole, 500VDC, 50kA, lugs, thermal magnetic, 80%
Schneider Electric LLL37040D30 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Breaking Capacity
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Breaking Capacity Code
- L
- Circuit Breaker Application
- HACR rated
- Color
- Black
- Communication Interface
- Modbus || Ethernet
- Control Type
- toggle
- Depth
- 110 mm
- Electrical Connection
- lugs, line || lugs, load
- Height
- 340 mm
- [Ics] Rated Service Breaking Capacity
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Magnetic Tripping Current
- 1000-2000 A
- Mounting Mode
- unit mount lug)
- Mounting Support
- lug
- Net Weight
- 6.2 kg
- Poles Description
- 3P
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL600LS52K3
- Tightening Torque
- 50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 500 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Utilisation Category
- category A
- Width
- 140 mm
- Wire Stripping Length
- 31 mm || 61 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -2-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Ip Degree Of Protection
- front cover IP40
- Operating Altitude
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pollution Degree
- 3 IEC 60947-1
- Product Certifications
- UL || CSA || NOM
- Standards
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1406010EN
- Environmental Disclosure
- ENVPEP1406010EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- distribution
- Device Short Name
- L-Frame
- Product Name
- PowerPact L
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
