Schneider Electric LK4TU3N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

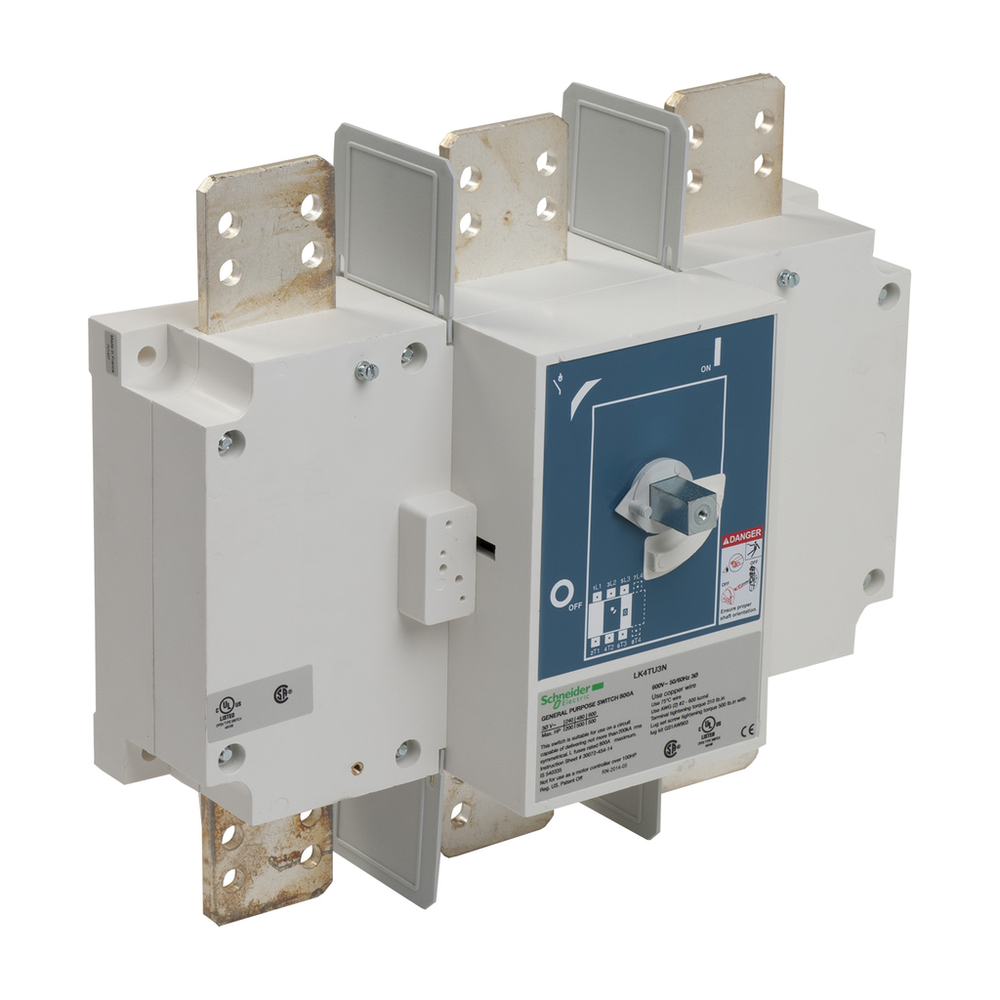

TeSys LK - disconnect switch -3P - 800A - AC
Schneider Electric LK4TU3N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- lugs-ring terminals 2 34-34 mm² || bars 2 40 x 5 mm
- Control Type
- rotary handle
- Depth
- 140 mm
- Electrical Durability
- 500 cycles
- Height
- 320 mm
- [Icw] Rated Short-Time Withstand Current
- 75 kA
- [Ie] Rated Operational Current
- 800 A400 V AC AC-22A IEC || 800 A400 V AC AC-23A IEC || 630 A690 V AC AC-22A IEC || 400 A690 V AC AC-23A IEC || 800 A CSA || 800 A UL
- Mechanical Durability
- 3500 cycles
- Mounting Support
- plate
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Poles Description
- 3P
- Rated Power In Hp
- 200 hp 240 V 480 A AC || 500 hp 480 V 477 A AC || 500 hp 600 V 336 A AC
- Rated Power In W
- 450 kW 400 V || 560 kW 500 V || 400 kW 690 V
- Type Of Operating Handle
- external right side || external frontal
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 12 kV IEC
- [Ui] Rated Insulation Voltage
- 1000 V
- Width
- 370 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CE || CSA || UL
- Standards
- CSA C22.2 No 4 || IEC 60947-3 || UL98
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Disconnector Device Type
- non-fusible disconnect switch
- Product Name
- TeSys LK
- Product Or Component Type
- Disconnect Switch
- Range
- TeSys
- Suitability For Isolation
- yes
