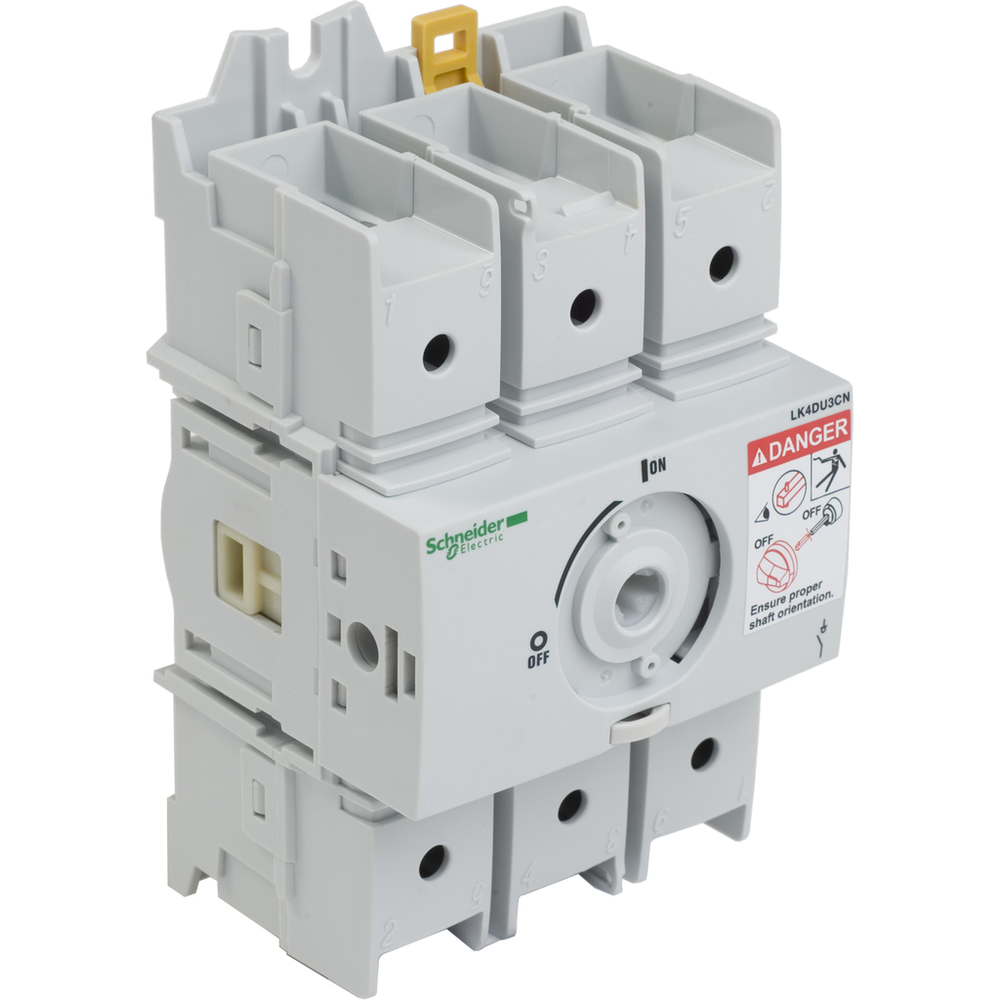

Schneider Electric LK4DU3CN
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Disconnect Switch, TeSys LK4 Non fusible, 25hp at 600VAC, 3 pole, max 32A rated, plate mount
Schneider Electric LK4DU3CN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- lugs-ring terminals 1 4-4 mm²
- Control Type
- rotary handle
- Depth
- 64 mm
- Electrical Durability
- 6000 cycles
- Height
- 125 mm
- [Icw] Rated Short-Time Withstand Current
- 5.5 kA
- [Ie] Rated Operational Current
- 32 A400 V AC AC-22A IEC || 32 A400 V AC AC-23A IEC || 32 A690 V AC AC-22A IEC || 32 A690 V AC AC-23A IEC || 30 A CSA || 30 A UL
- Mechanical Durability
- 10000 cycles
- Mounting Support
- plate
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Poles Description
- 3P
- Rated Power In Hp
- 10 hp 240 V 30 A AC || 20 hp 480 V 28 A AC || 25 hp 600 V 28 A AC
- Rated Power In W
- 15 kW 400 V || 18.5 kW 500 V || 25 kW 690 V
- Type Of Operating Handle
- external frontal || external right side
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC
- [Ui] Rated Insulation Voltage
- 690 V
- Width
- 79.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CE || CSA || UL
- Standards
- UL98 || IEC 60947-3 || CSA C22.2 No 4
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Disconnector Device Type
- non-fusible disconnect switch
- Product Name
- TeSys LK
- Product Or Component Type
- Disconnect Switch
- Range
- TeSys
- Suitability For Isolation
- yes
