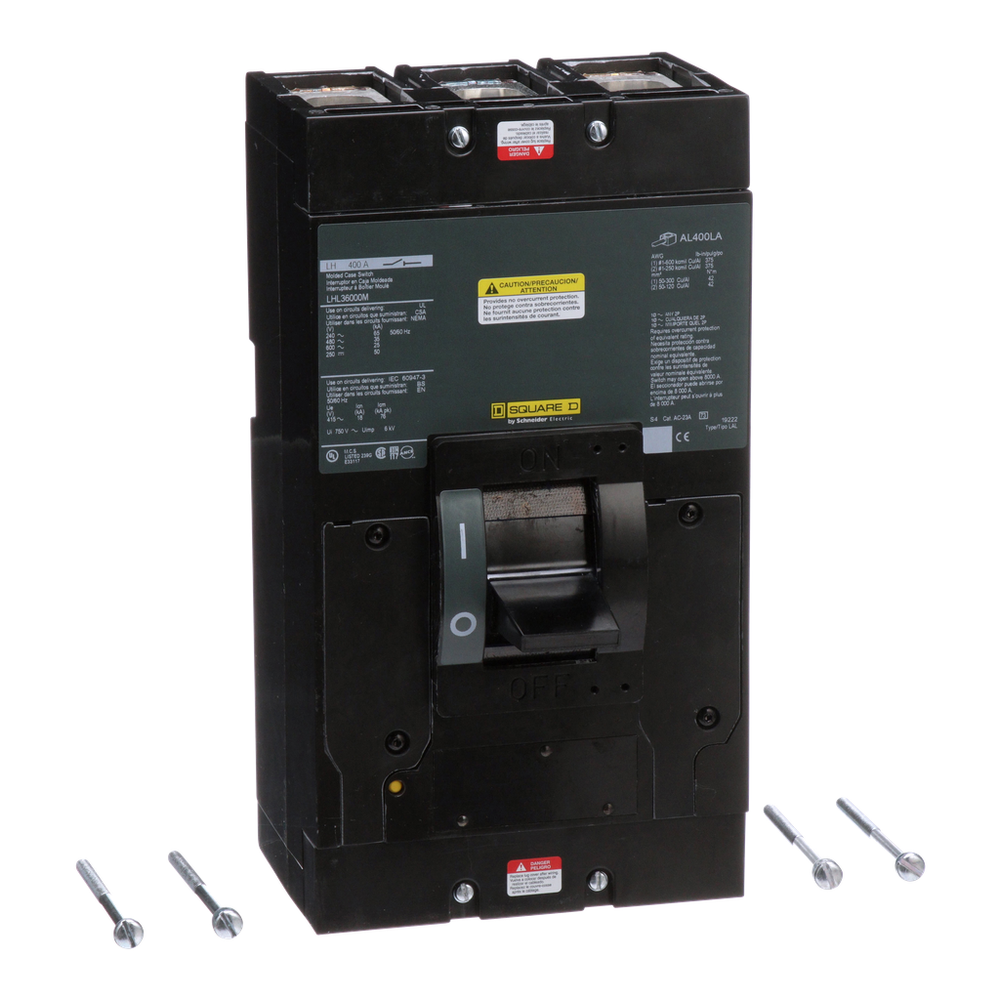

Schneider Electric LHL36000M
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Square D LH automatic molded case switches open instantaneously at a factory preset magnetic trip point to protect the switch from high fault currents. They may be interlocked with another switch or circuit breaker to form a source-changeover system This Square D LH Molded Case Circuit Breaker is a 3 pole unit mount, 400A and 600VAC. It has a magnetic tripping current of 9600A. LH molded case switches are UL 489, CSA, IEC certified. .Automatic switch, LH, 400A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, unit mount
Schneider Electric LHL36000M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity Code
- H
- Circuit Breaker Application
- HACR rated
- Depth
- 5.84 in
- Electrical Connection
- lugs, load
- Height
- 11 in
- Line Rated Current
- 400 A
- Magnetic Hold Current
- 8000 A
- Magnetic Tripping Current
- 9600-9600 A
- Mounting Mode
- unit mount
- Poles Description
- 3P
- Terminal Identifier
- AL400LA
- Tightening Torque
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Width
- 6 in
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- IEC || CSA || UL Listed
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1410004EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Or Component Type
- circuit breaker
- Trip Unit Technology
- thermal-magnetic
