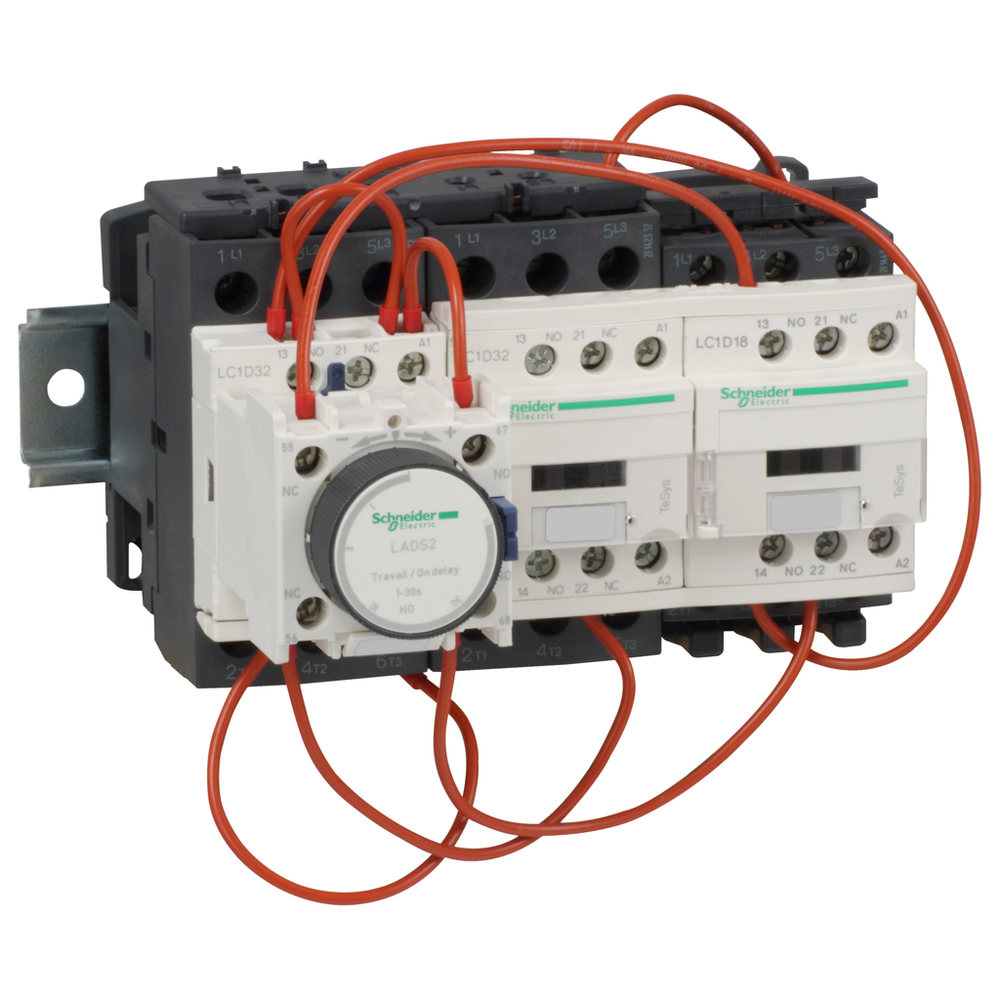

Schneider Electric LC3D32AF7

Complementary

• Auxiliary Contacts Type
  • mechanically linked IEC 60947-5-1 3 x 1 NO + 1 NC || mirror contact IEC 60947-4-1 3 x 1 NC
• Coil Technology
  • without built-in suppressor module
• Connections - Terminals
  • control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 1 1-4 mm² solid without cable end || control circuit screw clamp terminals 2 1-4 mm² solid without cable end || power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-10 mm² flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm² flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm² solid without cable end || power circuit screw clamp terminals 2 2.5-10 mm² solid without cable end
• Control Circuit Voltage Limits
  • drop-out 0.3...0.6 Uc 50/60 Hz 60 °C) || operational 0.8...1.1 Uc 50 Hz 60 °C) || operational 0.85...1.1 Uc 60 Hz 60 °C)
• Depth
  • 149 mm
• Heat Dissipation
  • 2-3 W 50/60 Hz
• Height
  • 124 mm
• Hold-In Power Consumption In Va
  • 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C)
• Inrush Power In Va
  • 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C)
• Maximum Operating Rate
  • 30 cyc/h 60 °C
• Mechanical Durability
  • 15 Mcycles
• Minimum Switching Current
  • 5 mA signalling circuit
• Net Weight
  • 2.03 kg
• Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Signalling Circuit Frequency
  • 25...400 Hz
• Starting Time
  • 30 s
• Switching Voltage
  • 17 V signalling circuit
• Tightening Torque
  • control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2
• Width
  • 166 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -40-70 °C at Uc
• Ambient Air Temperature For Storage
  • -60-80 °C
• Climatic Withstand
  • IACS E10 || IEC 60947-1 Annex Q category D
• Fire Resistance
  • 850 °C IEC 60695-2-1
• Flame Retardance
  • V1 conforming to UL 94
• Insulation Resistance
  • > 10 MOhm signalling circuit
• Ip Degree Of Protection
  • IP20 front face IEC 60529
• Mechanical Robustness
  • vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
• Operating Altitude
  • 9842.52 ft (3000 m) without derating
• Pollution Degree
  • 3
• Protective Treatment
  • TH IEC 60068-2-30

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Auxiliary Contact Composition
  • 1 NC KM1 star contactor
• Contactor Application
  • motor control
• Control Circuit Type
  • AC 50/60 Hz
• Device Presentation
  • pre-wired
• Device Short Name
  • LC3D
• Electrical Durability
  • 1.65 Mcycles 32 A AC-3 <= 440 V
• [Ie] Rated Operational Current
  • 32 A 60 °C) <= 440 V AC AC-3 power circuit
• Interlocking Type
  • mechanical
• Motor Power Kw
  • 15 kW 220/230 V AC 50/60 Hz || 25 kW 380/400 V AC 50/60 Hz || 30 kW 415 V AC 50/60 Hz || 30 kW 440 V AC 50/60 Hz
• Mounting Support
  • plate
• Overvoltage Category
  • III
• Pole Contact Composition
  • 3 x 3 NO
• Poles Description
  • 3 x 3P
• Product Certifications
  • RINA || GL || GOST || BV || DNV || CCC || CSA || LROS (Lloyds register of shipping) || UL
• Product Name
  • TeSys Deca
• Product Or Component Type
  • star delta starter
• Provided Equipment
  • protective cover
• Range
  • TeSys || TeSys Deca
• Standards
  • EN 60947-5-1 || EN 60947-4-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-4-1 || IEC 60947-5-1 || IEC 60335-1
• [Uc] Control Circuit Voltage
  • 110 V AC 50/60 Hz
• [Ue] Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV IEC 60947
• [Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
• Utilisation Category
  • AC-3
