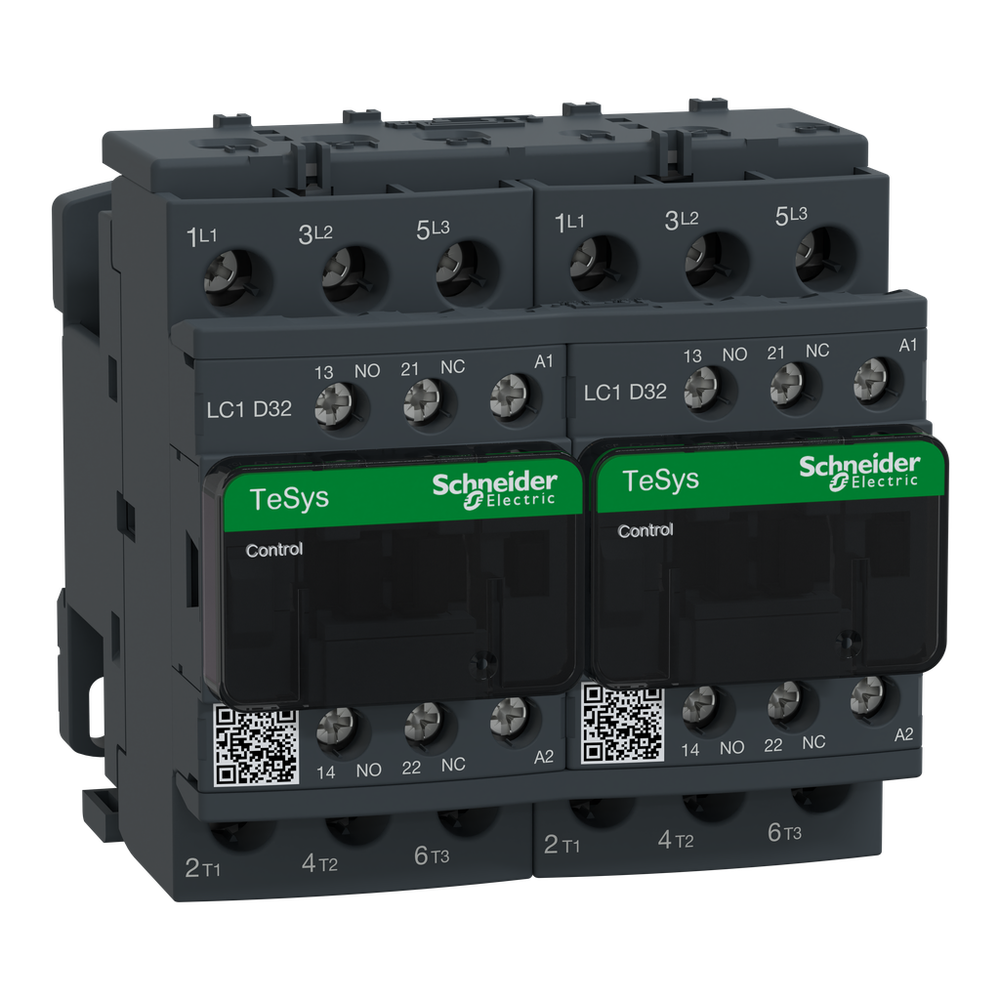

Schneider Electric LC2D32FE7

Complementary

• Auxiliary Contacts Type
  • mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
• Coil Technology
  • without built-in suppressor module
• Control Circuit Voltage Limits
  • 0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz
• Heat Dissipation
  • 2-3 W 50/60 Hz
• Hold-In Power Consumption In Va
  • 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C)
• Inrush Power In Va
  • 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C)
• Insulation Resistance
  • > 10 MOhm signalling circuit
• Minimum Switching Current
  • 5 mA signalling circuit
• Minimum Switching Voltage
  • 17 V signalling circuit
• Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Signalling Circuit Frequency
  • 25...400 Hz

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -40-60 °C || 60-70 °C with derating
• Ambient Air Temperature For Storage
  • -60-80 °C
• Climatic Withstand
  • IACS E10 || IEC 60947-1 Annex Q category D
• Depth
  • 92 mm
• Fire Resistance
  • 850 °C IEC 60695-2-1
• Flame Retardance
  • V1 conforming to UL 94
• Height
  • 85 mm
• Ip Degree Of Protection
  • IP20 front face IEC 60529
• Mechanical Robustness
  • vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
• Net Weight
  • 0.797 kg
• Operating Altitude
  • 0...9842.52 ft (0...3000 m)
• Pollution Degree
  • 3
• Protective Treatment
  • TH IEC 60068-2-30
• Width
  • 90 mm

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Pro-active China RoHS declaration (out of China RoHS legal scope)
• Circularity Profile
  • null
• Environmental Disclosure
  • ENVPEP110229EN
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Associated Fuse Rating
  • 10 A gG signalling circuit IEC 60947-5-1 || 63 A gG <= 690 V type 1 power circuit || 63 A gG <= 690 V type 2 power circuit
• Auxiliary Contact Composition
  • 1 NO + 1 NC
• Average Impedance
  • 2 mOhm - Ith 50 A 50 Hz power circuit
• Connections - Terminals
  • control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid || power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 1 1-10 mm²flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm²solid || power circuit screw clamp terminals 2 2.5-10 mm²solid
• Contactor Application
  • resistive load || motor control
• Control Circuit Type
  • AC 50/60 Hz
• Device Presentation
  • preassembled with reversing power busbar
• Device Short Name
  • LC2D
• Electrical Durability
  • 1.65 Mcycles 32 A AC-3 <= 440 V || 1.4 Mcycles 50 A AC-1 <= 440 V || 1.65 Mcycles 32 A AC-3e <= 440 V
• [Icw] Rated Short-Time Withstand Current
  • 60 A 40 °C - 10 min power circuit || 138 A 40 °C - 1 min power circuit || 260 A 40 °C - 10 s power circuit || 430 A 40 °C - 1 s power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
• [Ie] Rated Operational Current
  • 32 A 60 °C) <= 440 V AC AC-3 power circuit || 50 A 60 °C) <= 440 V AC AC-1 power circuit || 32 A 60 °C) <= 440 V AC AC-3e power circuit
• Interlocking Type
  • mechanical
• Irms Rated Making Capacity
  • 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 550 A 440 V power circuit IEC 60947
• [Ith] Conventional Free Air Thermal Current
  • 10 A 60 °C signalling circuit || 50 A 60 °C power circuit
• Maximum Horse Power Rating
  • 2 hp 115 V at AC 60 Hz for 1 phase || 5 hp 230/240 V at AC 60 Hz for 1 phase || 10 hp 200/208 V at AC 60 Hz for 3 phase || 10 hp 230/240 V at AC 60 Hz for 3 phase || 20 hp 460/480 V at AC 60 Hz for 3 phase || 30 hp 575/600 V at AC 60 Hz for 3 phase
• Maximum Operating Rate
  • 3600 cyc/h 60 °C
• Mechanical Durability
  • 15 Mcycles
• Motor Power Kw
  • 7.5 kW 220...230 V AC 50-60 Hz || 15 kW 380...400 V AC 50-60 Hz || 15 kW 415 V AC 50-60 Hz || 15 kW 440 V AC 50-60 Hz || 18.5 kW 500 V AC 50-60 Hz || 18.5 kW 660...690 V AC 50-60 Hz
• Mounting Support
  • plate || rail
• Operating Time
  • 12...22 ms closing || 4...19 ms opening
• Overvoltage Category
  • III
• Pole Contact Composition
  • 3 NO
• Poles Description
  • 3P
• Power Dissipation Per Pole
  • 2 W AC-3 || 5 W AC-1 || 2 W AC-3e
• Product Certifications
  • UL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA
• Product Name
  • TeSys D || TeSys Deca
• Product Or Component Type
  • reversing contactor
• Protective Cover
  • with
• Range
  • TeSys || TeSys Deca
• Rated Breaking Capacity
  • 550 A 440 V power circuit IEC 60947
• Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Standards
  • CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
• Tightening Torque
  • control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
• [Uc] Control Circuit Voltage
  • 115 V AC 50/60 Hz
• [Ue] Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV IEC 60947
• [Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
• Utilisation Category
  • AC-1 || AC-3 || AC-3e
