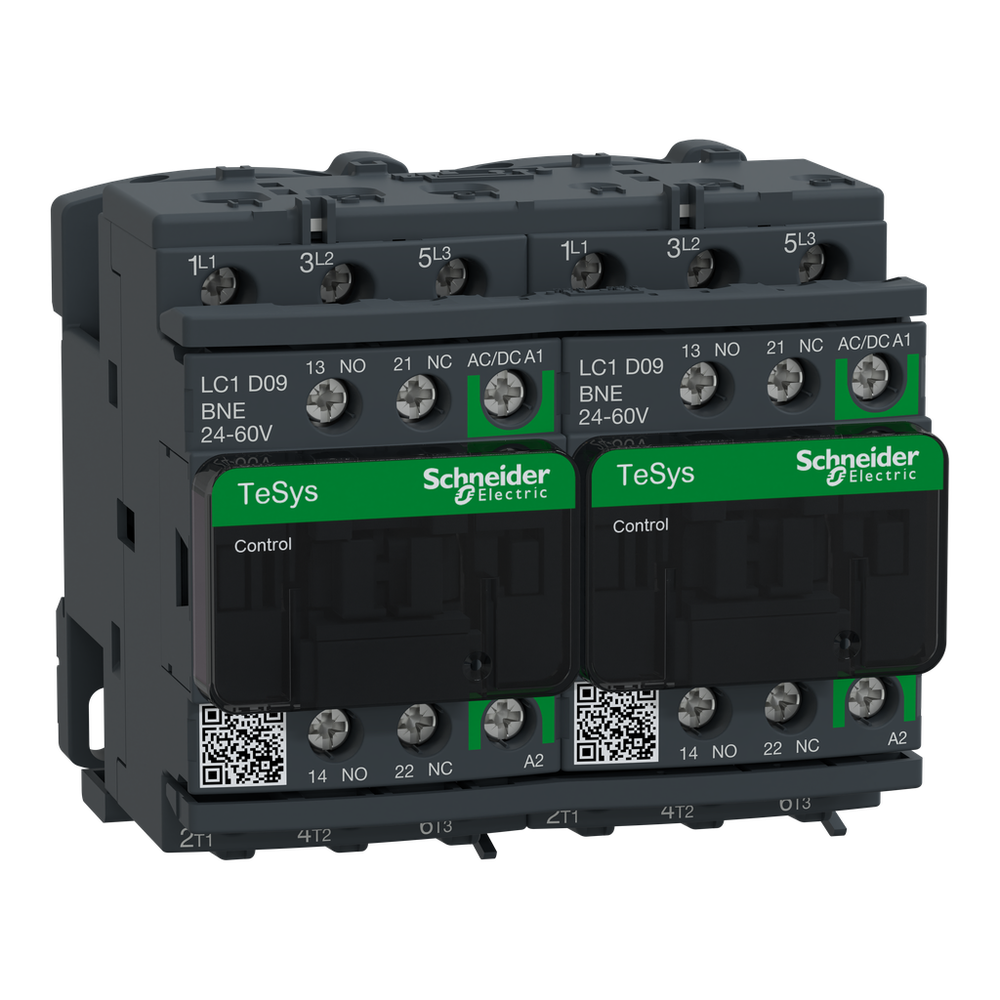

LC2D09BNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24-60V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D09BNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 4kW@400V. It includes a 24-60V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 9A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.TeSys Deca reversing contactor - 3P - <= 440 V - 9 A AC-3 - 24...60 V AC/DC coil
Schneider Electric LC2D09BNE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Coil Technology
- built-in bidirectional peak limiting
- Control Circuit Voltage Limits
- <= 0.1 Uc -40-70 °C drop-out AC/DC || 0.85...1.1 Uc -40-60 °C operational AC || 0.8...1.1 Uc -40-60 °C operational DC || 1...1.1 Uc 60-70 °C operational AC/DC
- Heat Dissipation
- 0.6-0.6 W 50/60 Hz
- Hold-In Power Consumption In Va
- 0.9-0.9 VA 20 °C) 50/60 Hz
- Hold-In Power Consumption In W
- 0.6-0.6 W 20 °C
- Inrush Power In Va
- 15-15 VA 50/60 Hz 20 °C)
- Inrush Power In W
- 14-14 W 20 °C
- Insulation Resistance
- > 10 MOhm signalling circuit
- Minimum Switching Current
- 5 mA signalling circuit
- Minimum Switching Voltage
- 17 V signalling circuit
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Signalling Circuit Frequency
- 25...400 Hz
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Ambient Air Temperature For Storage
- -60-80 °C
- Climatic Withstand
- IACS E10 || IEC 60947-1 Annex Q category D
- Color
- Gray SE GREY 6) || Green SE GREEN 2)
- Depth
- 86 mm
- Fire Resistance
- 850 °C IEC 60695-2-1
- Flame Retardance
- V1 conforming to UL 94
- Height
- 77 mm
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Net Weight
- 0.783 kg
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Pollution Degree
- 3
- Protective Treatment
- TH IEC 60068-2-30
- Width
- 90 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1609001EN
- Environmental Disclosure
- ENVPEP1609001EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts & cables product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Associated Fuse Rating
- 10 A gG signalling circuit IEC 60947-5-1 || 25 A gG <= 690 V type 1 power circuit || 20 A gG <= 690 V type 2 power circuit
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Average Impedance
- 2.5 mOhm - Ith 25 A 50 Hz power circuit
- Connections - Terminals
- power circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || power circuit screw clamp terminals 1 1-4 mm²solid || power circuit screw clamp terminals 2 1-4 mm²solid || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid
- Contactor Application
- motor control || resistive load
- Control Circuit Type
- AC 50/60 Hz AC/DC electronic || DC AC/DC electronic
- Device Presentation
- preassembled with reversing power busbar
- Device Short Name
- LC2D
- Electrical Durability
- 2.4 Mcycles 8 A AC-3 <= 440 V || 0.6 Mcycles 25 A AC-1 <= 440 V || 2.4 Mcycles 8 A AC-3e <= 440 V
- [Icw] Rated Short-Time Withstand Current
- 105 A 40 °C - 10 s power circuit || 210 A 40 °C - 1 s power circuit || 30 A 40 °C - 10 min power circuit || 61 A 40 °C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
- [Ie] Rated Operational Current
- 9 A 60 °C) <= 440 V AC AC-3 power circuit || 25 A 60 °C) <= 440 V AC AC-1 power circuit || 9 A 60 °C) <= 440 V AC AC-3e power circuit
- Interlocking Type
- mechanical
- Irms Rated Making Capacity
- 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C signalling circuit || 25 A 60 °C power circuit
- Maximum Horse Power Rating
- 0.33 hp 115 V at AC 60 Hz for 1 phase || 1 hp 230/240 V at AC 60 Hz for 1 phase || 2 hp 200/208 V at AC 60 Hz for 3 phase || 2 hp 230/240 V at AC 60 Hz for 3 phase || 5 hp 460/480 V at AC 60 Hz for 3 phase || 7.5 hp 575/600 V at AC 60 Hz for 3 phase
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 15 Mcycles
- Motor Power Kw
- 2.2 kW 220...230 V AC 50 Hz || 4 kW 380...400 V AC 50 Hz || 4 kW 415 V AC 50 Hz || 4 kW 440 V AC 50 Hz || 5.5 kW 500 V AC 50 Hz || 5.5 kW 660...690 V AC 50 Hz
- Mounting Support
- rail || plate
- Operating Time
- 45...55 ms closing || 20...90 ms opening
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Poles Description
- 3P
- Power Dissipation Per Pole
- 1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Product Name
- Tesys Deca green || TeSys Deca
- Product Or Component Type
- reversing contactor
- Protective Cover
- with
- Range
- TeSys || TeSys Deca
- Rated Breaking Capacity
- 250 A 440 V power circuit IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Tightening Torque
- power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- [Uc] Control Circuit Voltage
- 24...60 V AC 50/60 Hz || 24...60 V DC
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1
- Utilisation Category
- AC-3 || AC-1 || AC-3e
