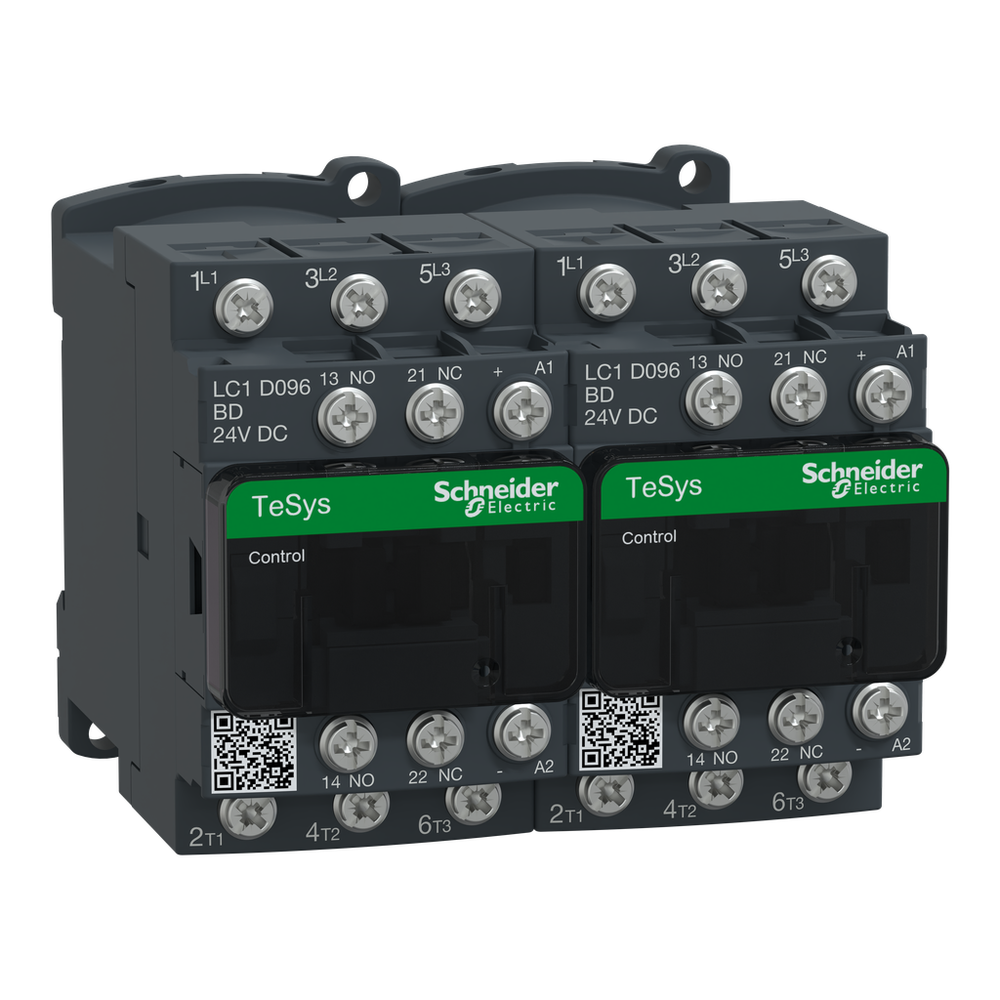

Schneider Electric LC2D096BD

Complementary

• Auxiliary Contacts Type
  • mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
• Coil Technology
  • built-in bidirectional peak limiting diode suppressor
• Control Circuit Voltage Limits
  • 0.1...0.25 Uc -40-70 °C drop-out DC || 0.7...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC
• Hold-In Power Consumption In W
  • 5.4-5.4 W 20 °C
• Inrush Power In W
  • 5.4-5.4 W 20 °C)
• Insulation Resistance
  • > 10 MOhm signalling circuit
• Minimum Switching Current
  • 5 mA signalling circuit
• Minimum Switching Voltage
  • 17 V signalling circuit
• Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Signalling Circuit Frequency
  • 25...400 Hz
• Time Constant
  • 28 ms

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -40-60 °C || 60-70 °C with derating
• Ambient Air Temperature For Storage
  • -60-80 °C
• Climatic Withstand
  • IACS E10 || IEC 60947-1 Annex Q category D
• Depth
  • 95 mm
• Fire Resistance
  • 850 °C IEC 60695-2-1
• Flame Retardance
  • V1 conforming to UL 94
• Height
  • 77 mm
• Ip Degree Of Protection
  • IP20 front face IEC 60529
• Mechanical Robustness
  • vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
• Net Weight
  • 1.017 kg
• Operating Altitude
  • 0...9842.52 ft (0...3000 m)
• Pollution Degree
  • 3
• Protective Treatment
  • TH IEC 60068-2-30
• Width
  • 90 mm

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI1102030EN
• Environmental Disclosure
  • ENVPEP110230EN
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Associated Fuse Rating
  • 25 A gG <= 690 V type 1 power circuit || 20 A gG <= 690 V type 2 power circuit || 10 A gG signalling circuit IEC 60947-5-1
• Auxiliary Contact Composition
  • 1 NO + 1 NC
• Average Impedance
  • 2.5 mOhm - Ith 25 A 50 Hz power circuit
• Connections - Terminals
  • control circuit lugs-ring terminals 8 mm) || power circuit lugs-ring terminals 8 mm)
• Contactor Application
  • resistive load || motor control
• Control Circuit Type
  • DC standard
• Device Presentation
  • preassembled with reversing power busbar
• Device Short Name
  • LC2D
• Electrical Durability
  • 0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V
• [Icw] Rated Short-Time Withstand Current
  • 30 A 40 °C - 10 min power circuit || 61 A 40 °C - 1 min power circuit || 105 A 40 °C - 10 s power circuit || 210 A 40 °C - 1 s power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
• [Ie] Rated Operational Current
  • 9 A 60 °C) <= 440 V AC AC-3 power circuit || 25 A 60 °C) <= 440 V AC AC-1 power circuit
• Interlocking Type
  • mechanical
• Irms Rated Making Capacity
  • 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
• [Ith] Conventional Free Air Thermal Current
  • 10 A 60 °C signalling circuit || 25 A 60 °C power circuit
• Maximum Horse Power Rating
  • 0.5 hp 115 V at AC 60 Hz for 1 phase || 1 hp 230/240 V at AC 60 Hz for 1 phase || 2 hp 200/208 V at AC 60 Hz for 3 phase || 2 hp 230/240 V at AC 60 Hz for 3 phase || 5 hp 460/480 V at AC 60 Hz for 3 phase || 7.5 hp 575/600 V at AC 60 Hz for 3 phase
• Maximum Operating Rate
  • 3600 cyc/h 60 °C
• Mechanical Durability
  • 30 Mcycles
• Motor Power Kw
  • 2.2 kW 220...230 V AC 50-60 Hz || 4 kW 380...400 V AC 50-60 Hz || 4 kW 415 V AC 50-60 Hz || 4 kW 440 V AC 50-60 Hz || 5.5 kW 500 V AC 50-60 Hz || 5.5 kW 660...690 V AC 50-60 Hz
• Mounting Support
  • rail || plate
• Operating Time
  • 53.55...72.45 ms closing || 16...24 ms opening
• Overvoltage Category
  • III
• Pole Contact Composition
  • 3 NO
• Poles Description
  • 3P
• Power Dissipation Per Pole
  • 0.2 W AC-3 || 1.56 W AC-1 || 0.2 W AC-3e
• Product Certifications
  • DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA
• Product Name
  • TeSys D || TeSys Deca
• Product Or Component Type
  • reversing contactor
• Protective Cover
  • with
• Range
  • TeSys || TeSys Deca
• Rated Breaking Capacity
  • 250 A 440 V power circuit IEC 60947
• Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Standards
  • CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
• Tightening Torque
  • control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
• [Uc] Control Circuit Voltage
  • 24 V DC
• [Ue] Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV IEC 60947
• [Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
• Utilisation Category
  • AC-1 || AC-3 || AC-3e
