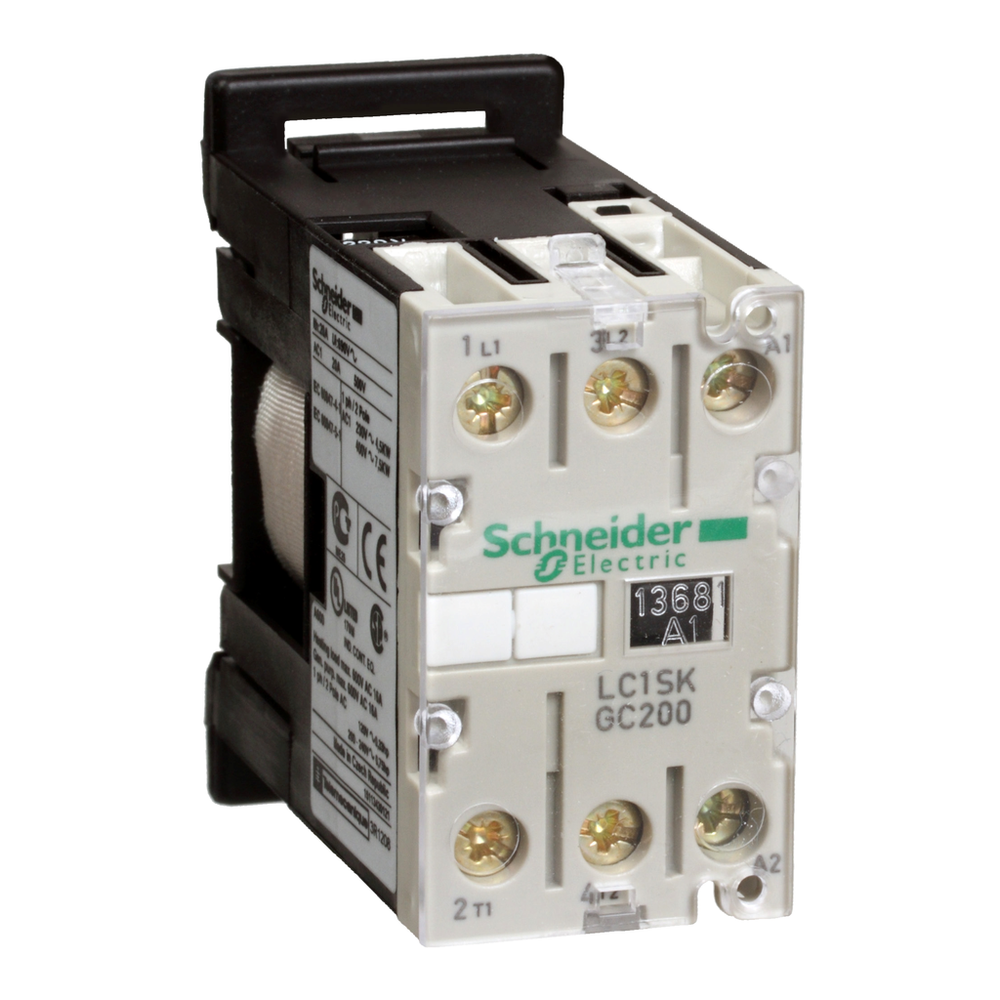

Schneider Electric LC1SKGC200M7
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 220V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 5A, 220V AC coil
Schneider Electric LC1SKGC200M7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 20 A gI <= 440 V power circuit
- Average Impedance
- 4 mOhm - Ith 20 A 50 Hz power circuit
- Connections - Terminals
- connector 1 1.5-6 mm²solid || connector 2 1.5-4 mm²solid || connector 1 0.5-6 mm²flexible without cable end || connector 2 0.35-2.5 mm²flexible without cable end || connector 1 0.35-6 mm²flexible with cable end || connector 2 0.35-1.5 mm²flexible with cable end
- Control Circuit Type
- AC 50/60 Hz
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 50/60 Hz 55 °C) || drop-out 0.2...0.75 Uc 50/60 Hz 55 °C)
- Heat Dissipation
- 1.4-1.4 W 50/60 Hz
- Hold-In Power Consumption In Va
- 4.2-4.2 VA 50/60 Hz 20 °C)
- [Icw] Rated Short-Time Withstand Current
- 40 A 55 °C power circuit
- Inrush Power In Va
- 16-16 VA 50/60 Hz 20 °C)
- Irms Rated Making Capacity
- 50 A AC NF C 63-110 || 50 A AC IEC 60947
- [Ith] Conventional Free Air Thermal Current
- 20 A 55 °C power circuit
- Maximum Operating Rate
- 1200 cyc/h
- Mechanical Durability
- 10 Mcycles
- Mounting Support
- rail
- Operating Time
- 6...8 ms coil de-energisation and NO opening || 7...14 ms coil energisation and NO closing
- Product Certifications
- CB Scheme || CE || UKCA || EAC || cULus
- Rated Breaking Capacity
- 40 A <= 400 V NF C 63-110 || 40 A <= 400 V IEC 60947
- Standards
- EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Tightening Torque
- power circuit 0.8 N.m connector pozidriv No 1
- [Uc] Control Circuit Voltage
- 220 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage
- power circuit 690 V BS 5424 || power circuit 690 V IEC 60947 || power circuit 690 V UL 508 || power circuit 690 V VDE 0110 group C || power circuit 690 V CSA C22.2 No 14
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -50-70 °C
- Depth
- 55.5 mm
- Height
- 56 mm
- Ip Degree Of Protection
- IP2X VDE 0106
- Net Weight
- 0.132 kg
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Protective Treatment
- TC IEC 60068 || TC DIN 50015
- Width
- 27 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1503003EN
- Environmental Disclosure
- ENVPEP1503003EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- motor control || resistive load
- Device Short Name
- LC1SKGC
- [Ie] Rated Operational Current
- 5 A<= 400 V AC AC-3 || 20 A 50 °C) AC AC-1
- Pole Contact Composition
- 2 NO
- Poles Description
- 2P
- Product Name
- TeSys SK
- Product Or Component Type
- mini contactor
- Range
- TeSys
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Utilisation Category
- AC-1 || AC-3
