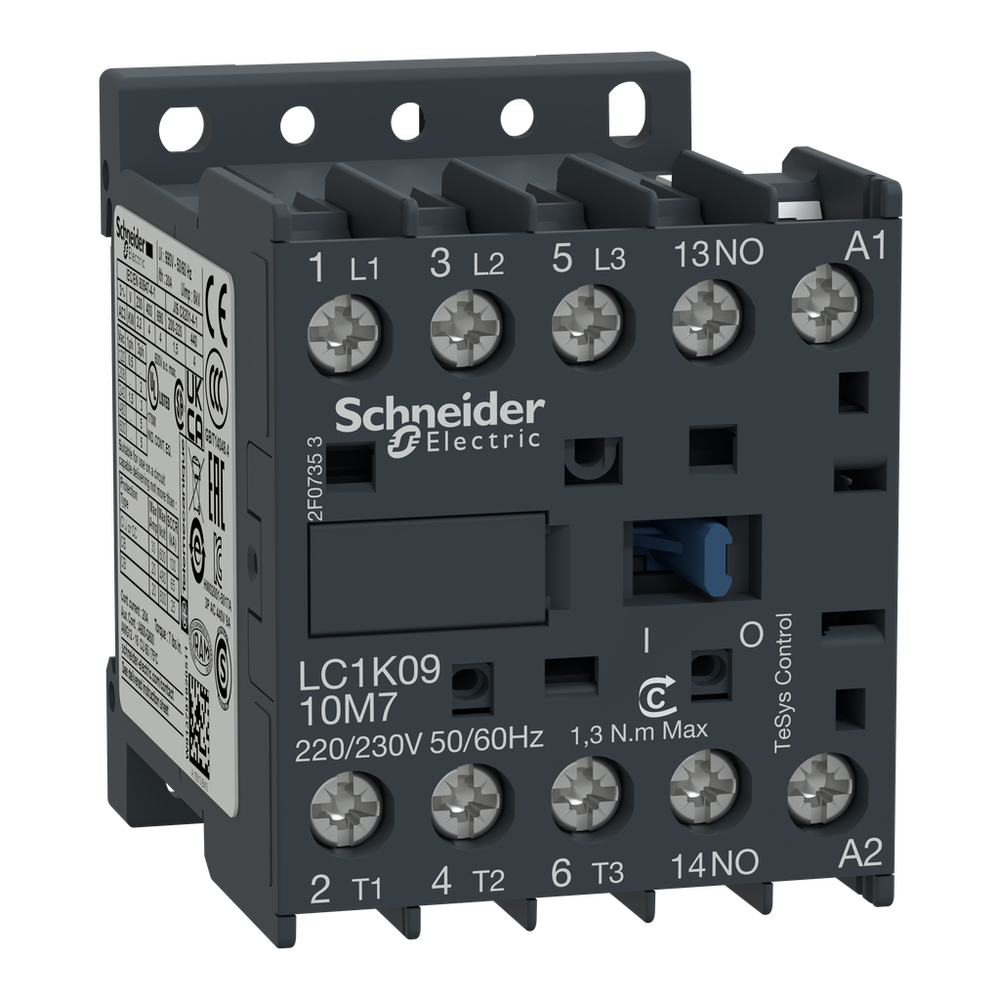

Schneider Electric LC1K0910B7TQ

Complementary

• Associated Fuse Rating
  • 10 A gG control circuit IEC 60947 || 10 A gG control circuit VDE 0660 || 25 A gG <= 440 V power circuit
• Auxiliary Contact Composition
  • 1 NO
• Average Impedance
  • 3 mOhm - Ith 20 A 50 Hz power circuit
• Coil Technology
  • without built-in bidirectional peak limiting diode suppressor
• Connections - Terminals
  • screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
• Control Circuit Type
  • AC 50/60 Hz standard
• Control Circuit Voltage Limits
  • operational 0.8...1.15 Uc 50/60 Hz 50 °C) || drop-out >= 0.20 Uc 50/60 Hz 50 °C)
• Depth
  • 57 mm
• Electrical Durability
  • 1.3 Mcycles 9 A AC-3 <= 440 V || 1.3 Mcycles 9 A AC-3e <= 440 V || 0.16 Mcycles 20 A AC-1 <= 690 V || 0.02 Mcycles 54 A AC-4 <= 440 V
• Height
  • 58 mm
• Hold-In Power Consumption In Va
  • 4.5-4.5 VA 50/60 Hz 20 °C)
• [Icw] Rated Short-Time Withstand Current
  • 90 A 50 °C - 1 s power circuit || 85 A 50 °C - 5 s power circuit || 80 A 50 °C - 10 s power circuit || 60 A 50 °C - 30 s power circuit || 45 A 50 °C - 1 min power circuit || 40 A 50 °C - 3 min power circuit || 20 A 50 °C - >= 15 min power circuit || 80 A - 1 s signalling circuit || 90 A - 500 ms signalling circuit || 110 A - 100 ms signalling circuit
• [Ie] Rated Operational Current
  • 9 A 60 °C) <= 440 V AC AC-3 power circuit || 9 A 60 °C) <= 440 V AC AC-3e power circuit || 20 A 60 °C) <= 690 V AC AC-1 power circuit
• Inrush Power In Va
  • 30-30 VA 20 °C)
• Insulation Resistance
  • > 10 MOhm control circuit
• Irms Rated Making Capacity
  • 110 A AC power circuit IEC 60947 || 110 A AC signalling circuit IEC 60947
• [Ith] Conventional Free Air Thermal Current
  • 20 A 60 °C power circuit || 10 A 50 °C signalling circuit
• Maximum Operating Rate
  • 3600 cyc/h
• Mechanical Durability
  • 10 Mcycles
• Minimum Switching Current
  • 5 mA control circuit
• Minimum Switching Voltage
  • 17 V control circuit
• Motor Power Kw
  • 2.2 kW 220...230 V AC 50/60 Hz AC-3 || 4 kW 380...415 V AC 50/60 Hz AC-3 || 4 kW 440/690 V AC 50/60 Hz AC-3 || 2.2 kW 220...230 V AC 50/60 Hz AC-3e || 4 kW 380...415 V AC 50/60 Hz AC-3e || 4 kW 440/690 V AC 50/60 Hz AC-3e || 2.2 kW 220...230 V AC 50/60 Hz AC-4 || 4 kW 380...415 V AC 50/60 Hz AC-4 || 4 kW 440/690 V AC 50/60 Hz AC-4
• Mounting Support
  • rail || plate
• Net Weight
  • 0.18 kg
• Operating Time
  • 10...20 ms coil de-energisation and NO opening || 15...25 ms coil de-energisation and NC opening || 10...20 ms between energisation of coil and closing of NO contact || 5...15 ms coil energisation and NC opening
• Pole Contact Composition
  • 3 NO
• Poles Description
  • 3P
• Rated Breaking Capacity
  • 110 A 220...230 V IEC 60947 || 110 A 380...400 V IEC 60947 || 110 A 415 V IEC 60947 || 110 A 440 V IEC 60947 || 80 A 500 V IEC 60947 || 70 A 660...690 V IEC 60947
• Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• [Uc] Control Circuit Voltage
  • 24 V AC 50/60 Hz
• [Ue] Rated Operational Voltage
  • power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
• [Uimp] Rated Impulse Withstand Voltage
  • 8 kV
• [Ui] Rated Insulation Voltage
  • control circuit 690 V BS 5424 || control circuit 690 V IEC 60947 || power circuit 690 V BS 5424 || power circuit 690 V IEC 60947 || power circuit 690 V NF C 20-040 || control circuit 750 V VDE 0110 group C || power circuit 750 V VDE 0110 group C || control circuit 600 V CSA C22.2 No 14 || power circuit 600 V UL 508 CSA C22.2 No 14
• Utilisation Category
  • AC-3 || AC-3e || AC-1 || AC-4
• Width
  • 45 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Storage
  • -50-80 °C
• Fire Resistance
  • 850 °C IEC 60695-2-1
• Flame Retardance
  • class C2 conforming to NF F 16-101 || class C2 conforming to NF F 16-102 || V1 conforming to UL 94
• Operating Altitude
  • 6561.68 ft (2000 m) without derating
• Product Certifications
  • CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
• Standards
  • EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Pro-active China RoHS declaration (out of China RoHS legal scope)
• Circularity Profile
  • ENVEOLI1503003EN
• Environmental Disclosure
  • ENVPEP1503003EN
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Contactor Application
  • motor control || resistive load
• Device Short Name
  • LC1K
• Product Or Component Type
  • contactor
• Range
  • TeSys
