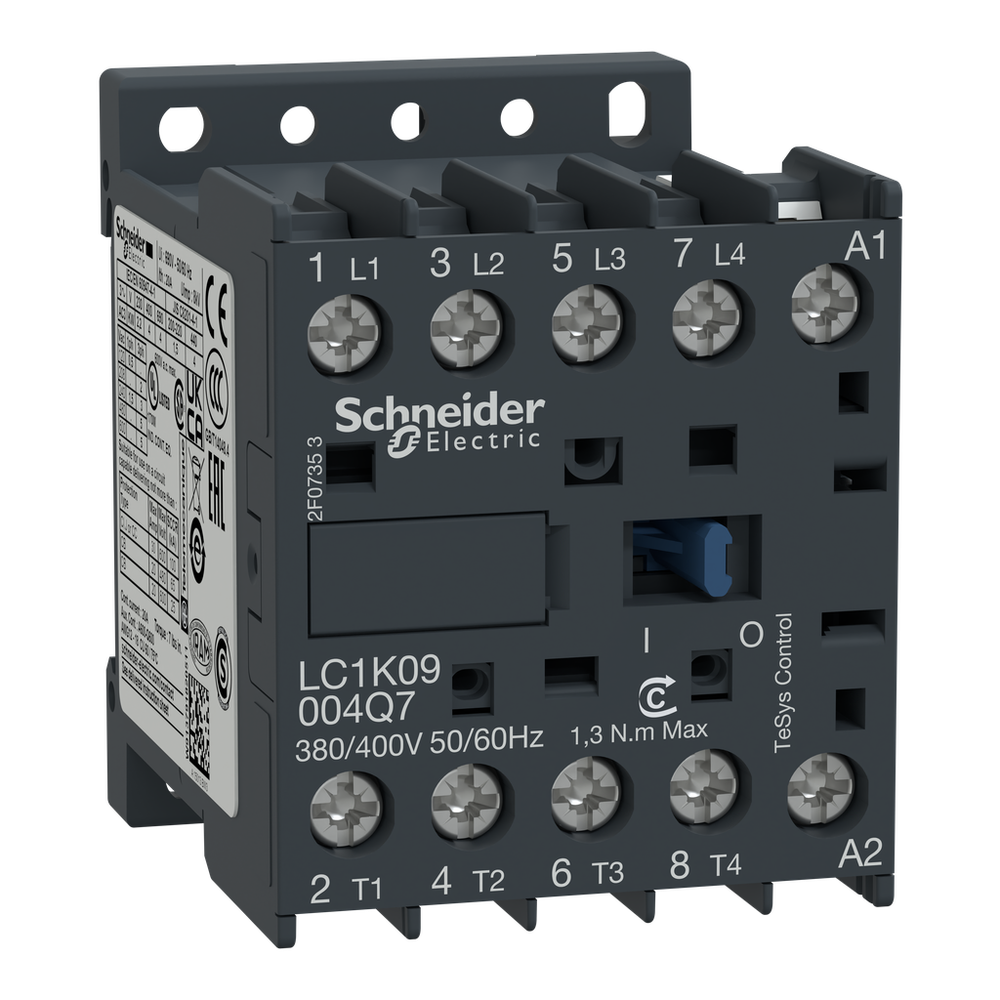

Schneider Electric LC1K09004E7
Description
Schneider Electric LC1K09004E7 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 25 A gG <= 440 V power circuit || 25 A aM power circuit
- Average Impedance
- 3 mOhm - Ith 20 A 50 Hz power circuit
- Connections - Terminals
- screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
- Control Circuit Type
- AC 50/60 Hz
- Control Circuit Voltage Limits
- operational 0.8...1.15 Uc 50 °C) || drop-out >= 0.20 Uc 50 °C)
- Depth
- 57 mm
- Electrical Durability
- 0.16 Mcycles 20 A AC-1 <= 690 V
- Heat Dissipation
- 1.3-1.3 W
- Height
- 58 mm
- Hold-In Power Consumption In Va
- 4.5-4.5 VA 20 °C)
- [Icw] Rated Short-Time Withstand Current
- 90 A 50 °C - 1 s power circuit || 85 A 50 °C - 5 s power circuit || 80 A 50 °C - 10 s power circuit || 60 A 50 °C - 30 s power circuit || 45 A 50 °C - 1 min power circuit || 40 A 50 °C - 3 min power circuit || 20 A 50 °C - >= 15 min power circuit
- [Ie] Rated Operational Current
- 20 A 60 °C) <= 690 V AC AC-1 power circuit
- Inrush Power In Va
- 30-30 VA 20 °C)
- Irms Rated Making Capacity
- 110 A AC power circuit IEC 60947
- [Ith] Conventional Free Air Thermal Current
- 20 A 60 °C power circuit || 10 A 50 °C signalling circuit
- Maximum Operating Rate
- 3600 cyc/h
- Mechanical Durability
- 10 Mcycles
- Mechanical Robustness
- shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Mounting Support
- plate || rail
- Net Weight
- 0.18 kg
- Operating Time
- 10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing
- Overvoltage Category
- III
- Pole Contact Composition
- 4 NO
- Poles Description
- 4P
- Rated Breaking Capacity
- 110 A 220...230 V IEC 60947 || 110 A 380...400 V IEC 60947 || 110 A 415 V IEC 60947 || 110 A 440 V IEC 60947 || 80 A 500 V IEC 60947 || 70 A 660...690 V IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Signalling Circuit Frequency
- <= 400 Hz
- Tightening Torque
- 0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2
- [Uc] Control Circuit Voltage
- 48 V AC 50/60 Hz
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA C22.2 No 14
- Utilisation Category
- AC-1
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Storage
- -50-80 °C
- Flame Retardance
- V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
- Ip Degree Of Protection
- IP2X VDE 0106
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Protective Treatment
- TC IEC 60068 || TC DIN 50016
- Standards
- EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI1503003EN
- Environmental Disclosure
- ENVPEP1503003EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- resistive load
- Device Application
- control
- Device Short Name
- LC1K
- Product Or Component Type
- contactor
- Range
- TeSys
