Schneider Electric LC1G500EHEN
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

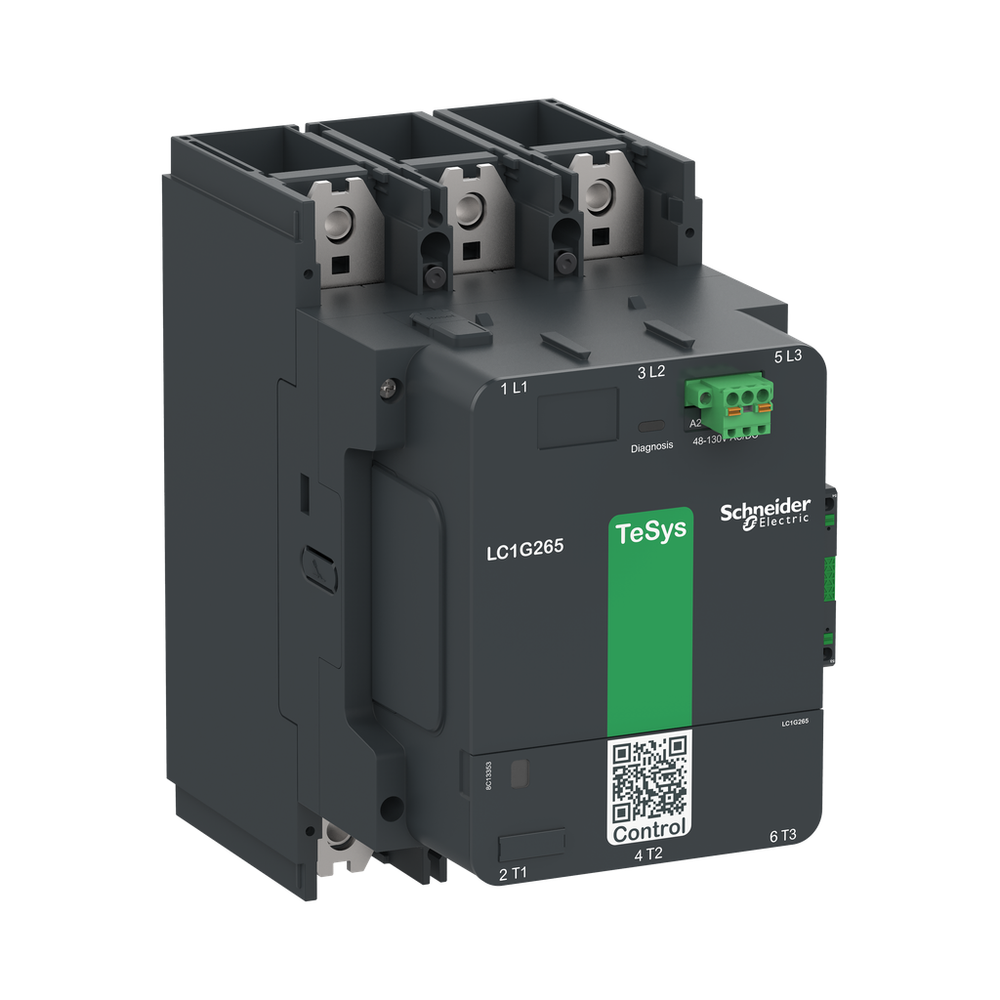

TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 500A 315kW@440V. It provides a 48-130V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 140mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.Contactor, high power, TeSys Giga, standard version, 3 pole/NO, AC-3 <=440V 500A, 48-130VAC/DC coil
Schneider Electric LC1G500EHEN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 500 A aM <= 440 V motor || 400 A aM <= 690 V motor || 800 A gG <= 690 V
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Average Impedance
- 0.00008 Ohm
- Coil Technology
- built-in bidirectional peak limiting
- Compatibility Code
- LC1G
- Connection Pitch
- 45 mm
- Connections - Terminals
- power circuit bar 2 32 x 10 mm || power circuit lugs-ring terminals 1 185-185 mm² || power circuit bolted connection || control circuit push-in 1 0.2-2.5 mm² solid stranded without cable end || control circuit push-in 1 0.25-2.5 mm² flexible with cable end || control circuit push-in 2 0.5-1.0 mm² with cable end || control circuit push-in 0.75-2.5 mm² solid stranded without cable end || control circuit push-in 0.75-2.5 mm² flexible with cable end
- Depth
- 226 mm
- Height
- 225 mm
- Hold-In Power Consumption In Va
- 17.6-17.6 VA
- Hold-In Power Consumption In W
- 7.8-7.8 W
- [Icw] Rated Short-Time Withstand Current
- 4.0 kA - 10 s || 2.8 kA - 30 s || 2.2 kA - 1 min || 1.5 kA - 3 min || 1.2 kA - 10 min
- Inrush Power In Va
- 965-965 VA
- Inrush Power In W
- 760 W
- Irms Rated Making Capacity
- 5090 A 440 V
- [Ith] Conventional Free Air Thermal Current
- 700 A 40 °C
- Maximum Horse Power Rating
- 150 hp 200/208 V at 60 Hz || 200 hp 230/240 V at 60 Hz || 400 hp 460/480 V at 60 Hz || 450 hp 575/600 V at 60 Hz
- Maximum Operating Rate
- 600 cyc/h AC-3 || 600 cyc/h AC-3e || 300 cyc/h AC-1 || 150 cyc/h AC-4
- Mechanical Durability
- 8 Mcycles
- Motor Power Kw
- 147 kW 230 V AC 50/60 Hz AC-3e) || 250 kW 400 V AC 50/60 Hz AC-3e) || 250 kW 415 V AC 50/60 Hz AC-3e) || 280 kW 440 V AC 50/60 Hz AC-3e) || 315 kW 500 V AC 50/60 Hz AC-3e) || 355 kW 690 V AC 50/60 Hz AC-3e) || 335 kW 1000 V AC 50/60 Hz AC-3e) || 160 kW 230 V AC 50/60 Hz AC-3) || 250 kW 400 V AC 50/60 Hz AC-3) || 250 kW 415 V AC 50/60 Hz AC-3) || 315 kW 440 V AC 50/60 Hz AC-3) || 355 kW 500 V AC 50/60 Hz AC-3) || 355 kW 690 V AC 50/60 Hz AC-3) || 335 kW 1000 V AC 50/60 Hz AC-3) || 150 kW 230 V AC 50/60 Hz AC-4) || 250 kW 400 V AC 50/60 Hz AC-4) || 250 kW 415 V AC 50/60 Hz AC-4) || 295 kW 440 V AC 50/60 Hz AC-4) || 295 kW 500 V AC 50/60 Hz AC-4) || 355 kW 690 V AC 50/60 Hz AC-4) || 280 kW 1000 V AC 50/60 Hz AC-4)
- Mounting Support
- plate
- Net Weight
- 7.5 kg
- Operating Time
- 40...70 ms closing || 15...50 ms opening
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Power Dissipation Per Pole
- 40 W AC-1 - Ith 700 A || 20 W AC-3 - Ith 500 A
- Product Certifications
- CB Scheme || CCC || cULus || EAC || CE || UKCA || EU-RO-MR by DNV-GL
- Rated Breaking Capacity
- 4600 A 440 V
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 || JIS C8201-5-1
- Tightening Torque
- 35 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 1000 V
- Width
- 140 mm
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Color
- dark grey
- Ip Degree Of Protection
- IP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
- Mechanical Robustness
- vibrations 5-300 Hz 2 gn contactor open || vibrations 5-300 Hz 4 gn contactor closed || shocks 10 gn 11 ms contactor open || shocks 15 gn 11 ms contactor closed
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
- Protective Treatment
- TH
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105013
- Environmental Disclosure
- ENVPEP2105013
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Contactor Application
- power switching || motor control
- Control Circuit Voltage Limits
- operational 0.8 Uc Min...1.1 Uc Max 60 °C) || drop-out 0.1 Uc Max...0.45 Uc Min 60 °C)
- Device Short Name
- LC1G
- [Ie] Rated Operational Current
- 700 A 40 °C) <= 1000 V AC-1 || 500 A 60 °C) <= 400 V AC-3
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys
- Range Of Product
- TeSys Giga
- [Uc] Control Circuit Voltage
- 48...130 V AC 50/60 Hz || 48...130 V DC
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Utilisation Category
- AC-1 || AC-3 || AC-3e || AC-4 || AC-5a || AC-5b || AC-6a || AC-6b || AC-8b || AC-8a || DC-1 || DC-3 || DC-5
