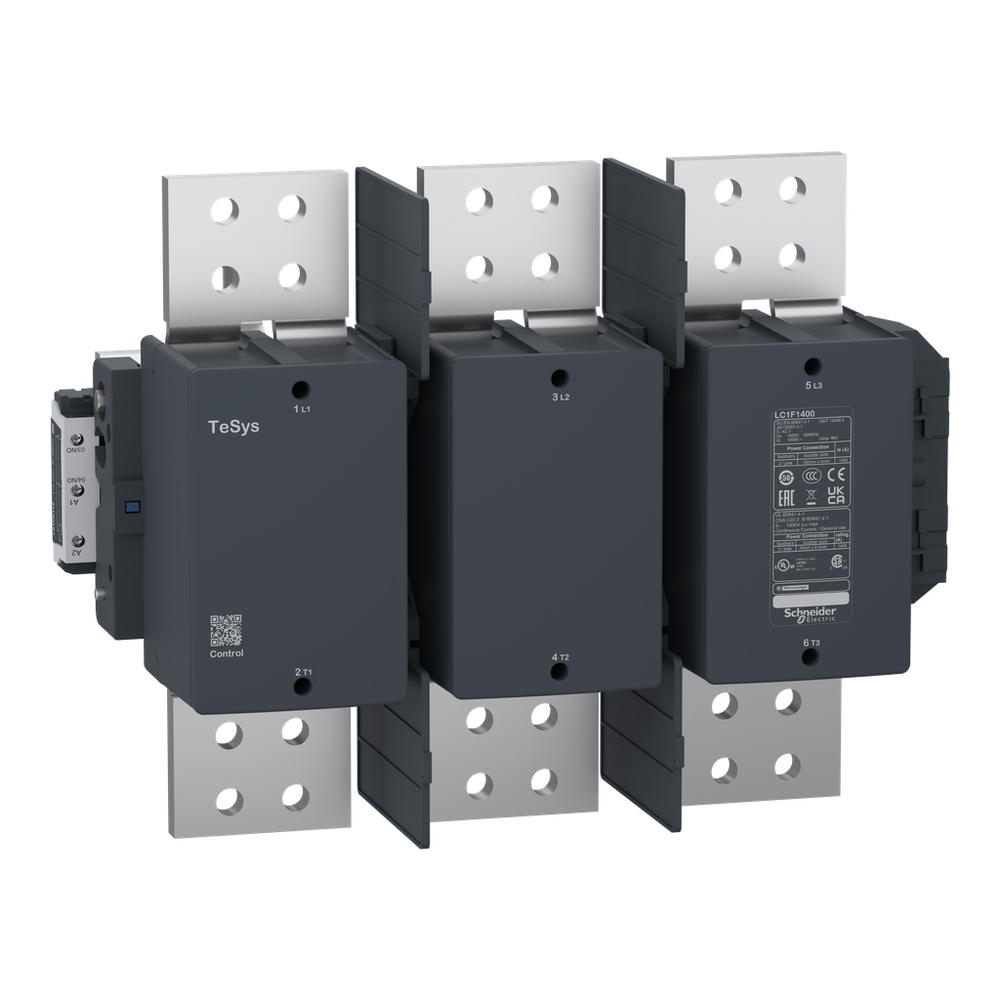

Schneider Electric LC1F1400

Complementary

• Associated Fuse Rating
  • 1600 A gG <= 440 V IEC 60947-4-1
• Average Impedance
  • 0.1 mOhm - Ith 1400 A 50 Hz
• Connections - Terminals
  • power circuit bar 2 || power circuit bolted connection || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm²
• Control Circuit Voltage Limits
  • operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil || drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil || operational: 0.85...1.1 Uc DC with LX4 coil || drop-out: 0.2...0.35 Uc DC with LX4 coil
• Heat Dissipation
  • 18-18 W
• Hold-In Power Consumption In Va
  • 29-37 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 8-10 VA (at 20 °C)with LX4 coil
• [Icw] Rated Short-Time Withstand Current
  • 8000 A 40 °C - 10 s || 6000 A 40 °C - 30 s || 4500 A 40 °C - 1 min || 4000 A 40 °C - 3 min || 2600 A 40 °C - 10 min
• Inrush Power In Va
  • 1600-2400 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 2000-2200 VA (at 20 °C)with LX4 coil
• Irms Rated Making Capacity
  • 2100 A AC IEC 60947-4-1
• [Ith] Conventional Free Air Thermal Current
  • 1400 A 40 °C
• Maximum Operating Rate
  • 600 cyc/h 55 °C
• Mechanical Durability
  • 0.5 Mcycles
• Mounting Support
  • plate
• Operating Time
  • 40...50 ms closing with LX1/LX9 coil || 100...170 ms opening with LX1/LX9 coil || 50...60 ms closing with LX4 coil || 40...50 ms opening with LX4 coil
• Overvoltage Category
  • III
• Power Dissipation Per Pole
  • 150 W AC-1
• Product Certifications
  • CSA || EAC || CB Scheme || CCC || UL || UKCA
• Rated Breaking Capacity
  • 2100 A IEC 60947-4-1
• Standards
  • EN 60947-4-1 || IEC 60947-1 || JIS C8201-4-1 || IEC 60947-4-1 || EN 60947-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
• Tightening Torque
  • power circuit 58 N.m || control circuit 1.2 N.m
• [Uc] Control Circuit Voltage
  • 100...500 V AC 40...400 Hz with LX1/LX9 coil || 110...440 V DC with LX4 coil
• [Uimp] Rated Impulse Withstand Voltage
  • 8 kV
• [Ui] Rated Insulation Voltage
  • 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C || 1000 V UL 60947-4-1

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -5-40 °C
• Ambient Air Temperature For Storage
  • -60-80 °C
• Depth
  • 238.6 mm
• Height
  • 332 mm
• Mechanical Robustness
  • vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open6 Gn for 1/2 sine wave (11 ms) || shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
• Net Weight
  • 29 kg
• Operating Altitude
  • 9842.52 ft (3000 m) without derating
• Permissible Ambient Air Temperature Around The Device
  • -40-60 °C
• Protective Treatment
  • TH
• Width
  • 438 mm

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile
  • ENVEOLI1102006EN
• Environmental Disclosure
  • ENVPEP110206EN
• Eu Rohs Directive
  • Compliant
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Contactor Application
  • resistive load
• Device Short Name
  • LC1F
• [Ie] Rated Operational Current
  • 1400 A 40 °C) <= 440 V AC AC-1
• Pole Contact Composition
  • 3 NO
• Poles Description
  • 3P
• Product Name
  • TeSys F
• Product Or Component Type
  • contactor
• Range
  • TeSys
• [Ue] Rated Operational Voltage
  • <= 1000 V AC 50/60 Hz || <= 460 V DC
• Utilisation Category
  • AC-1
